BOA2P-10D10-40Y-B
BOA2P-10D10-40Y-B
- All mounting hardware included:
- 12 foot aircraft cables, ceiling canopies and height adjusting cable grippers.
- 3-step binning for color consistency
- 0-10V dimming, standard
- 100,000-Hour LED lifespan
Performance
| Watts | 10W |
| Color Temp | 3000K (Warm) |
| Lumens | 700 lm |
| Efficacy | 72.9 lm/W |
| Color Accuracy | 86 CRI |
| L70 Lifespan | 100,000 Hours |
| Type | Constant Current |
| 120V | 0.08A |
| 208V | 0.06A |
| 240V | 0.05A |
| 277V | 0.05A |
| Input Watts | 9.6W |

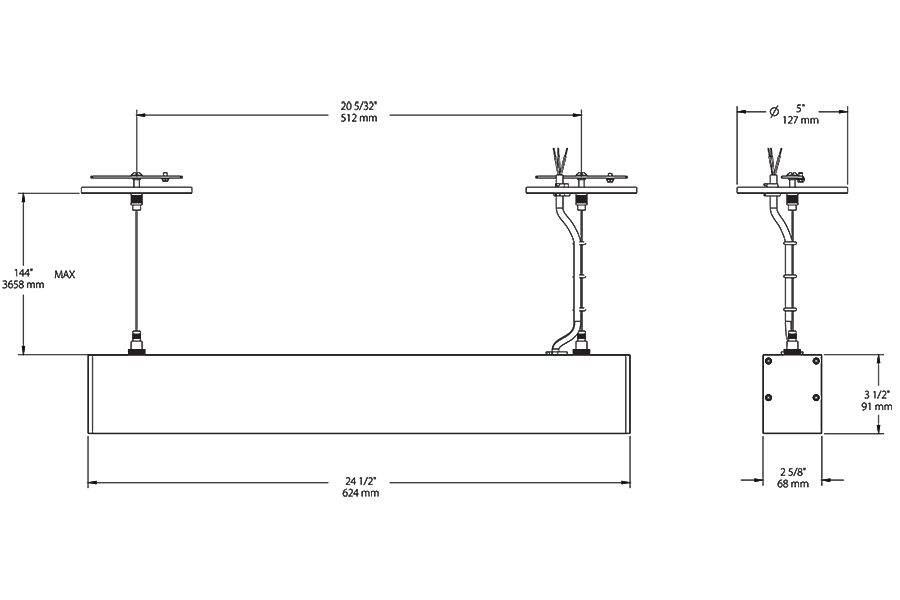

Dimensions
Weight: 1.8 lbs
Technical Specifications
Compliance
UL Listed
Suitable for damp locations. Recommended for indoor use only.
IESNA LM-79 & LM-80 Testing
RAB LED luminaires and LED components have been tested by an independent laboratory in accordance with IESNA LM-79 and LM-80.
Electrical
Drivers
120 - 277V, 0 - 10V dimming down to 10%, 93.7% power factor, 1 kV surge protection
Dimming Driver
Driver includes dimming control wiring for 0-10V dimming systems. Requires separate 0-10V DC dimming circuit. Dims down to 10%.
Electrical Connection
Includes 5 conductor 300V rated 12' long electrical cable
Optical
Reflector
40° reflector
Aperture
2.5"
Construction
Housing
Precision extruded aluminum
Lens
High-transmission, microprismatic acrylic lens for smooth light distribution and uniformity
Finish
Formulated for high durability and long-lasting color
Green Technology
Mercury and UV free. RoHS-compliant components.
LED Characteristics
LEDs
Discrete LEDs on PCB board
Color Consistency
3-step MacAdam Ellipse binning to achieve consistent fixture-to-fixture color
Color Stability
LED color temperature is warrantied to shift no more than 200K in color temperature over a 5-year period
Color Uniformity
RAB's range of Correlated Color Temperature follows the guidelines of the American National Standard for Specifications for the Chromaticity of Solid State Lighting (SSL) Products, ANSI C78.377-2017.
Performance
Lifespan
100,000-Hour LED lifespan based on IES LM-80 results and TM-21 calculations
Other
Warranty
RAB warrants that our LED products will be free from defects in materials and workmanship for a period of five (5) years from the date of delivery to the end user, including coverage of light output, color stability, driver performance and fixture finish. RAB's warranty is subject to all terms and conditions found at rablighting.com/warranty.
Special Order
Available in 6-8 weeks by special request
Installation
Mounting
12' of aircraft cable provided with cable grippers for easy adjustment after installation
