BOA4S-40D10-40N-B

Spec Sheet IES File LM79 Instructions Spec Sheet EZ Layout

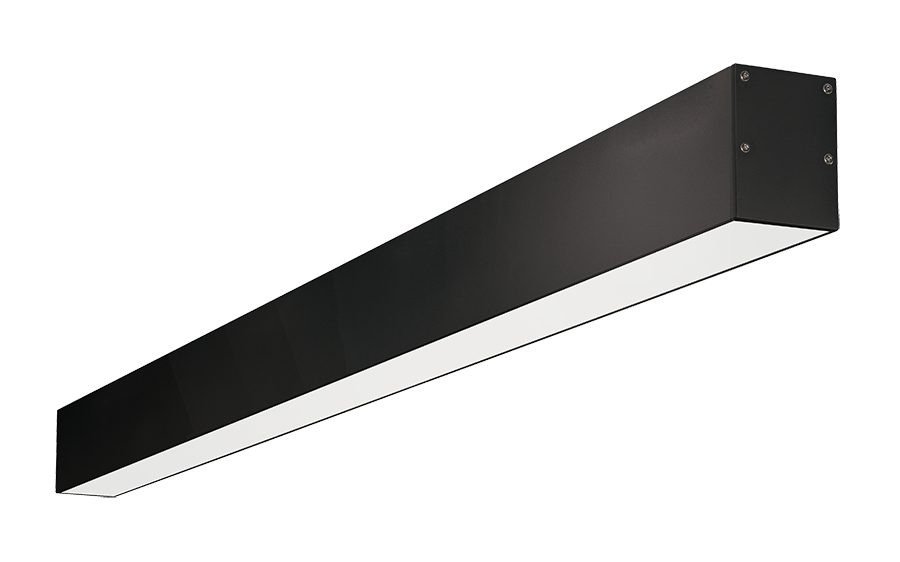

BOA4S-40D10-40N-B

Offers a clean flush mount directly to a ceiling or a wall

3-step binning for color consistency

0-10V dimming, standard

100,000-Hour LED lifespan

View Technical Specs

View Price & Availability

Performance

Watts	40W
Color Temp	4000K (Neutral)
Lumens	2,869 lm
Efficacy	83.6 lm/W
Color Accuracy	84 CRI
L70 Lifespan	100,000 Hours

Type	Constant Current
120V	0.28A
208V	0.15A
240V	0.14A
277V	0.13A
Input Watts	34.3W

EZ-Layout

Create Custom Lighting Layout

Dimensions

Weight: 13.7 lbs

Technical Specifications

Compliance

UL Listed

Suitable for damp locations. Recommended for indoor use only.

IESNA LM-79 & LM-80 Testing

RAB LED luminaires and LED components have been tested by an independent laboratory in accordance with IESNA LM-79 and LM-80.

Optical

Reflector

40° reflector

Aperture

2.5"

Construction

Housing

Precision extruded aluminum

Lens

High-transmission, microprismatic acrylic lens for smooth light distribution and uniformity

Finish

Formulated for high durability and long-lasting color

Green Technology

Mercury and UV free. RoHS-compliant components.

LED Characteristics

LEDs

Discrete LEDs on PCB board

Color Consistency

3-step MacAdam Ellipse binning to achieve consistent fixture-to-fixture color

Color Stability

LED color temperature is warrantied to shift no more than 200K in color temperature over a 5-year period

Color Uniformity

RAB's range of Correlated Color Temperature follows the guidelines of the American National Standard for Specifications for the Chromaticity of Solid State Lighting (SSL) Products, ANSI C78.377-2017.

Performance

Lifespan

100,000-Hour LED lifespan based on IES LM-80 results and TM-21 calculations

Other

5-Year, No-Compromise Warranty

RAB warrants that our LED products will be free from defects in materials and workmanship for a period of five (5) years from the date of delivery to the end user, including coverage of light output, color stability, driver performance and fixture finish. RAB's warranty is subject to all terms and conditions found at rablighting.com/warranty.

Special Order

Available in 6-8 weeks by special request

Electrical

Drivers

120 - 277V, 0 - 10V dimming down to 10%, 93.7% power factor, 1 kV surge protection

Dimming Driver

Driver includes dimming control wiring for 0-10V dimming systems. Requires separate 0-10V DC dimming circuit. Dims down to 10%.

Installation

Mounting

For direct ceiling and wall mounting
