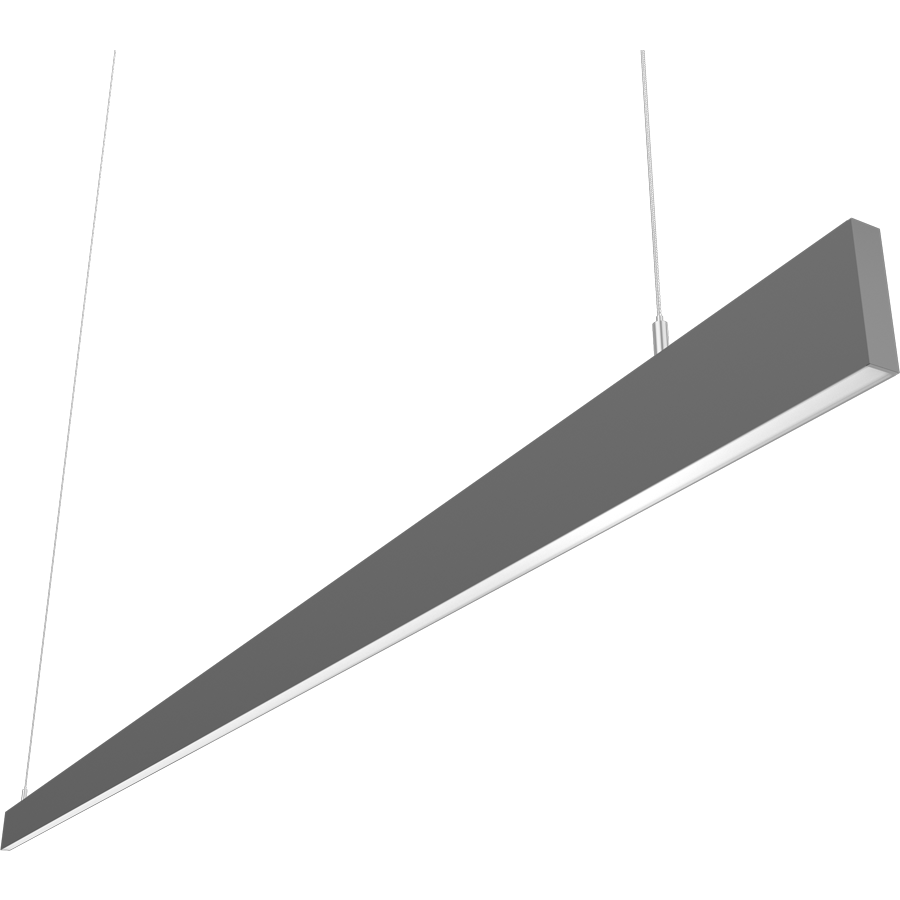

BOAE8PS
80W 3000/3500/4000K
- 100,000-Hour LED lifespan
- 0-10V dimming
- 5-Year, limited warranty
Performance
| Watts | 80/56/48/40/24W |
| Color Temp | 3000/3500/4000K |
| Lumens | 3410-10962 lm |
| Efficacy | 134.7-150 lm/W |
| Color Accuracy | 94-95 CRI |
| L70 Lifespan | 100,000 Hours |
| Type | Constant Current |
| 120V | 0.67A/0.49A/0.42A/0.35A/0.20A |
| 208V | 0.39A/0.28A/0.27A/0.24A/0.16A |
| 240V | 0.33A/0.25A/0.24A/0.20A/0.14A |
| 277V | 0.30A/0.23A/0.20A/0.18A/0.12A |
| Input Watts | 23.6-79.8W |
Dimensions
Weight: 6.6 lbs
Technical Specifications
Field Adjustability
Field Adjustable
Field Adjustable Light Output:
80/56/48/40/24W (factory default 80W)
Color Temperature Selectable:
3000K, 3500K and 4000K (factory default 3500K)
80/56/48/40/24W (factory default 80W)
Color Temperature Selectable:
3000K, 3500K and 4000K (factory default 3500K)
Compliance
UL Listed
Suitable for damp locations
IESNA LM-79 & LM-80 Testing
RAB LED luminaires and LED components have been tested by an independent laboratory in accordance with IESNA LM-79 and LM-80.
IP Rating
IP20
Electrical
Dimming Driver
Driver includes dimming control wiring for 0-10V dimming systems. Requires separate 0-10V DC dimming circuit. Dims down to 10%.
Surge Protection
1 kV L-L 2kV L/N-G
Continuous Runs
Maximum wattage for a continuous run should not exceed 600W
LED Characteristics
LEDs
Long-life, high-efficacy, surface-mount LEDs
Color Uniformity
RAB's range of Correlated Color Temperature follows the guidelines of the American National Standard for Specifications for the Chromaticity of Solid State Lighting (SSL) Products, ANSI C78.377-2017.
Performance
Lifespan
100,000-Hour LED lifespan based on IESlm-80 results and TM-21 calculations
Construction
Cold Weather Starting
The minimum starting temperature is -4°F (-20°C)
Maximum Ambient Temperature
Suitable for use in up to 104°F (40°C)
Housing
Sheet metal and extruded aluminum
Lens
Frosted polycarbonate lens
Reflector
Polyethylene Terephthalate (PET)
Finish
Formulated for high durability and long-lasting color
Green Technology
Mercury and UV free. RoHS-compliant components.
Installation
Mounting
94" of aircraft cable provided with cable grippers for easy adjustment after installation
Other
5-Year Limited Warranty
The RAB 5-year, limited warranty covers light output, driver performance and paint finish. RAB's warranty is subject to all terms and conditions found at rablighting.com/warranty.
