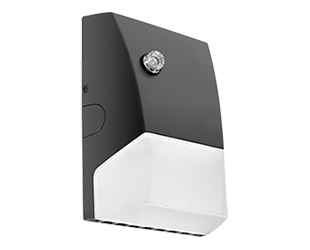

BRISKM48L/PCU

Economical

Traditional non-cutoff design

60,000-hour LED lifespan

5-Year, limited warranty

View Technical Specs

View Price & Availability

Performance

Watts	35W
Color Temp	5000K (Cool)
Lumens	5,363 lm
Efficacy	164.5 lm/W
Color Accuracy	74 CRI
L70 Lifespan	60,000 Hours

Type	Constant Current
120V	0.28A
208V	0.17A
240V	0.15A
277V	0.13A
Input Watts	32.6W

EZ-Layout

Create Custom Lighting Layout

Dimensions

Weight: 4.3 lbs

Technical Specifications

Compliance

UL Listed

Suitable for wet locations

IESNA LM-79 & LM-80 Testing

RAB LED luminaires and LED components have been tested by an independent laboratory in accordance with IESNA LM-79 and LM-80.

IP Rating

Ingress protection rating of IP66 for dust and water

Performance

Lifespan

60,000-Hour LED lifespan based on IES LM-80 results and TM-21 calculations

Wattage Equivalency

Equivalent to 150W Metal Halide or 100W HPS

LED Characteristics

LEDs

Long-life, high-efficacy, surface-mount LEDs

Color Uniformity

RAB's range of Correlated Color Temperature follows the guidelines of the American National Standard for Specifications for the Chromaticity of Solid State Lighting (SSL) Products, ANSI C78.377-2017.

Electrical

Driver

Constant Current, Class 2, 50/60Hz, 120V: 0.28A, 208V: 0.17A, 240V: 0.15A, 277V: 0.13A

THD

7.12% at 120V, 6.63% at 277V

Power Factor

99.5% at 120V, 96.8% at 277V

Surge Protection

2.5 kV

Photocell

120-277V Button photocell included. Photocell is compatible with 120V-277V.

Optical

BUG Rating

B1 U4 G3

Construction

Maximum Ambient Temperature

Suitable for use in up to 104°F (40°C)

Cold Weather Starting

The minimum starting temperature is -22°F (-30°C)

Housing

Precision die-cast aluminum

Reflector

Specular

Lens

Diffused acrylic

Gaskets

Silicone foam

Finish

Formulated for high durability and long-lasting color

Green Technology

Mercury and UV free. RoHS-compliant components.

Installation

Mounting

Heavy duty, die-cast junction box with four (4) conduit entries (one top, two side, one back)

Other

5-Year Limited Warranty

The RAB 5-year, limited warranty covers light output, driver performance and paint finish. RAB's warranty is subject to all terms and conditions found at rablighting.com/warranty.

Replacement

Replaces (2) 32W CFL, 42W CFL, 50W HPS or 70W MH (Pulse Start) - up to 100 Metal Halide
