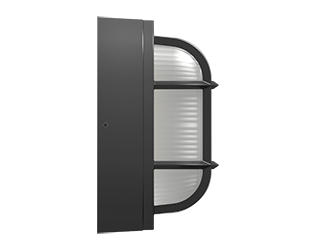

BULKH10
20W 3000/4000/5000K
- 100,000-hour LED Life
- On/Off photocell
- 5-Year, limited warranty
Performance
| Watts | 20/10/8/6W |
| Color Temp | 3000/4000/5000K |
| Lumens | 573-2043 lm |
| Efficacy | 90.1-110.6 lm/W |
| Color Accuracy | 82-84 CRI |
| L70 Lifespan | 100,000 Hours |
| Type | Constant Current |
| 120V | 0.15A/0.08A/0.06A/0.04A |
| 208V | 0.10A/0.05A/0.04A/0.03A |
| 240V | 0.08A/0.04A/0.04A/0.03A |
| 277V | 0.07A/0.04A/0.03A/0.03A |
| Input Watts | 5.8-19.3W |
Dimensions
Weight: 2.5 lbs
Technical Specifications
Field Adjustability
Field Adjustable
Field Adjustable Light Output:
10W/8W/6W (factory default 10W)
Color Temperature Selectable:
3000K, 4000K and 5000K (factory default 5000K)
On/Off Photocell (factory default "On")
10W/8W/6W (factory default 10W)
Color Temperature Selectable:
3000K, 4000K and 5000K (factory default 5000K)
On/Off Photocell (factory default "On")
Performance
Lifespan
100,000-Hour LED lifespan based on IESlm-80 results and TM-21 calculations
LED Characteristics
LEDs
Long-life, high-efficacy, discrete, surface-mount LEDs
Electrical
Driver
Constant Current, Class 1, 120-277V, 50/60 Hz:
10W: 120V: 0.10A, 208V: 0.05A, 240V: 0.04A, 277V: 0.4A
8W: 120V: 0.07A, 208V: 0.04A, 240V: 0.04A, 277V: 0.03A
6W: 120V: 0.05A, 208V: 0.03A, 240V: 0.03A, 277V: 0.03A
10W: 120V: 0.10A, 208V: 0.05A, 240V: 0.04A, 277V: 0.4A
8W: 120V: 0.07A, 208V: 0.04A, 240V: 0.04A, 277V: 0.03A
6W: 120V: 0.05A, 208V: 0.03A, 240V: 0.03A, 277V: 0.03A
THD
10W: 23.7% at 120V, 14.8% at 277V
8W: 25.9% at 120V, 15.6% at 277V
6W: 24.1% at 120V, 18.7% at 277V
8W: 25.9% at 120V, 15.6% at 277V
6W: 24.1% at 120V, 18.7% at 277V
Power Factor
10W: 97% at 120V, 93.5% at 277V
8W: 96.3% at 120V, 91.0% at 277V
6W: 96.5% at 120V, 86.4% at 277V
8W: 96.3% at 120V, 91.0% at 277V
6W: 96.5% at 120V, 86.4% at 277V
Aux Power Supply
No
Dim to Off
No
Photocell
120-277V selectable photocell that can be turned on and off.
Surge Protection
2 kV
Construction
Cold Weather Starting
The minimum starting temperature is -40°F (-40°C)
Maximum Ambient Temperature
Suitable for use in up to 113°F (45°C)
Housing
Die-cast aluminum
Lens
Glass
Gaskets
High-temperature silicone
Finish
Formulated for high durability and long-lasting color
Green Technology
Mercury and UV free. RoHS-compliant components.
Compliance
UL Listed
Suitable for wet locations
IESNA LM-79 & LM-80 Testing
RAB LED luminaires and LED components have been tested by an independent laboratory in accordance with IESNA LM-79 and LM-80.
IP Rating
Ingress protection rating of IP65 for dust and water
Installation
Mounting
Wall mount
Optical
BUG Rating
10W: B0 U2 G1
8W: B0 U2 G1
6W: B0 U2 G1
8W: B0 U2 G1
6W: B0 U2 G1
Other
5-Year Limited Warranty
The RAB 5-year, limited warranty covers light output, driver performance and paint finish. RAB's warranty is subject to all terms and conditions found at rablighting.com/warranty.
