PR4-11B-20D2
PR4-11B-20D2
- Designed for ground mounting
- Heavy duty TGIC polyester coating
- Reinforced hand holes with grounding lug and removable cover for easy wiring access
- Pole caps, base covers & bolts are sold separately
- Custom manufactured for each application

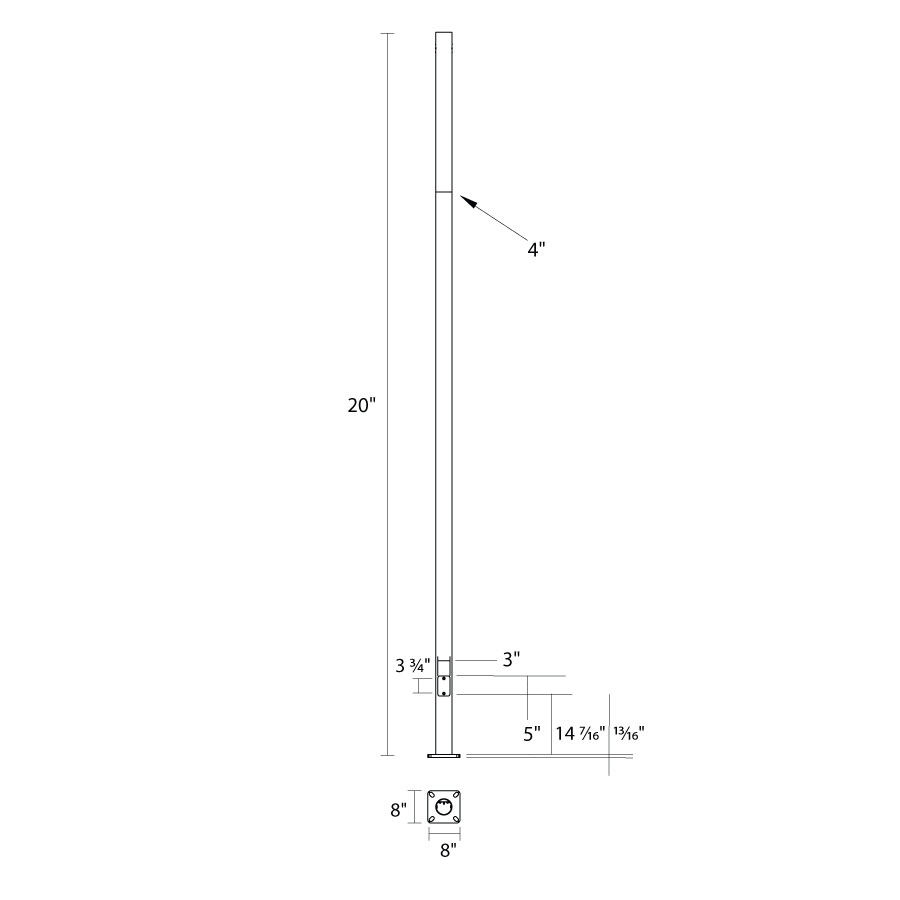

Dimensions
Weight: 121.3 lbs
Technical Specifications
Compliance
CSA Listed
Suitable for wet locations
Trade Agreements Act Compliant
This product is a product of Cambodia and a "designated country" end product that complies with the Trade Agreements Act
Performance
Description

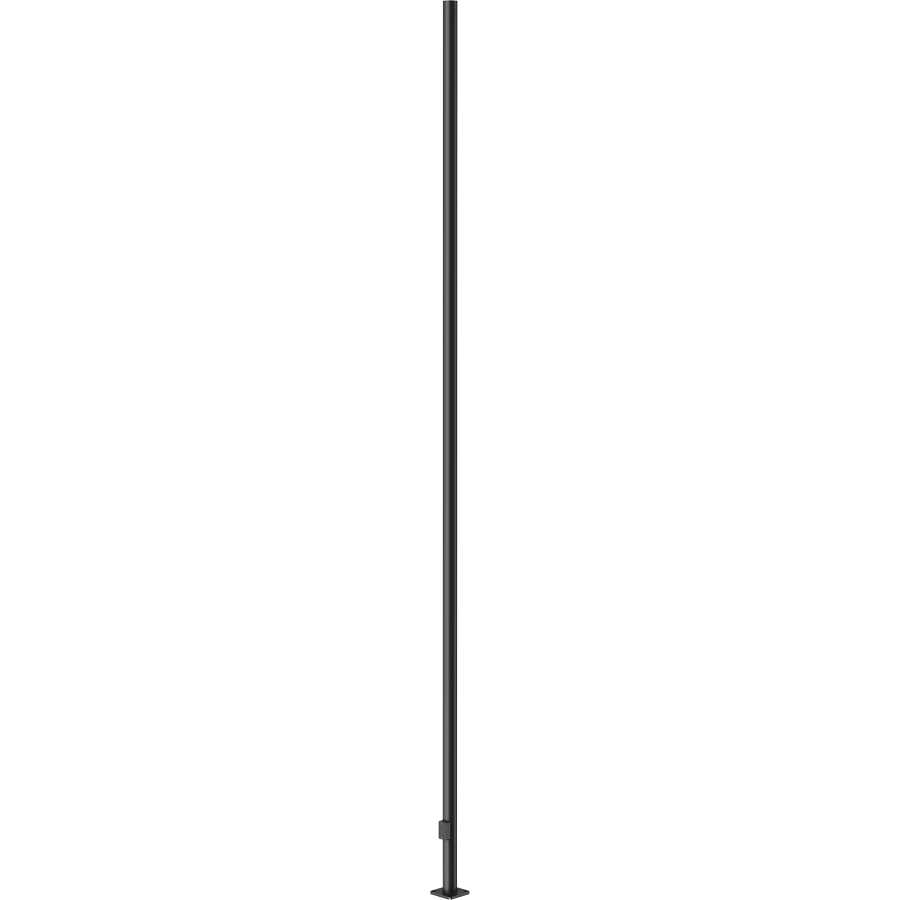

Steel pole 4" round 11 gauge 20 foot drilled two sides square base
Construction
Shaft
46,000 p.s.i. minimum yield.
Hand Holes
Reinforced with grounding lug and removable cover
Base Plates
Slotted base plates 36,000 p.s.i.
Color
Bronze powder coating
Height
20 ft
Gauge
11
Wall Thickness
1/8"
Shaft Size
4"
Base Covers & Caps
Base covers & caps are sold separately. Order BCK-R4/B for base covers & caps.
Anchor Bolt
Anchor bolt is sold separately. Order BOLT4/11 for anchor bolt.
Anchor Bolt Templates
WARNING Template must be printed on 11" x 17" sheet for actual size. CHECK SCALE BEFORE USING. Templates shipped with anchor bolts and available online.
Max EPA's/Max Weights
70MPH 7.4 ft/500 lb.
80MPH 5.5 ft/460 lb.
90MPH 3.3 ft/430 lb.
100MPH 2.1 ft/320 lb.
110MPH 1.1 ft/200 lb.
120MPH 0.5 ft/110lb
80MPH 5.5 ft/460 lb.
90MPH 3.3 ft/430 lb.
100MPH 2.1 ft/320 lb.
110MPH 1.1 ft/200 lb.
120MPH 0.5 ft/110lb
Other
Terms of Sale
Pole Terms of Sale is available online.
