20W 3000/4000/5000K
  • 100,000-hour LED Life
  • 120V
  • 5-Year, limited warranty
View Technical Specs
Performance
Watts 20/15/10W
Color Temp 3000/4000/5000K
Lumens 1,147-2,095 lm
Efficacy 98.3-114.3 lm/W
Color Accuracy 82-85 CRI
L70 Lifespan 100,000 Hours
Type Constant Current
120V 0.16A
208V
240V
277V
Input Watts 10.6-19.6W
Dimensions
Link to Dimension Drawing

Weight: 0.8 lbs

Technical Specifications
Field Adjustability
Field Adjustable
Field Adjustable Light Output:
20W/15W/10W (factory default 20W)
Color temperature selectable 3000K, 4000K and 5000K (factory default 4000K)
Compliance
UL Listed
Suitable for wet locations
IESNA LM-79 & LM-80 Testing
RAB LED luminaires and LED components have been tested by an independent laboratory in accordance with IESNA LM-79 and LM-80.
IP Rating
Ingress protection rating of IP65 for dust and water
Trade Agreements Act Compliant
This product is a product of Cambodia and a "designated country" end product that complies with the Trade Agreements Act
Electrical
Driver
Constant Current, Class 1, 120V, 50/60Hz, 120V: 0.16A
Dimming Driver
TRIAC compatible dimmer with dimming as low as 10%.
THD
14.95% at 120V
Power Factor
98.9% at 120V
Surge Protection
L/N:1KV, L/N-PE:1KV
Aux Power Supply
No
Dim to Off
No
LED Characteristics
LEDs
Long-life, high-efficacy, surface-mount LEDs
Construction
Cold Weather Starting
The minimum starting temperature is -40°C (-40°F)
Maximum Ambient Temperature
Suitable for use in up to 40°C (104°F)
Lens
Glass
Housing
Die-cast aluminum
Reflector
Polyethylene Terephthalate (PET)
Green Technology
Mercury and UV free. RoHS-compliant components.
Finish
Formulated for high durability and long-lasting color
Performance
Lifespan
100,000-Hour LED lifespan based on IES LM-80 results and TM-21 calculations
Optical
NEMA Type
NEMA Beam Spread 6H x 6V
Installation
Mounting
Heavy-duty mounting arm with "O" ring seal and stainless steel screws
Other
5-Year Limited Warranty
The RAB 5-year, limited warranty covers light output, driver performance and paint finish. RAB's warranty is subject to all terms and conditions found at rablighting.com/warranty.

Recently Viewed Products

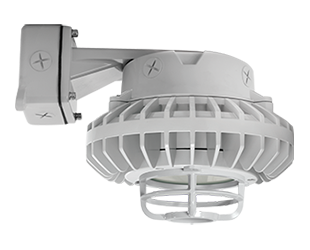

 This is a link to the product HAZBLED80FF-DG HAZBLED80FF-DG
