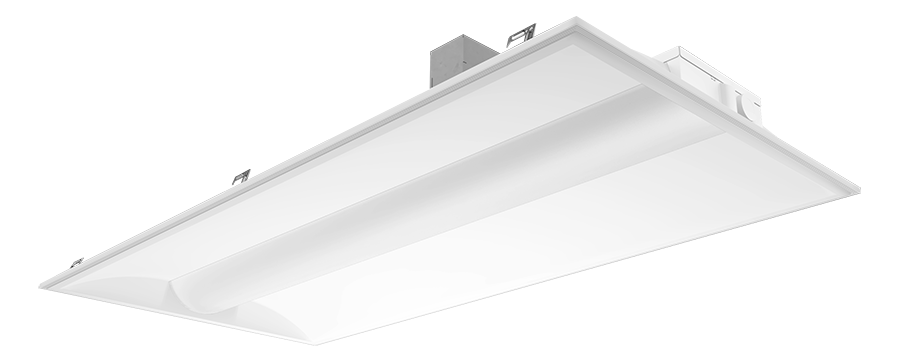

C-SWISH2X4
C-SWISH2X4
40W 3500/4000/5000K
- 0-10V Dimming, standard
- 100,000-hour LED lifespan
- 5-Year, no-compromise warranty
Performance
| Watts | 40/30/20W |
| Color Temp | 3500/4000/5000K |
| Lumens | 2,810-4,884 lm |
| Efficacy | 133.5-143.8 lm/W |
| Color Accuracy | 84-86 CRI |
| L70 Lifespan | 100,000 Hours |
| Type | Constant Current |
| 120V | 0.30A/0.25A/0.17A |
| 208V | 0.17A/0.14A/0.10A |
| 240V | 0.15A/0.13A/0.08A |
| 277V | 0.13A/0.11A/0.07A |
| Input Watts | 19.7-35.4W |
Dimensions
Weight: 11.3 lbs
Technical Specifications
Field Adjustability
Field Adjustable
Field Adjustable Light Output:
2' x 4': 36W/30W/20W (factory default 36W)
Color temperature selectable by 3500K, 4000K and 5000K (factory default 4000K)
2' x 4': 36W/30W/20W (factory default 36W)
Color temperature selectable by 3500K, 4000K and 5000K (factory default 4000K)
Compliance
UL Listed
Suitable for damp locations
IESNA LM-79 & LM-80 Testing
RAB LED luminaires and LED components have been tested by an independent laboratory in accordance with IESNA LM-79 and LM-80.
IC Rated
Suitable for direct contact with insulation
DLC Listed
This product family is listed with the DesignLights Consortium (DLC). Individual SKUs within this family may carry either a DLC Standard or DLC Premium qualification. Please refer to the individual product specification sheet or the DLC Qualified Products List (QPL) at designlights.org to confirm the qualification status of a specific SKU prior to specification or purchase.
Electrical
Dimming Driver
Driver includes dimming control wiring for 0-10V dimming systems. Requires separate 0-10V DC dimming circuit. Dims down to 10%.
THD
6.86% at 120V, 12.76% at 277V
Power Factor
99.7% at 120V, 97.2% at 277V
Surge Protection
L-N: 1 kV
L/N-PE: 2 kV
L/N-PE: 2 kV
Construction
Cold Weather Starting
The minimum starting temperature is -4°F (-20°C)
Ambient Temperature
Suitable for use in up to 104°F (40°C)
Housing
Polypropylene (PP)
Reflector
Integral reflector (on the sides) with high reflectance finish, optimized for uniform distribution.
Lens
Polycarbonate lens
Finish
Formulated for high durability and long-lasting color
Green Technology
Mercury and UV free. RoHS-compliant components.
Installation
Mounting
Recessed ceiling
LED Characteristics
LEDs
Long-life, high-efficacy, surface-mount LEDs
Color Stability
LED color temperature is warrantied to Shift no more than 200K in color temperature over a 5-year period
Color Uniformity
RAB's range of Correlated Color Temperature follows the guidelines of the American National Standard for Specifications for the Chromaticity of Solid State Lighting (SSL) Products, ANSI C78.377-2017.
Performance
Lifespan
100,000-Hour LED lifespan based on IESlm-80 results and TM-21 calculations
Other
5-Year, No-Compromise Warranty
RAB warrants that our LED products will be free from defects in materials and workmanship for a period of five (5) years from the date of delivery to the end user, including coverage of light output, color stability, driver performance and fixture finish. RAB's warranty is subject to all terms and conditions found at rablighting.com/warranty.
Driver
36W: Class 2, Constant Current, 120-277V, 50/60 Hz, 120V: 0.30A, 208V: 0.17A, 240V: 0.15A, 277V: 0.13A
30W: Class 2, Constant Current, 120-277V, 50/60 Hz, 120V: 0.25A, 208V: 0.14A, 240V: 0.13A, 277V: 0.11A
20W: Class 2, Constant Current, 120-277V, 50/60 Hz, 120V: 0.17A, 208V: 0.10A, 240V: 0.08A, 277V: 0.07A
30W: Class 2, Constant Current, 120-277V, 50/60 Hz, 120V: 0.25A, 208V: 0.14A, 240V: 0.13A, 277V: 0.11A
20W: Class 2, Constant Current, 120-277V, 50/60 Hz, 120V: 0.17A, 208V: 0.10A, 240V: 0.08A, 277V: 0.07A
