H15

Spec Sheet IES File LM79 Instructions Sell Sheet Folleto (Español) Family Spec Sheet Spec Sheet EZ Layout

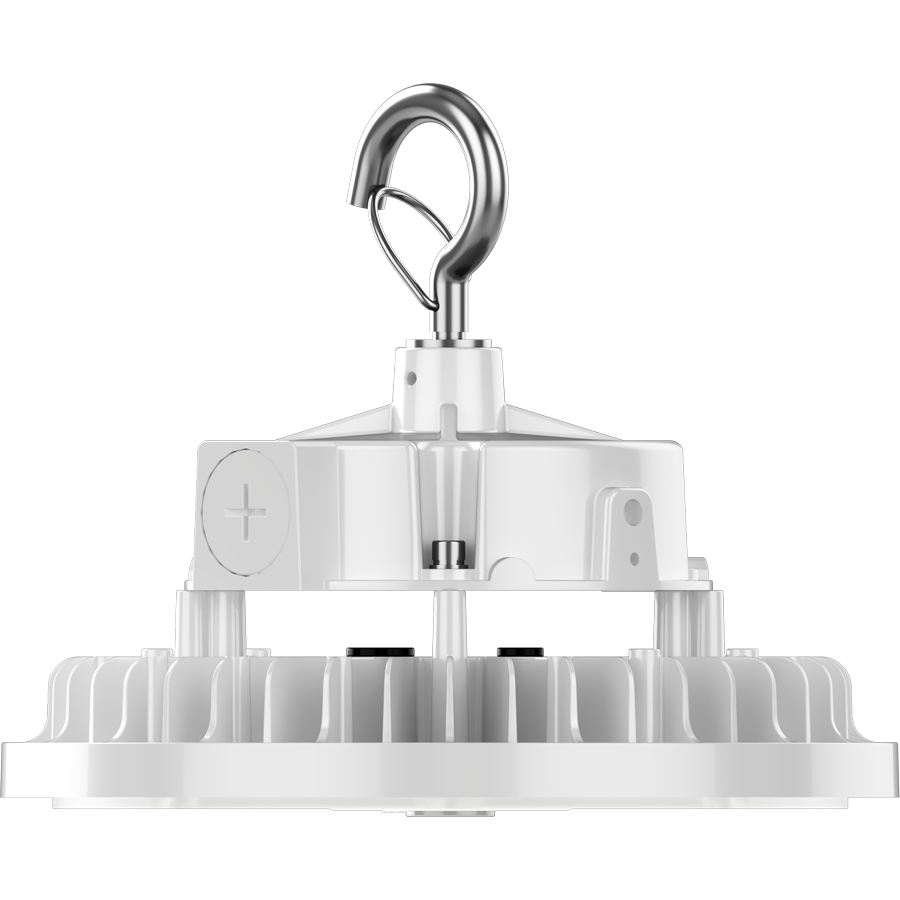

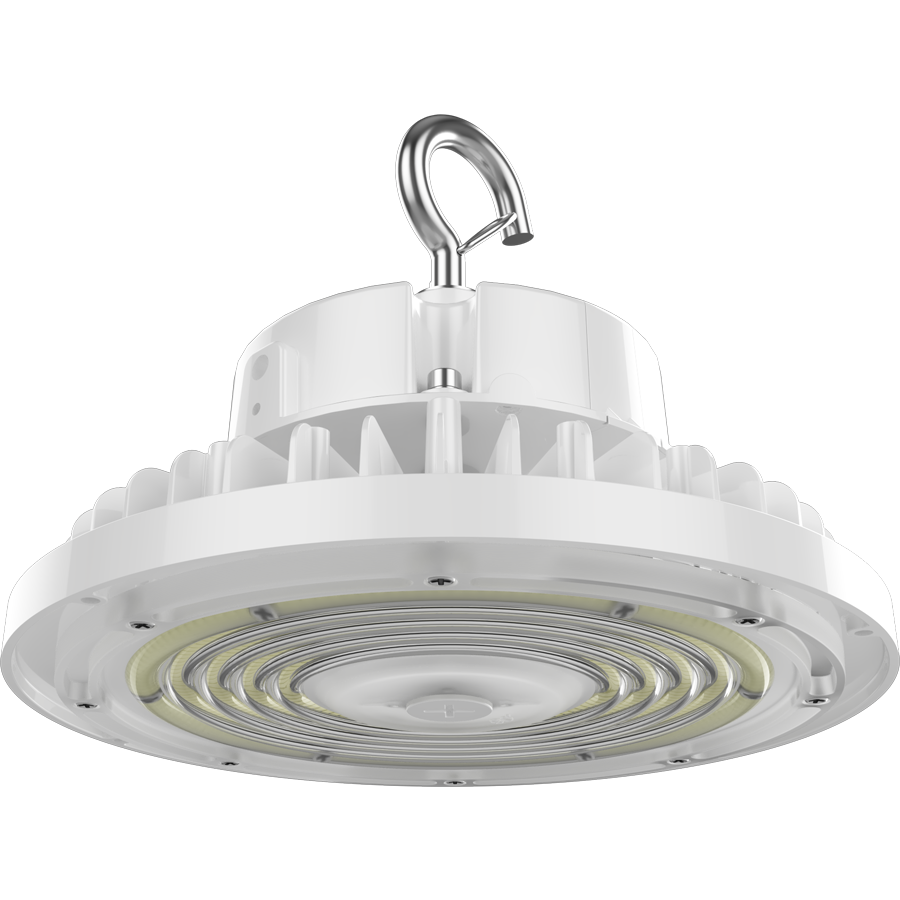

H15

150W 3000/4000/5000K

DLC Premium listed

100,000-hour LED Life

0-10V dimming standard

5-Year, limited warranty

View Technical Specs

View Price & Availability

Performance

Watts	150/120/100W
Color Temp	3000/4000/5000K
Lumens	14,708-23,024 lm
Efficacy	133.3-167.7 lm/W
Color Accuracy	81-83 CRI
L70 Lifespan	100,000 Hours

Type	Constant Current
120V	1.25A/0.98A/0.84A
208V	0.72A/0.57A/0.48A
240V	0.64A/0.50A/0.43A
277V	0.55A/0.44A/0.38A
Input Watts	95.1-155.1W

EZ-Layout

Create Custom Lighting Layout

Dimensions

Weight: 4.1 lbs

Technical Specifications

Field Adjustability

Field Adjustable

Field Adjustable Light Output:
150W/120W/100W (factory default 150W)
Color temperature selectable by 3000K, 4000K and 5000K (factory default 4000K)

Compliance

UL Listed

Suitable for wet locations

IESNA LM-79 & LM-80 Testing

RAB LED luminaires and LED components have been tested by an independent laboratory in accordance with IESNA LM-79 and LM-80.

IP Rating

Ingress protection rating of IP65 for dust and water

DLC Listed

This product is listed by Design Lights Consortium (DLC) as an ultra-efficient premium product that qualifies for the highest tier of rebates from DLC Member Utilities.
DLC Product Code: S-XDBZ3C

Electrical

Driver

150W: Constant Current, 120-277V, 50/60Hz,120V: 1.25A, 208V: 0.72A, 240V: 0.63A, 277V: 0.55A
120W: Constant Current, 120-277V, 50/60Hz,120V: 0.98A, 208V: 0.57A, 240V: 0.50A, 277V: 0.44A
100W: Constant Current, 120-277V, 50/60Hz,120V: 0.84A, 208V: 0.49A, 240V: 0.43A, 277V: 0.38A

Dimming Driver

Driver includes wiring for 0-10V dimming systems. Dim as low as 10%.

THD

3.07% at 120V, 7.76% at 277V

Power Factor

99.8% at 120V, 95.2% at 277V

Aux Power Supply

Yes

Dim to Off

Yes

Surge Protection

6 kV + 6 kV

LED Characteristics

LEDs

Long-life, high-efficacy, surface-mount LEDs

Color Consistency

7-step MacAdam Ellipse binning to achieve consistent fixture-to-fixture color

Color Uniformity

RAB's range of Correlated Color Temperature follows the guidelines of the American National Standard for Specifications for the Chromaticity of Solid State Lighting (SSL) Products, ANSI C78.377-2017.

Construction

Cold Weather Starting

The minimum starting temperature is -40°F (-40°C)

Maximum Ambient Temperature

Suitable for use in up to 122°F (50°C)

Housing

Precision die-cast aluminum

Lens

Polycarbonate lens

Reflector

Polycarbonate and Aluminum (Reflector Accessories Sold Separately)

Finish

Formulated for high durability and long-lasting color

Green Technology

Mercury and UV free. RoHS-compliant components.

Installation

Mounting

Comes standard with a hanging hook and a 6-foot cord. Heavy-duty 3/4"-14 NPT hook and 3/4"-14 pendant mount capable (pendant by others.)

Performance

Wattage Equivalency

150W: Replaces up to (7) F5HO or 400W Metal Halide (MH)
120W: Replaces up to (5) F5HO or 400W Metal Halide (MH)
100W: Replaces up to (8) F32T8 or (4) F5HO or 350W Metal Halide (MH)

Other

5-Year Limited Warranty

The RAB 5-year, limited warranty covers light output, driver performance and paint finish. RAB's warranty is subject to all terms and conditions found at rablighting.com/warranty.
