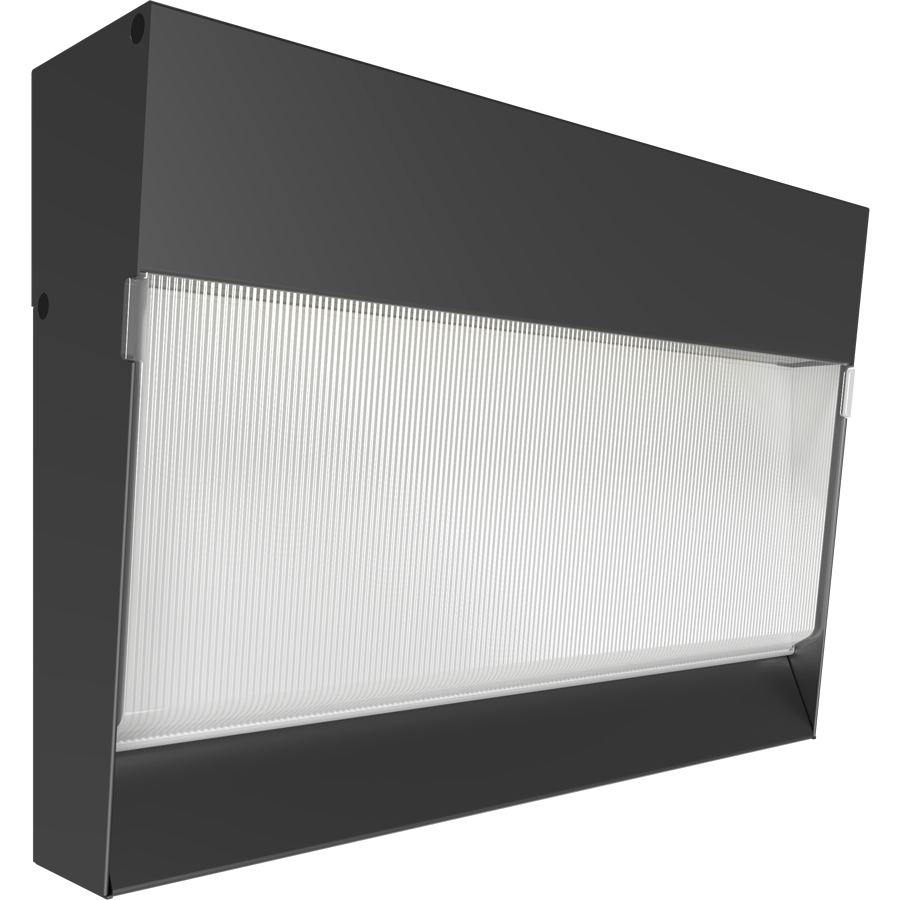

C-WALLM

Spec Sheet IES File LM79 Instructions Sell Sheet Family Spec Sheet Spec Sheet EZ Layout

C-WALLM

40W 3000K/4000K/5000K

100,000-hour LED Life

120-277V

DLC Premium listed models

Compatible with RAB specified 0-10V dimming system

5-Year, no-compromise warranty

View Technical Specs

View Price & Availability

Performance

Watts	40/60/75W
Color Temp	3000K/4000K/5000K
Lumens	5279-10383 lm
Efficacy	125.4-147.4 lm/W
Color Accuracy	81-84 CRI
L70 Lifespan	100,000 Hours

Type	Constant
120V	0.32A/0.33A/0.49A/0.50A/0.51A/0.61A/0.63A
208V	0.21A/0.28A/0.29A/0.35A/0.36A
240V	0.18A/0.25A/0.31A/0.32A
277V	0.16A/0.22A/0.23A/0.27A/0.28A
Input Watts	39.1-75.2W

EZ-Layout

Create Custom Lighting Layout

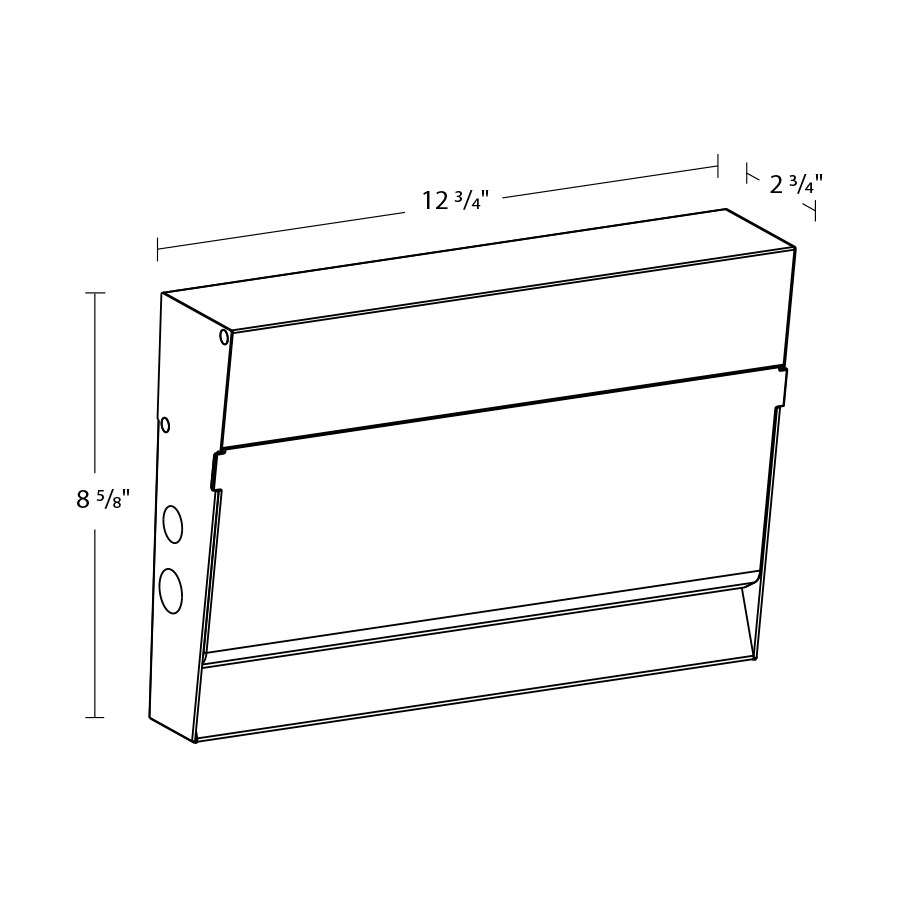

Dimensions

Weight: 5.2 lbs

Technical Specifications

Field Adjustability

Field Adjustable

Field Adjustable Light Output:
75/60/40W (factory default: 60W)
Color temperature selectable by 3000K, 4000K and 5000K (factory default: 4000K)

Compliance

UL Listed

Suitable for wet locations

Trade Agreements Act Compliant

This product is a product of Cambodia and a "designated country" end product that complies with the Trade Agreements Act

DLC Listed

This product is listed by Design Lights Consortium (DLC) as an ultra-efficient premium product that qualifies for the highest tier of rebates from DLC Member Utilities. Designed to meet DLC 5.1 requirements.
DLC Product Code: S-FCQXYM

Electrical

Driver

Constant Current, Class II, 120-277V, 50/60 Hz:
75W: 120V: 0.63A, 208V: 0.37A, 240V: 0.32A, 277V: 0.28A
60W: 120V: 0.51A, 208V: 0.30A, 240V: 0.25A, 277V: 0.23A
40W: 120V: 0.33A, 208V: 0.20A, 240V: 0.18A, 277V: 0.16A

Dimming Driver

Driver includes dimming control wiring for 0-10V dimming systems. Requires separate 0-10V DC dimming circuit. Dims down to 10%.

Aux Power Supply

Yes

Dim to Off

Yes

Photocell

Integrated photocell included with on/off switch

Surge Protection

4kV

Performance

Lifespan

100,000-Hour LED lifespan based on IES LM-80 results and TM-21 calculations

LED Characteristics

LEDs

Long-life, high-efficacy, surface-mount LEDs

Color Consistency

7-step MacAdam Ellipse binning to achieve consistent fixture-to-fixture color

Color Uniformity

RAB's range of Correlated Color Temperature follows the guidelines of the American National Standard for Specifications for the Chromaticity of Solid State Lighting (SSL) Products, ANSI C78.377-2017.

Construction

Housing

Recycled aluminum and sheet metal

Mounting

Surface mount for recessed junction box; 3 conduit entry points

Lens

Bio-based Polymethy Methacrylate (PMMA) lens

Reflector/Tray

Aluminum

Gaskets

High-temperature silicone

Cold Weather Starting

The minimum starting temperature is -40°C (-40°F)

Maximum Ambient Temperature

Suitable for use in up to 40°C (104°F)

Green Technology

Mercury and UV free. RoHS-compliant components.

Finish

Formulated for high durability and long-lasting color

Other

5-Year, No-Compromise Warranty

RAB warrants that our LED products will be free from defects in materials and workmanship for a period of five (5) years from the date of delivery to the end user, including coverage of light output, color stability, driver performance and fixture finish. RAB's warranty is subject to all terms and conditions found at rablighting.com/warranty.
