C8R10/15/229FAUNVW
C8R10/15/229FAUNVW large main
  • High Performance LEDs for commercial applications
  • Replacement for traditional compact fluorescent recessed downlights
  • Compatible with new construction or retrofit installations
  • UL wet and Energy Star rated
  • Meets air-tight requirements
  • Lumen and Color Temperature Selectable
  • Matte white smooth trim finish
  • Available in 3 color temperatures: 3000K, 3500K, 4000K
  • 0 - 10V dimmable
  • Spring loaded retention clips
  • 25-inch Flexible conduit
  • 5-Year, No-Compromise Warranty
 View Technical Specs
View Price & Availability
Performance
Watts 10W
Color Temp 3000K (Warm)
Lumens 1000/1500/2000 lm
Efficacy 100
Color Accuracy 90 CRI
L70 Lifespan 50,000 Hours
Type Constant Current
120V 0.185A
208V 0.12A
240V 0.1A
277V 0.08A
Input Watts 10/15/22W
Dimensions

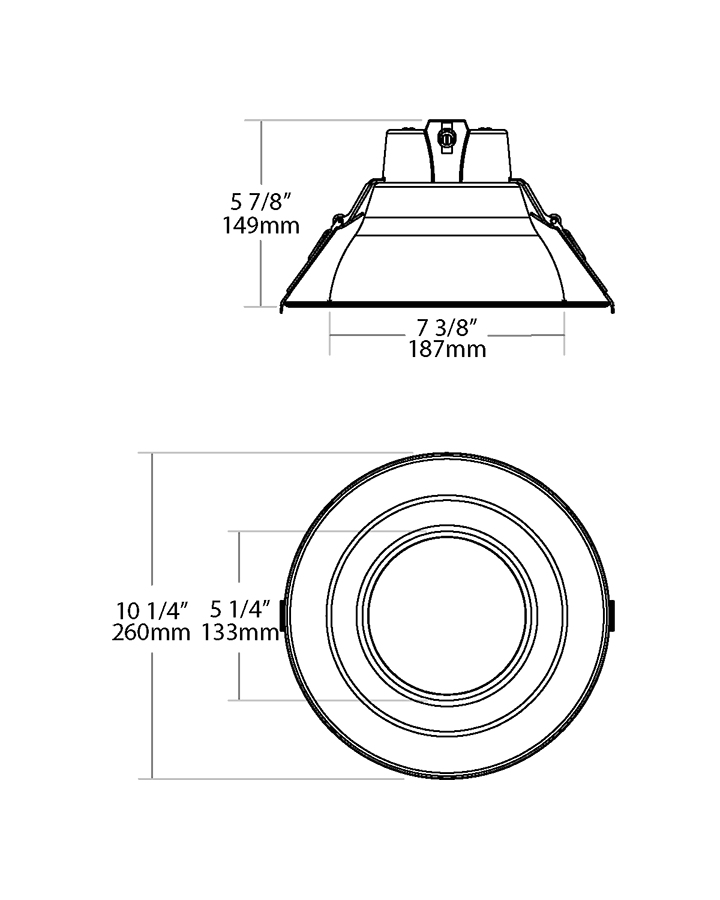

Link to Dimension Drawing

Weight: 1.8 lbs

Technical Specifications
Compliance
UL Listed & UL Classified
Suitable for wet locations
Energy Star Approved
ENERGY STAR® Version 2.2 Certified
Certification Model Number
DLC0030
Electrical
Dimming Driver
Driver includes dimming control wiring for 0-10V dimming systems. Requires separate 0-10V DC dimming circuit. Dims down to 10%.
THD
<20%
Power Factor
≥0.9
