Performance
Watts 33W
Color Temp 3500K (Warm Neutral)
Lumens 3,017 lm
Efficacy 90.90909091
Color Accuracy 90 CRI
L70 Lifespan 50,000 Hours
Type Constant Current
120V 0.32A
208V 0.176A
240V 0.153A
277V 0.14A
Input Watts 32.4W
Dimensions

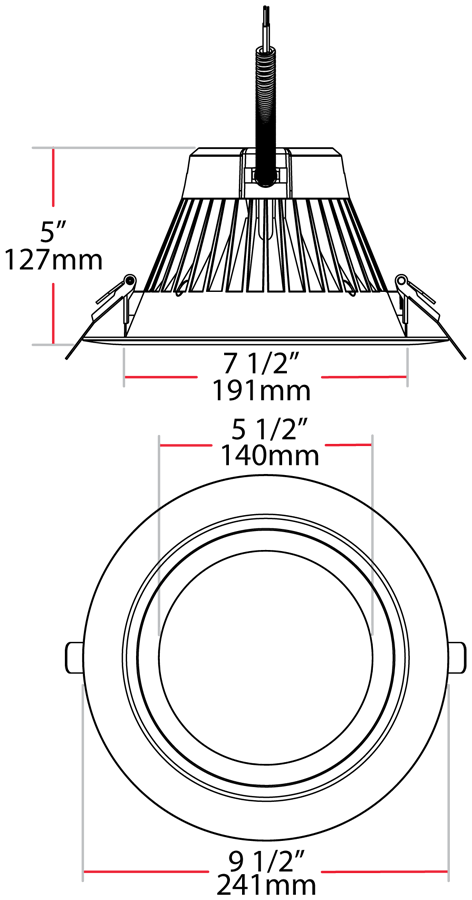

Link to Dimension Drawing

Weight: 3.1 lbs

Technical Specifications
Compliance
UL Listed & UL Classified
Suitable for wet locations
Energy Star Approved
ENERGY STAR® Version 2.2 Certified
Certification Model Number
DLC0024
Energy Star ID
2350077
California Title 24
Can be used to conform with the requirements of California Title 24 Part 6.
Trade Agreements Act Compliant
This product is a product of Cambodia and a "designated country" end product that complies with the Trade Agreements Act
Electrical
Dimming Driver
Driver includes dimming control wiring for 0-10V dimming systems. Requires separate 0-10V DC dimming circuit. Dims down to 10%.
THD
<20%
Power Factor
≥0.9
THDi
Produces less than 20% THD
PF
≥0.9
Input Voltage
120V through 277V
Operating Frequency (Hz)
50/60Hz
Performance
Lifespan
50,000-Hour LED lifespan based on IES LM-80 results and TM-21 calculations
Wattage Equivalency
2 X 42W CFL
Construction
Air Tight
Housing certified Air Tight as per ASTM E283
Housing
Made from precision die-cast aluminum construction, dissipates heat from electrical components
Cold Weather Starting
The minimum starting temperature is -30°C (-22°F)
Maximum Ambient Temperature
Suitable for use in up to 40°C (104°F)
Green Technology
Mercury and UV free. RoHS-compliant components.
Lens
Diffuse Polystyrene lens produces smooth uniform light that is glare free
Finish
Matte White
LED Characteristics
Beam Angle
90°±10°
LEDs
Long-life, high-efficacy, surface-mount LEDs
R9 Value
High color performance with R9 greater than or equal to 50
Flicker
Silent and flicker free operations of less than 30%
Installation
Mounting
Robust retention clips spring loaded tabs ensure the fixture is securely installed. Can be installed in 1/4" to 1 1/2" thick ceilings.
Other
Template
Template included for easy ceiling cut out
Warranty
RAB warrants that our LED products will be free from defects in materials and workmanship for a period of five (5) years from the date of delivery to the end user, including coverage of light output, color stability, driver performance and fixture finish. RAB's warranty is subject to all terms and conditions found at rablighting.com/warranty.
Accessories
DLPLATE/T: New Construction or Remodel Plate for T-Grid ceilings for use with 6" and 8" Models
DLPLATE/SJ: New Construction Plate for Stud/Joist mounting for use with 6" and 8" Models
DL8-10GOOF/R/P: 10" Goof Ring for 8" Commercial Downlight
DL8-12GOOF/R/P: 12" Goof Ring for 8" Commercial Downlight
