CD34-4SPW

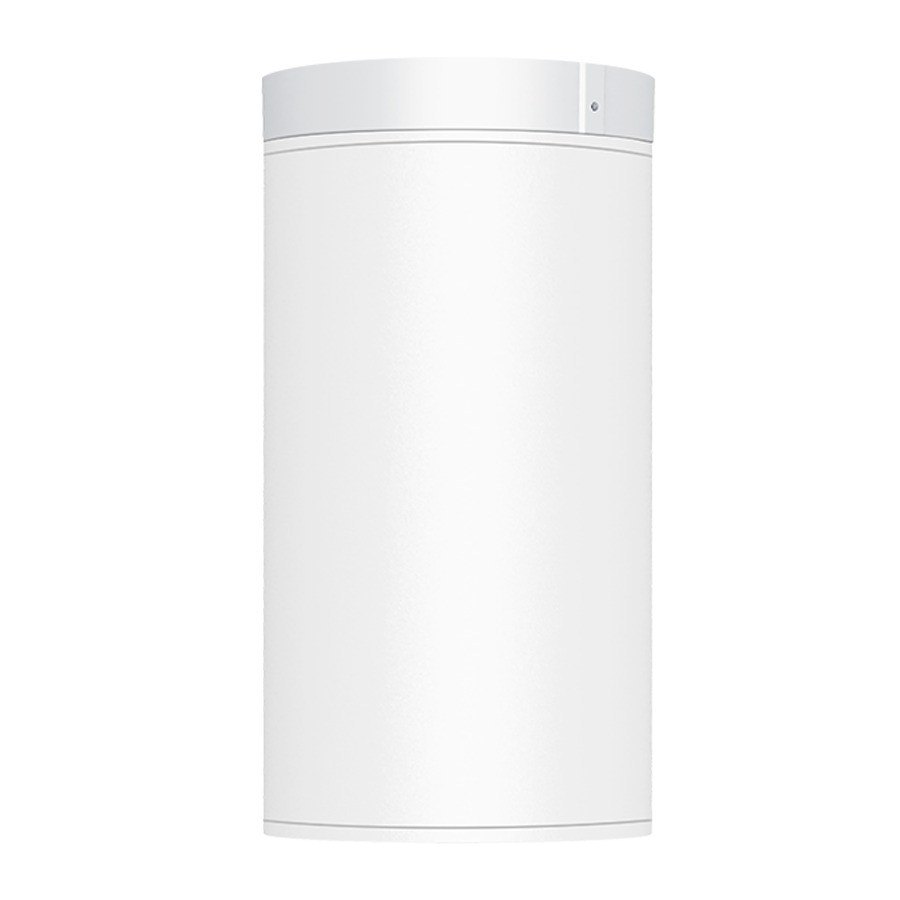

Aluminum extrusion housing and die-cast covers available in black, bronze, or white

Field interchangeable optics sold separately for 25°/40°/60° beam angle

Field-adjustable color temperature 3000/4000/5000K (indoor); 2700/3000/3500/4000/5000K (outdoor).

Dimmable on 0-10V systems (indoor); integrated photocell (outdoor)

View Technical Specs

View Price & Availability

Performance

Watts	20/16/12WW
Color Temp	2700K/3000K/3500K/4000K/5000K
Lumens	1900/1520/1140 lm
Efficacy	95
Color Accuracy	90 CRI
L70 Lifespan	50,000 Hours

Type	Constant Current
120V	0.17A
208V	0.10A
240V	0.09A
277V	0.08A
Input Watts	20/16/12WW

EZ-Layout

Create Custom Lighting Layout

Dimensions

Weight: 2.7 lbs

Technical Specifications

Performance

Product Type

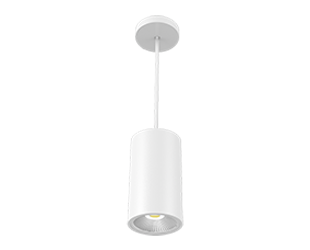

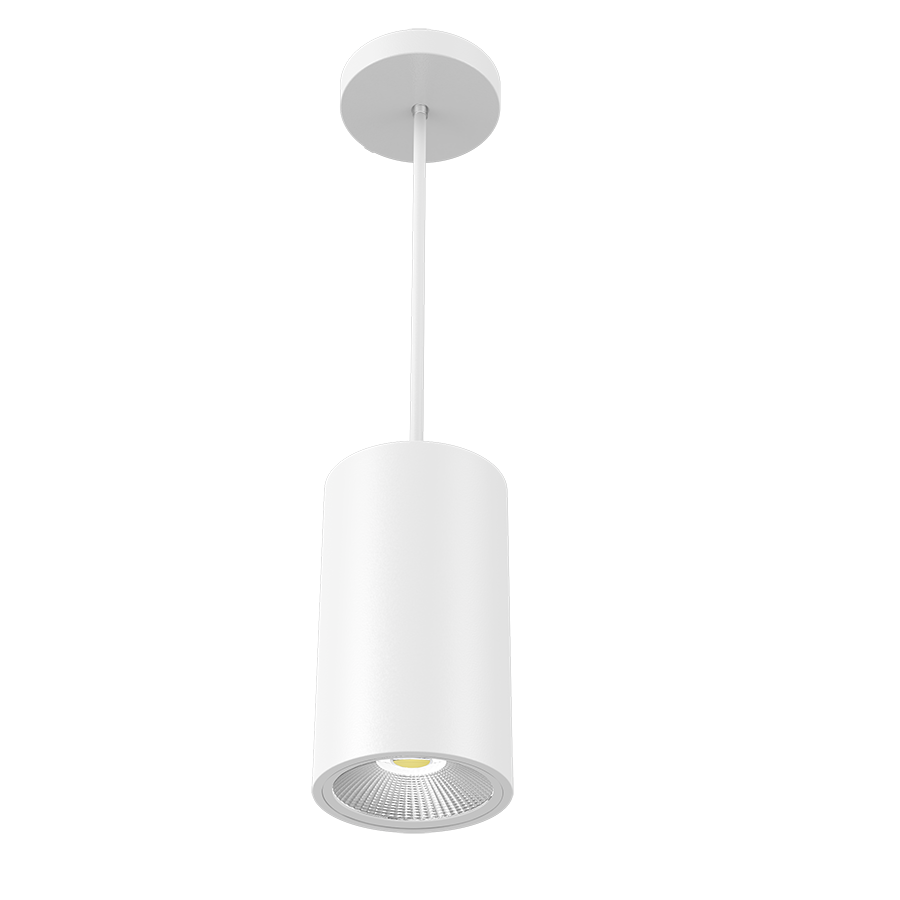

Cylinder Surface Pendant Mount

Description

Economical cylinders with field-adjustable color temperature, power and light distribution along with field-swappable optics to fit any indoor or outdoor application.

Wattage Equivalency

125/100/75W

Input Wattage

20/16/12W

Nominal Lumens

1900/1520/1140lm

Efficacy

95lm/W

Lifespan

50,000-Hour LED lifespan based on IES LM-80 results and TM-21 calculations

Electrical

Driver

Constant Current, 50-60 Hz, 120V-277V

THD

≤20%

Power Factor

≥0.9

Dimmable

Yes, dimmable down to 5% on compatible 0-10V dimming systems. See Dimmer Compatibility List. Requires separate 0-10V DC dimming circuit.

Input Voltage

120-277V

Operating Frequency

50/60Hz

Input Current @ 120V (mA)

165mA

Input Current @ 208V (mA)

98mA

Input Current @ 240V (mA)

85mA

Input Current @ 277V (mA)

75mA

Operating Temperature

-40°F to 120°F (-40°C to 45°C)

Flicker

≤1%

LED Characteristics

Beam Angle

60° (installed)
Field swappable optics sold separately for 25°/40°/60° beam angle_

Light Distribution

Down

Color Temperature

2700/3000/3500/4000/5000K

Color Accuracy (CRI)

90 CRI

R9 Value

High color performance with R9 greater than 0

Color Consistency

<6-step MacAdam Ellipse binning to achieve consistent fixture-to-fixture color

Installation

Mounting

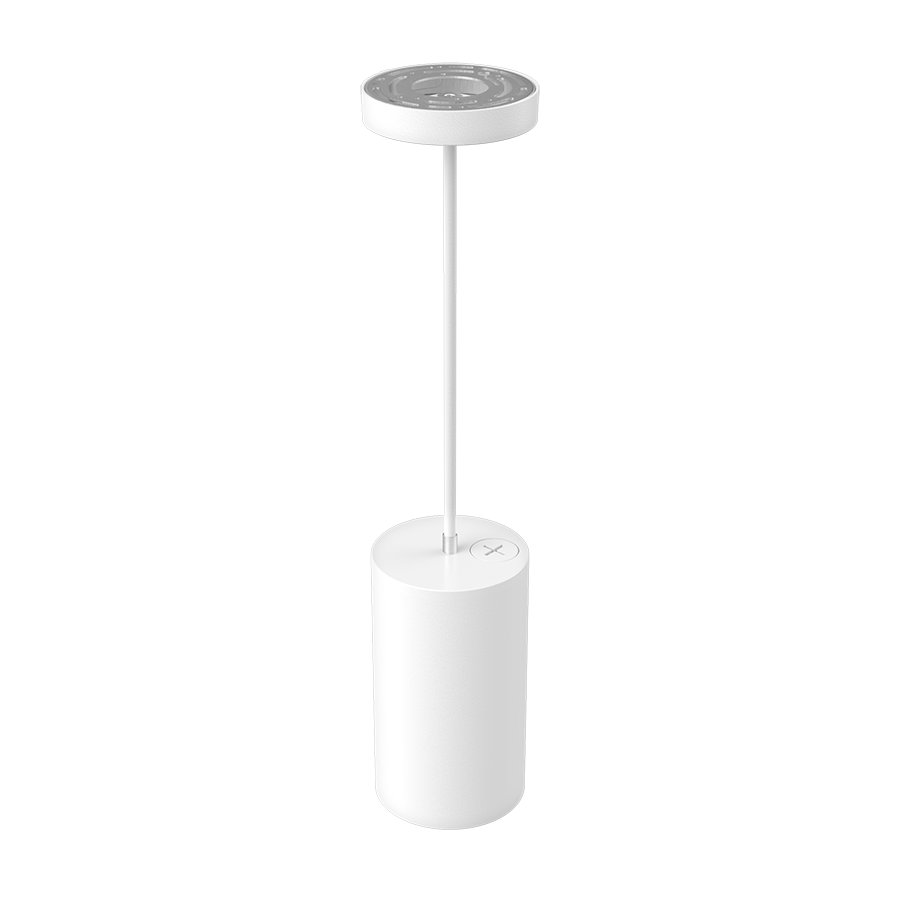

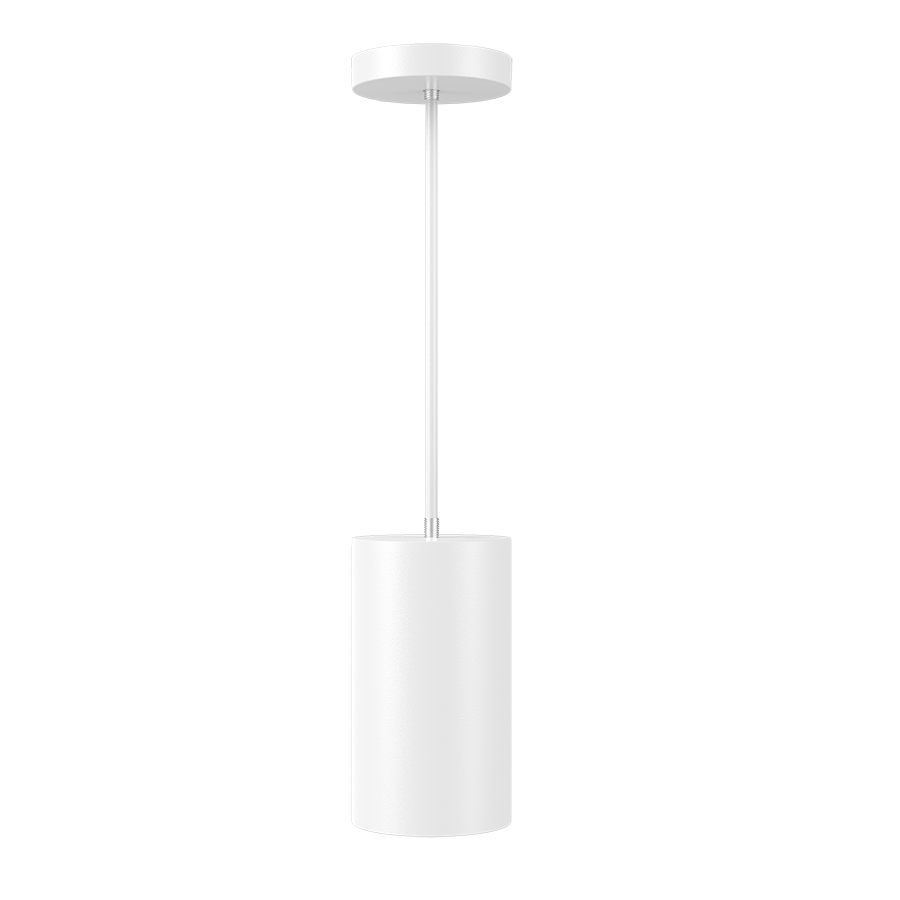

Surface or Pendant mount (pendant stem sold separately)

Construction

Size

Shape

Cylinder

Finish

White

Enclosure Material

Die-casting aluminum + PC

Lens Finish

Clear (installed)
Frosted lens accessory sold separately

Compliance

Listings

UL Listed

Environment

Suitable for use indoors and outdoors in dry, damp, or wet environments.

Fixture Rating

Suitable for use in open fixtures

Energy Star Approved

DLC Listed

Certification Model Number

CD2013(CD34-4SPW)

California Title 20 Compliant

California Title 24 JA8 Compliant

California Energy Commission (CEC) Status

Lawful for Sales in California

IESNA LM-79 & LM-80 Testing

RAB LED luminaires and LED components have been tested by an independent laboratory in accordance with IESNA LM-79 and LM-80.

RoHS

Mercury and UV free. RoHS-compliant components.

FCC

Complies with Part 15 of the FCC Rules

Other

Compatible Accessories

CD34REF-625D
25° reflector

CD34REF-640D
40° reflector

CD34REF-660D
60° reflector

CD34LENS-6FRW
6" frosted lens white

CD34LENS-6FRK
6" frosted lens black

CD34LENS-6FRZ
63" frosted lens bronze

CD34STEM-K
Pendant stem black

CD34STEM-Z
Pendant stem bronze

CD34STEM-W
Pendant stem white

Warranty

RAB warrants that our LED products will be free from defects in materials and workmanship for a period of five (5) years from the date of delivery to the end user, including coverage of light output, color stability, driver performance and fixture finish. RAB's warranty is subject to all terms and conditions found at rablighting.com/warranty.
