• Aluminum extrusion housing and die-cast covers available in black, bronze, or white
  • Field interchangeable optics sold separately for 25°/40°/60° beam angle
  • Field-adjustable color temperature 3000/4000/5000K (indoor); 2700/3000/3500/4000/5000K (outdoor).
  • Dimmable on 0-10V systems (indoor); integrated photocell (outdoor)
View Technical Specs
Performance
Watts 20/16/12WW
Color Temp 3000K/4000K/5000K
Lumens 2000/1600/1200 lm
Efficacy 100
Color Accuracy 90 CRI
L70 Lifespan 50,000 Hours
Type Constant Current
120V 0.17A
208V 0.10A
240V 0.09A
277V 0.08A
Input Watts 20/16/12WW
Dimensions
Link to Dimension Drawing

Weight: 4.1 lbs

Technical Specifications
Performance
Product Type

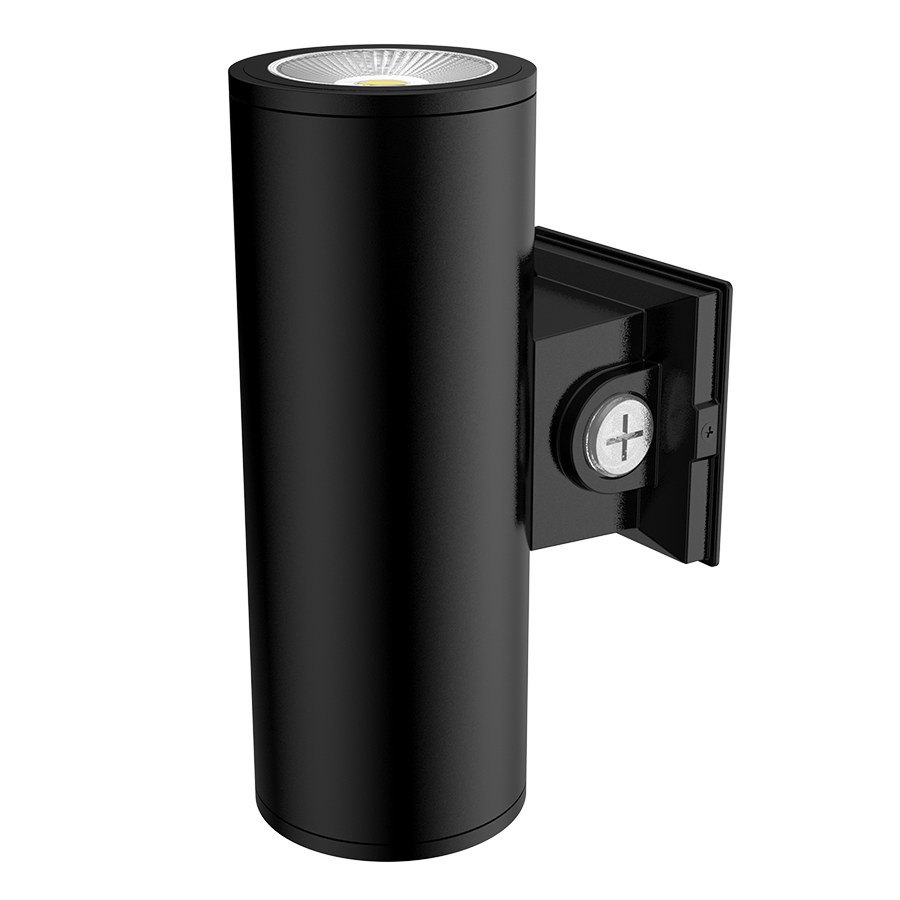

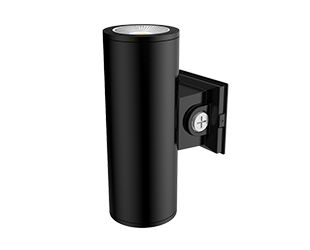

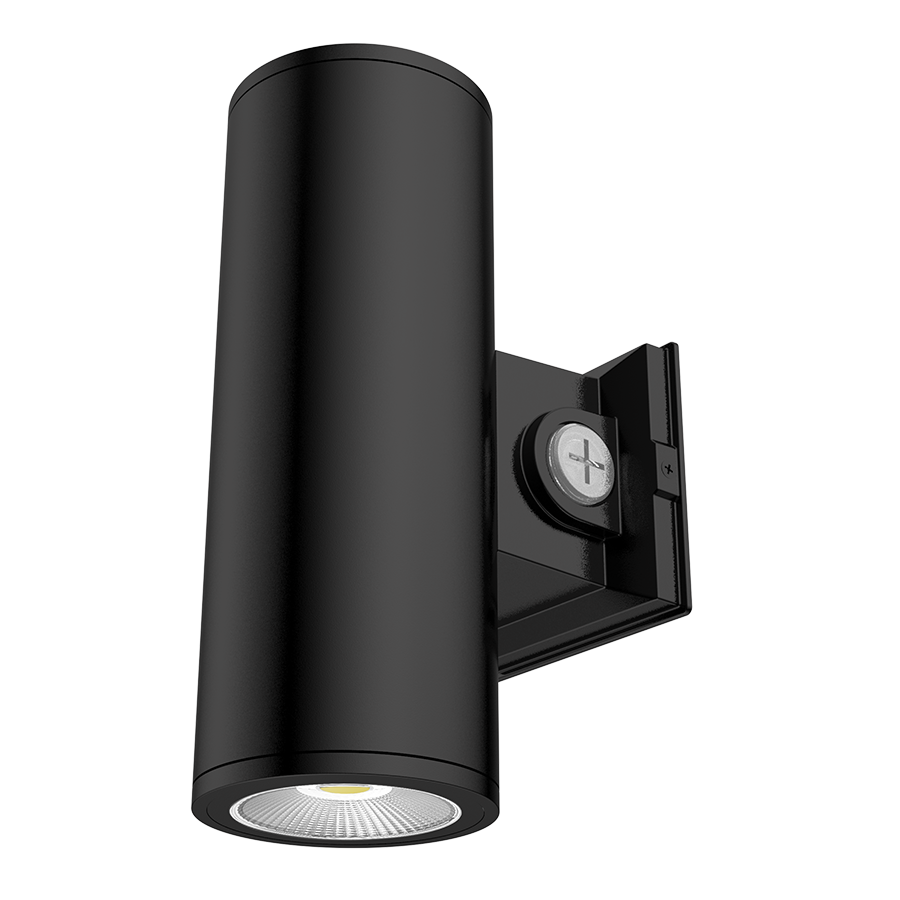

Cylinder Wall Mount
Description
Economical cylinders with field-adjustable color temperature, power and light distribution along with field-swappable optics to fit any indoor or outdoor application.
Wattage Equivalency
125/100/75W
Input Wattage
20/16/12W
Nominal Lumens
2000/1600/1200lm
Efficacy
100lm/W
Lifespan
50,000-Hour LED lifespan based on IES LM-80 results and TM-21 calculations
Electrical
Driver
Constant Current, 50-60 Hz, 120V-277V
THD
≤20%
Power Factor
≥0.9
Dimmable
Yes, dimmable down to 5% on compatible 0-10V dimming systems. See Dimmer Compatibility List. Requires separate 0-10V DC dimming circuit.
Input Voltage
120-277V
Operating Frequency
50/60Hz
Input Current @ 120V (mA)
165mA
Input Current @ 208V (mA)
98mA
Input Current @ 240V (mA)
85mA
Input Current @ 277V (mA)
75mA
Operating Temperature
-40°F to 120°F (-40°C to 45°C)
Flicker
≤1%
Photocell
Integrated photocell included with on/off switch
LED Characteristics
Beam Angle
40° (installed)
Field swappable optics sold separately for 25°/40°/60° beam angle_
Light Distribution
Selectable dip switch for up, down, or up/down light
Color Temperature
3000/4000/5000K
Color Accuracy (CRI)
90 CRI
R9 Value
High color performance with R9 greater than 0
Color Consistency
<6-step MacAdam Ellipse binning to achieve consistent fixture-to-fixture color
Installation
Mounting
Wall mount
Construction
Size
4"
Shape
Cylinder
Finish
Black
Enclosure Material
Die-casting aluminum + PC
Lens Finish
Clear (installed)
Frosted lens accessory sold separately
Compliance
Listings
UL Listed
Environment
Suitable for use indoors and outdoors in dry, damp, or wet environments.
Fixture Rating
Suitable for use in open fixtures
IP Rating
IP65
Energy Star Approved
No
DLC Listed
No
Certification Model Number
CD2005(CD34-4WK)
California Title 20 Compliant
No
California Title 24 JA8 Compliant
No
California Energy Commission (CEC) Status
Lawful for Sales in California
IESNA LM-79 & LM-80 Testing
RAB LED luminaires and LED components have been tested by an independent laboratory in accordance with IESNA LM-79 and LM-80.
RoHS
Mercury and UV free. RoHS-compliant components.
FCC
Complies with Part 15 of the FCC Rules
Other
Compatible Accessories
CD34REF-425D
25° reflector

CD34REF-440D
40° reflector

CD34REF-460D
60° reflector

CD34LENS-4FRW
4" frosted lens white

CD34LENS-4FRK
4" frosted lens black

CD34LENS-4FRZ
4" frosted lens bronze
Warranty
RAB warrants that our LED products will be free from defects in materials and workmanship for a period of five (5) years from the date of delivery to the end user, including coverage of light output, color stability, driver performance and fixture finish. RAB's warranty is subject to all terms and conditions found at rablighting.com/warranty.
