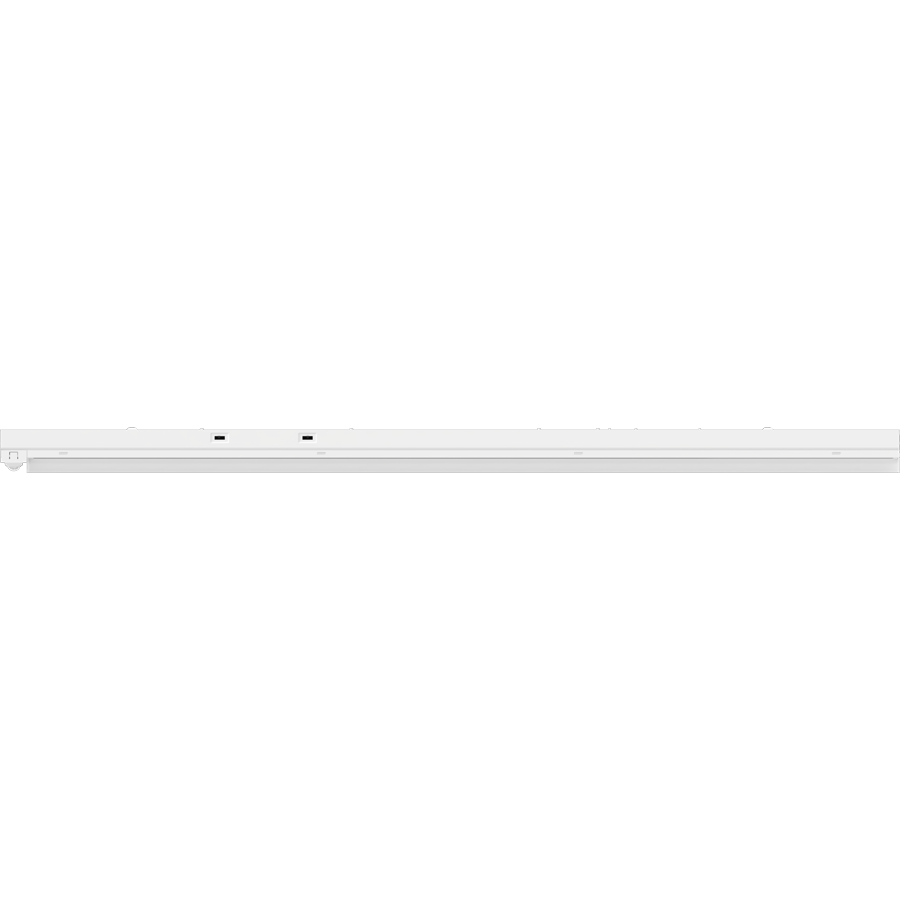

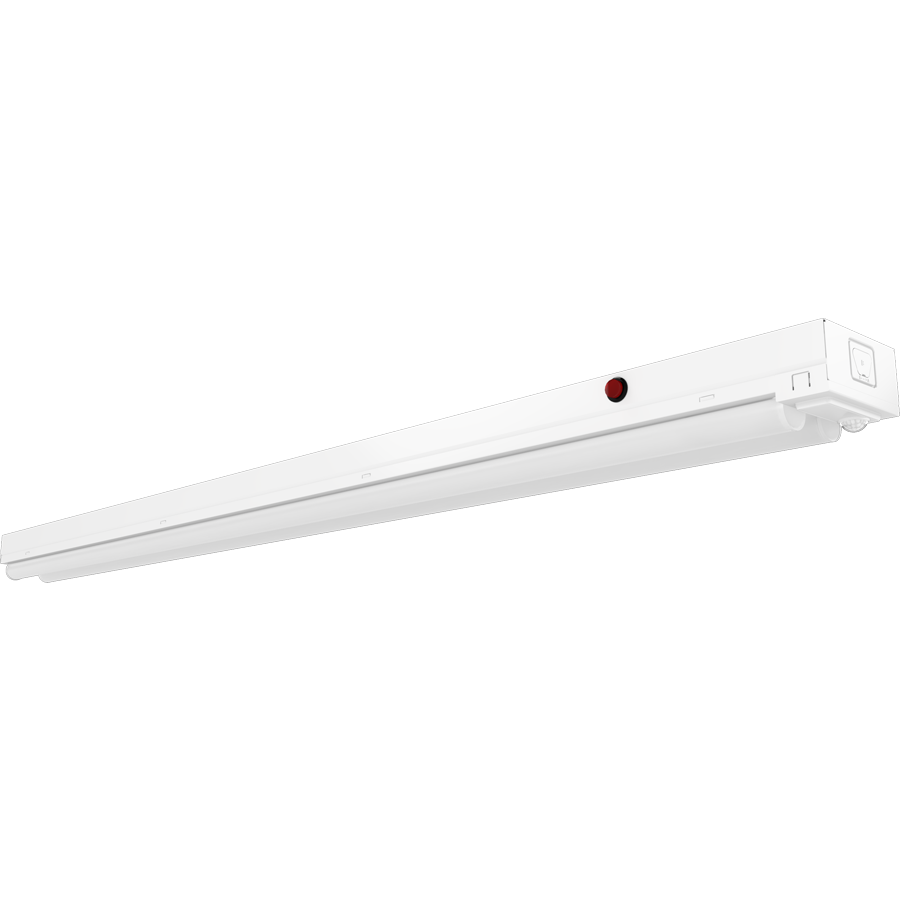

STRP4H/PIR/E
STRP4H/PIR/E
- 100,000-Hour LED lifespan
- 120-277V standard
- 0-10V dimming, standard
- 5-Year, limited warranty
Performance
| Watts | 40/30/20W |
| Color Temp | 3500K/4000K/5000K |
| Lumens | 2924-5815 lm |
| Efficacy | 146.8-160.8 lm/W |
| Color Accuracy | 84-85 CRI |
| L70 Lifespan | 100,000 Hours |
| Type | Constant Current |
| 120V | 0.15A/0.16A/0.23A/0.24A/0.31A/0.32A |
| 208V | 0.11A/0.14A/0.18A |
| 240V | 0.09A/0.12A/0.16A |
| 277V | 0.08A/0.11A/0.14A |
| Input Watts | 18.7-38.1W |
Dimensions
Weight: 5.5 lbs
Technical Specifications
Field Adjustability
Field Adjustable
Field Adjustable Light Output:
40/30/20W (factory default 20W)
Color temperature selectable by 3500/4000/5000 (factory default 4000K)
40/30/20W (factory default 20W)
Color temperature selectable by 3500/4000/5000 (factory default 4000K)
Compliance
UL Listed
Suitable for damp locations
IESNA LM-79 & LM-80 Testing
RAB LED luminaires and LED components have been tested by an independent laboratory in accordance with IESNA LM-79 and LM-80.
CCEA Compliant
Luminaire Requirements used in Environmental Air Space per the electrical code specification of the City of Chicago
DLC Listed
This product is on the Design Lights Consortium (DLC) Qualified Products List and is eligible for rebates from DLC Member Utilities. Designed to meet DLC 5.1 requirements.
DLC Product Code: S-X0GP4X
DLC Product Code: S-X0GP4X
LED Characteristics
LEDs
Long-life, high-efficacy, discrete, surface-mount LEDs
Color Consistency
4-step MacAdam Ellipse binning to achieve consistent fixture-to-fixture color
Color Uniformity
RAB's range of Correlated Color Temperature follows the guidelines of the American National Standard for Specifications for the Chromaticity of Solid State Lighting (SSL) Products, ANSI C78.377-2017.
Performance
Lifespan
100,000-Hour LED lifespan based on IES LM-80 results and TM-21 calculations
Electrical
Driver
Constant Current, Class 2, 120-277V, 50/60 Hz:
40W: 120V: 0.333A, 208V: 0.192A, 240V: 0.167A, 277V: 0.144A
30W: 120V: 0.250A, 208V: 0.144A, 240V: 0.125A, 277V: 0.108A
20W: 120V: 0.167A, 208V: 0.096A, 240V: 0.083A, 277V: 0.072A
40W: 120V: 0.333A, 208V: 0.192A, 240V: 0.167A, 277V: 0.144A
30W: 120V: 0.250A, 208V: 0.144A, 240V: 0.125A, 277V: 0.108A
20W: 120V: 0.167A, 208V: 0.096A, 240V: 0.083A, 277V: 0.072A
Dimming Driver
Driver includes dimming control wiring for 0-10V dimming systems. Requires separate 0-10V DC dimming circuit. Dims down to 10%.
THD
9.82% at 120V, 6.68% at 277V
Power Factor
99.3% at 120V, 95.3% at 277V
Aux Power Supply
Yes
Dim to Off
Yes
Surge Protection
DM: 1 kV
CM: 2 kV
CM: 2 kV
Battery Backup
Battery backup will operate the fixture for 90 minutes if power fails. Wired for 120-277V.
Battery Backup Light Loss Factor
40W: 10%
30W: 13.3%
20W: 20%
30W: 13.3%
20W: 20%
Construction
Cold Weather Starting
The minimum starting temperature is 0°C (32°F)
Maximum Ambient Temperature w/Battery Backup
Suitable for use in up to 104°F (40°C)
Lens
Polycarbonate lens
Housing
Metal
Reflector
Metal
Green Technology
Mercury and UV free. RoHS-compliant components.
Installation
Mounting
Surface mounting standard. V-Hooks and Chain mounting available (ordered separately, SR VHOOK KIT).
Sensor Settings
PIR Sensor Factory Settings
Brightness: 100%
Hold Time: 1 Minute
Daylight: Disabled
Senstivity: 100%
Stand-By Dimming Level: 20%
Stand-By Time: 1 Minute
Hold Time: 1 Minute
Daylight: Disabled
Senstivity: 100%
Stand-By Dimming Level: 20%
Stand-By Time: 1 Minute
Operating Voltage
12 ± 2V DC
Operating Current
30mA
Output
DIM 0-10V
Stand-By Power
<0.5W
Brightness
0%-100%/Quick setting: 70%/80%/90%/100%
Hold Time
10s/1min/10min/30min
Daylight Threshold
10Lux/30Lux/50Lux/100Lux/Disable
Lux On-Off
Adopted dual PD technology. GUS17-PIR is able to differenciate artificial light brightness from natural light after installed inside.
Stand-By Time
1min/30min/60min/+∞
Stand-By Dimming Level
10%/20%/30%/50%
Detection Angle
≤120° (wall mounted) 360° (ceiling mounted)
Control Line
Black White 12V+ ; Purple: DIM+ ; Pink GND/DIM-
Mounting Height
Max 6M (ceiling mounted)
Detection Range
Max 8m (ceiling mounted) Max 6m(wall mounted)
Operating Temperature
-30°C to 60°C (-22°F to 140°F)
Other
5-Year Limited Warranty
The RAB 5-year, limited warranty covers light output, driver performance and paint finish. RAB's warranty is subject to all terms and conditions found at rablighting.com/warranty.
