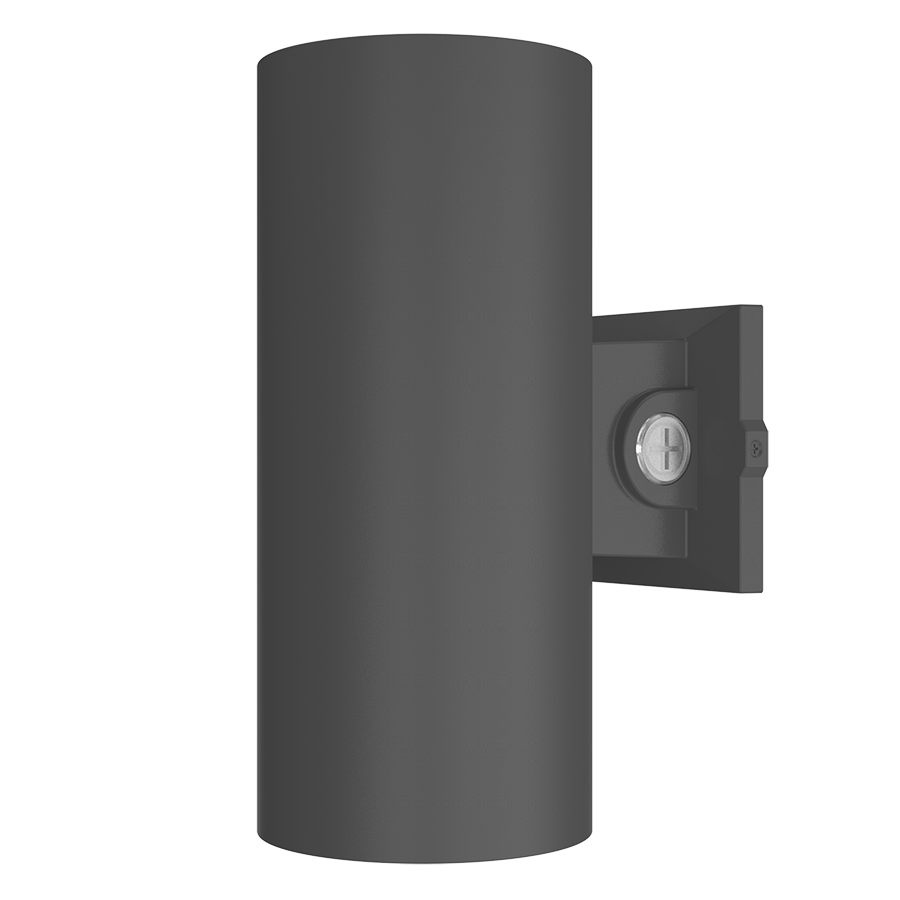

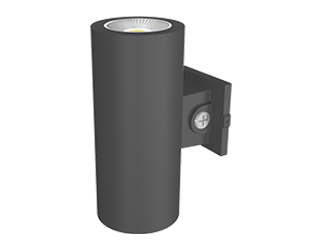

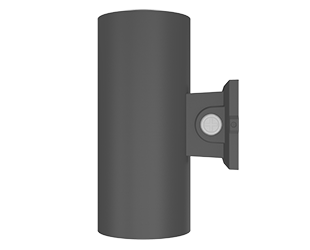

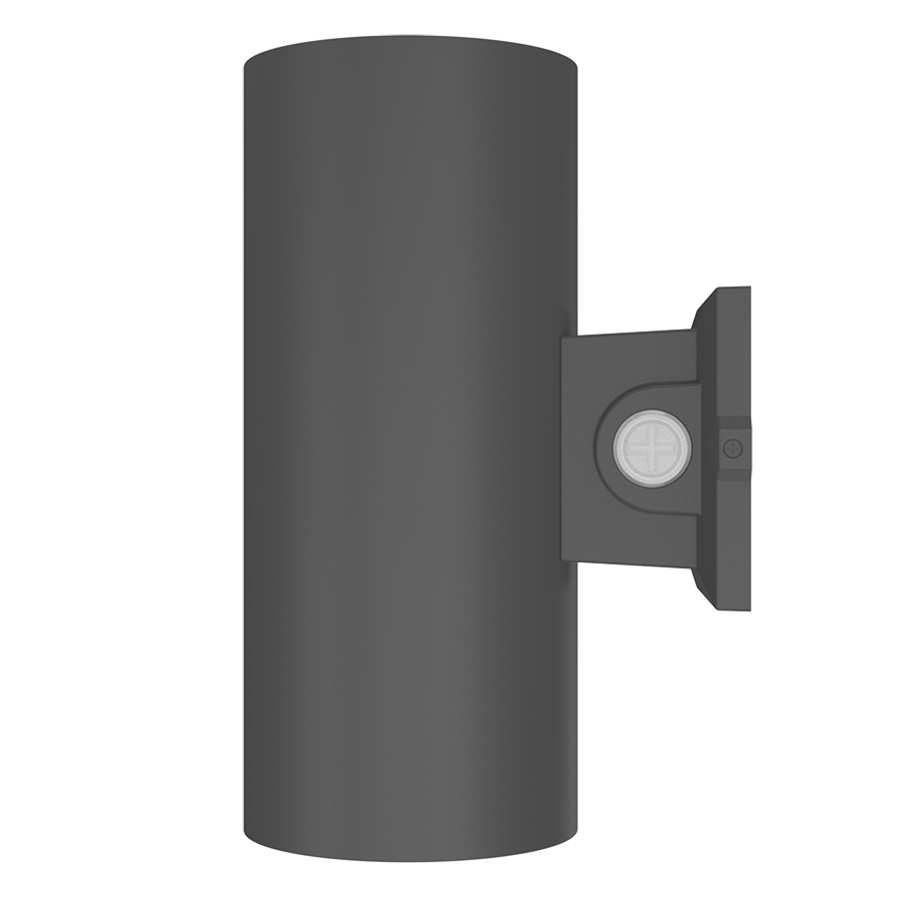

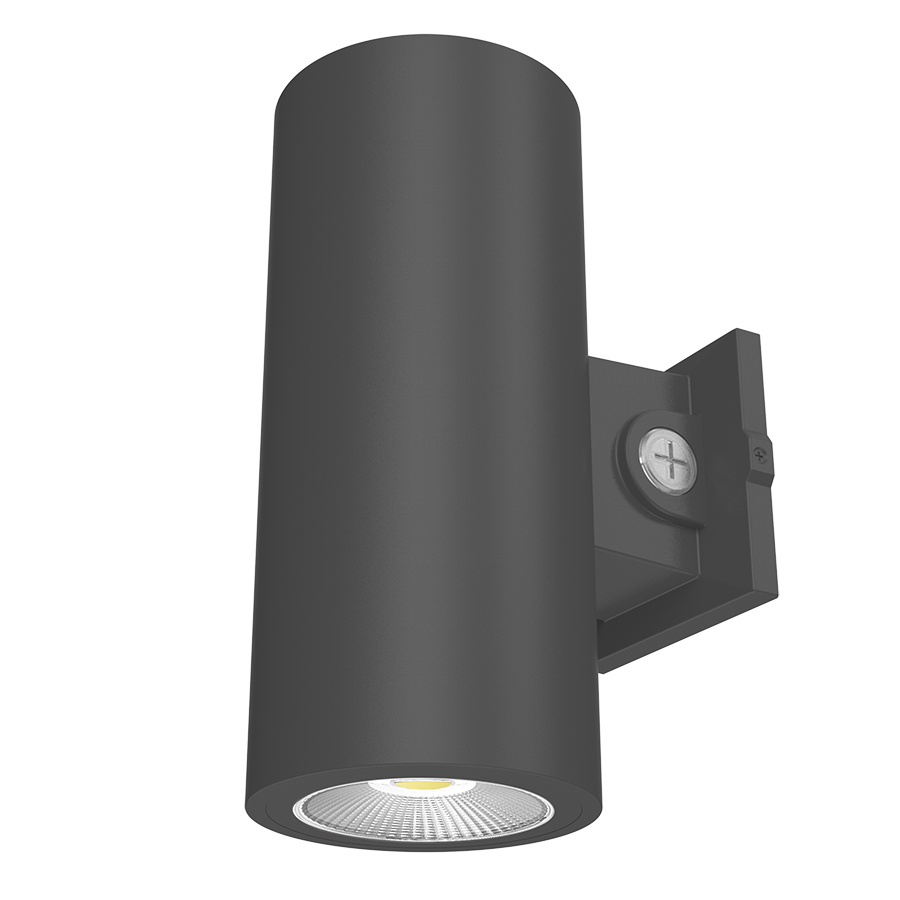

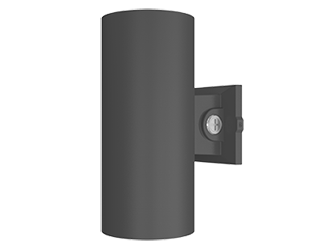

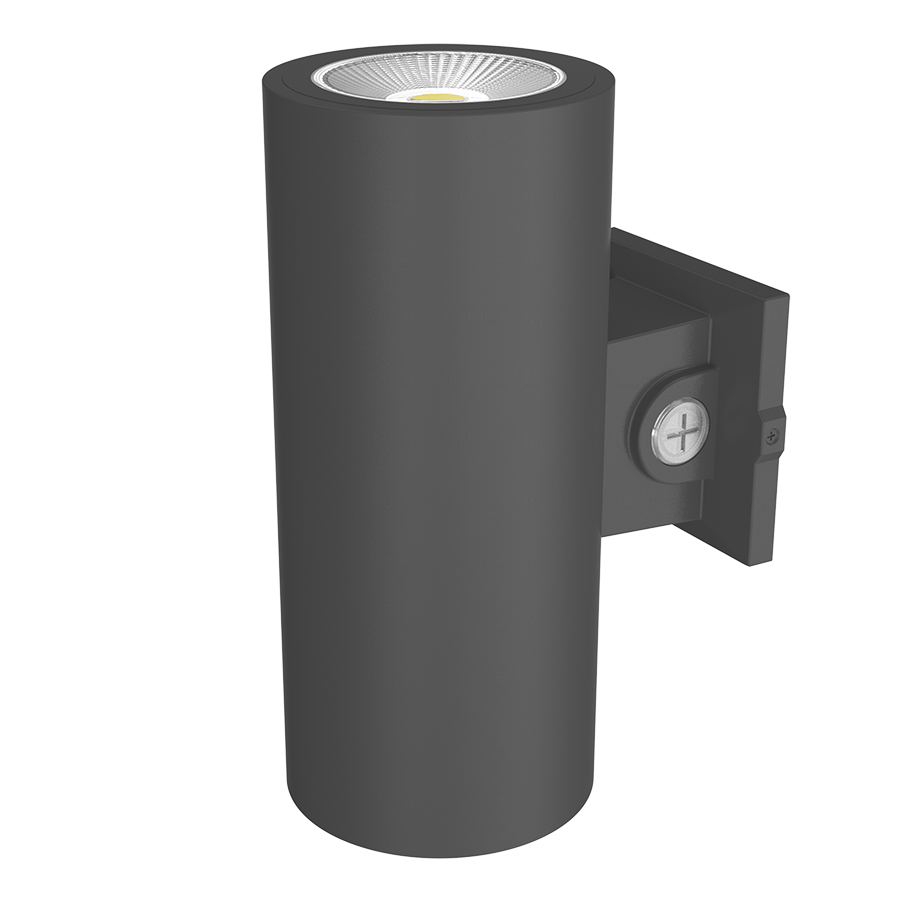

CD34-6WZ
CD34-6WZ
- Aluminum extrusion housing and die-cast covers available in black, bronze, or white
- Field interchangeable optics sold separately for 25°/40°/60° beam angle
- Field-adjustable color temperature 3000/4000/5000K (indoor); 2700/3000/3500/4000/5000K (outdoor).
- Dimmable on 0-10V systems (indoor); integrated photocell (outdoor)
Performance
| Watts | 36/28/22W |
| Color Temp | 3000/4000/5000K |
| Lumens | 3300/2750/2100 lm |
| Efficacy | 95 |
| Color Accuracy | 90 CRI |
| L70 Lifespan | 50,000 Hours |
| Type | Constant Current |
| 120V | 0.30A |
| 208V | 0.17A |
| 240V | 0.15A |
| 277V | 0.13A |
| Input Watts | 36/28/22W |
Dimensions
Weight: 6.3 lbs
Technical Specifications
Performance
Product Type
Cylinder Wall Mount
Description
Economical cylinders with field-adjustable color temperature, power, and light distribution, along with field-swappable optics to fit any indoor or outdoor application.
Wattage Equivalency
200W/180W/140W
Input Wattage
36/28/22W
Nominal Lumens
3300/2750/2100lm
Efficacy (±10%)
95lm/W
L70 Lifespan
50,000-Hour LED lifespan based on IES LM-70 results
Electrical
Driver
Constant Current, 50-60 Hz, 120V-277V
THD
≤20%
Power Factor
≥0.9
Dimmable
Yes, dimmable down to 5% on compatible 0-10V dimming systems. See Dimmer Compatibility List. Requires separate 0-10V DC dimming circuit.
Input Voltage
120-277V
Operating Frequency
50/60Hz
Input Current @ 120V (mA)
300mA
Input Current @ 208V (mA)
169mA
Input Current @ 240V (mA)
146mA
Input Current @ 277V (mA)
127mA
Operating Temperature
-40°F to 120°F (-40°C to 45°C)
Flicker
≤1%
Photocell
Integrated photocell included with on/off switch
LED Characteristics
Beam Angle
60° (installed)
Field swappable optics sold separately for 25°/40°/60° beam angle_
Field swappable optics sold separately for 25°/40°/60° beam angle_
Light Distribution
Selectable dip switch for up, down, or up/down light
Color Temperature
3000/4000/5000K
Color Accuracy (CRI)
90 CRI
R9 Value
High color performance with R9 greater than 0
Color Consistency
<6-step MacAdam Ellipse binning to achieve consistent fixture-to-fixture color
Color Stability
LED color temperature is warrantied to shift no more than 200K in color temperature over a 5-year period
Color Uniformity
RAB's range of Correlated Color Temperature follows the guidelines of the American National Standard for Specifications for the Chromaticity of Solid State Lighting (SSL) Products, ANSI C78.377-2017.
Installation
Mounting
Wall mount
Construction
Size
6"
Shape
Cylinder
Finish
Bronze
Enclosure Material
Die-cast aluminum and polycarbonate
Lens Finish
Clear (installed)
Frosted lens accessory sold separately
Frosted lens accessory sold separately
Compliance
Listings
UL Listed
Environment
Suitable for use indoors and outdoors in dry, damp, or wet environments.
Fixture Rating
Suitable for use in open fixtures
IP Rating
IP65
Certification Model Number
CD2003(CD34-6WZ)
California Title 20 Compliant
No
California Title 24 JA8 Compliant
No
California Energy Commission (CEC) Status
Lawful for Sales in California
IESNA LM-79 & LM-80 Testing
RAB LED luminaires and LED components have been tested by an independent laboratory in accordance with IESNA LM-79 and LM-80.
RoHS
Mercury and UV free. RoHS-compliant components.
FCC
Complies with Part 15 of the FCC Rules
Other
Compatible Accessories
CD34REF-625D
25° reflector
CD34REF-640D
40° reflector
CD34REF-660D
60° reflector
CD34LENS-6FRW
6" frosted lens white
CD34LENS-6FRK
6" frosted lens black
CD34LENS-6FRZ
6" frosted lens bronze
25° reflector
CD34REF-640D
40° reflector
CD34REF-660D
60° reflector
CD34LENS-6FRW
6" frosted lens white
CD34LENS-6FRK
6" frosted lens black
CD34LENS-6FRZ
6" frosted lens bronze
5-Year Limited Warranty
The RAB 5-year, limited warranty covers light output, driver performance and paint finish. RAB's warranty is subject to all terms and conditions found at rablighting.com/warranty.
