CD34FA4W-20-508-KC
CD34FA4W-20-508-KC
- Aluminum extrusion housing and die-casting covers
- Field adjustable light output, select from up/down/both
- Field adjustable color temperatures between 5000/4000/3000K
- Integrated photocell
- IP65 rated
Performance
| Watts | 20W |
| Color Temp | Field Adjustable 3000K/4000K/5000K |
| Lumens | 1,693 lm |
| Efficacy | 94 |
| Color Accuracy | 80 CRI |
| L70 Lifespan | 100,000 Hours |
| Type | Constant Current |
| 120V | 0.18A |
| 208V | 0.11A |
| 240V | 0.09A |
| 277V | 0.08A |
| Input Watts | 20W |
Dimensions
Weight: 3.3 lbs
Technical Specifications
Performance
Description

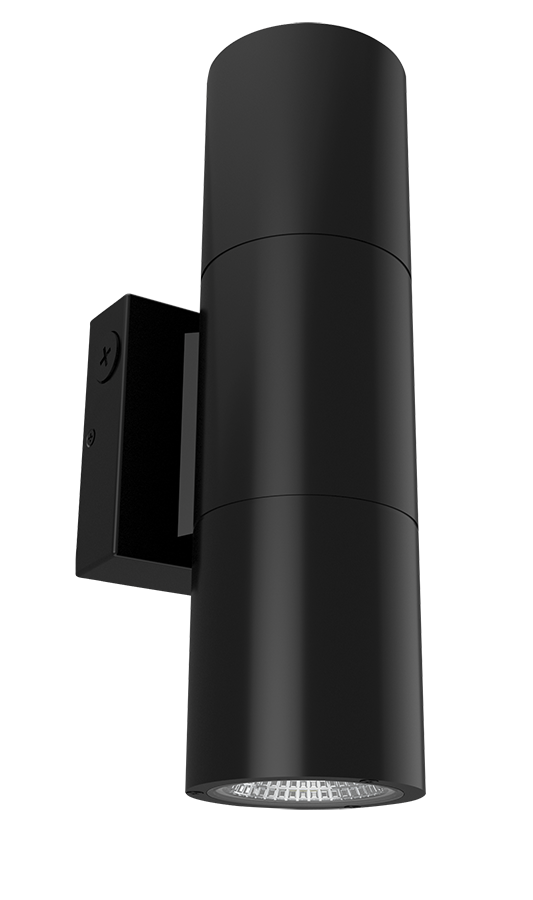

This 4-inch CD34 cylinder with integrated photocell is ideal for wall mounting in outdoor applications. Field adjustable light output (up/down/both) and color temperature (3000/4000/5000K).
Product Type
Economy Cylinder
Wattage Equivalency
Equivalent to 100W Incandescent
Input Wattage
20W
Lumens
1,693lm
Efficacy
94lm/W
Note
Lumens and efficacy values are based on the highest wattage output at 3000K
L70 Lifespan
100,000-Hour LED lifespan based on IES LM-70 results
Electrical
Driver
Constant Current, Non-Isolated Driver, 50/60 Hz, 120-277V, 120V: 0.18A, 208V: 0.11A, 240V: 0.09A, 277V: 0.08A
THD
<20%
Power Factor
>0.9
Dimmable
No
Input Voltage
120-277V
Operating Frequency
50/60Hz
Operating Temperature
-22°F to 122°F (30°C to 50°C)
Flicker
<30%
LED Characteristics
LEDs
LED array provides a uniform source with high efficiency and no pixilation
Color Temperature
Field Adjustable: 5000K/4000K/3000K
Color Accuracy (CRI)
80 CRI
R9 Value
High color performance with R9 less than or equal to 1
Color Consistency
<5-step MacAdam Ellipse binning to achieve consistent fixture-to-fixture color
Installation
Mounting
Wall mount
Construction
Size
4"
Shape
Cylinder
Finish
Formulated for high durability and long-lasting color
Housing Material
Cylinder aluminum extrusion/cover aluminum die casting
Gaskets
Gasket included can achieve restrictive airflow and wet location without any additional gasket or caulk
Lens
Regressed lens constructed from impact resistant polycarbonate. Convex lens gives the optic a similar lamp-like appearance. Provides smooth and diffuse light distribution.
Lens Finish
Clear
Optical
Beam Angle
50°
Compliance
Indoor/Outdoor
Suitable for indoor and outdoor use
Environment
Suitable for use in dry, damp, and wet environments.
Fixture Rating
Open
Energy Star Approved
ENERGY STAR® Version 2.2 Certified
Energy Star ID
2400418
Certification Model Number
CD1004(CD34FA4W-20-508-KC)
California Energy Commission (CEC) Status
Lawful for Sales in California
IESNA LM-79 & LM-80 Testing
RAB LED luminaires and LED components have been tested by an independent laboratory in accordance with IESNA LM-79 and LM-80.
RoHS
Mercury and UV free. RoHS-compliant components.
FCC
Complies with Part 15B of the FCC Rules
Other
5 Yr Limited Warranty
The RAB 5-year, limited warranty covers light output, driver performance and paint finish. RAB's warranty is subject to all terms and conditions found at rablighting.com/warranty.
Note
All values are typical (tolerance +/- 10%)
Buy American Act Compliance
RAB values USA manufacturing! Upon request, RAB may be able to manufacture this product to be compliant with the Buy American Act (BAA). Please contact customer service to request a quote for the product to be made BAA compliant.
