CD34FA6SP-30-709-WC
CD34FA6SP-30-709-WC
- Aluminum extrusion housing and die-casting covers
- Field adjustable color temperatures between 5000/4000/3500/3000/2700K
- Smooth, diffused downward light output
- Pendant mount accessory sold separately
- 0-10V dimming
- 90 CRI provides high color rendering
Performance
| Watts | 30W |
| Color Temp | Field Adjustable 2700K/3000K/3500K/4000K/5000K |
| Lumens | 2,348 lm |
| Efficacy | 81 |
| Color Accuracy | 90 CRI |
| L70 Lifespan | 100,000 Hours |
| Type | Constant Current |
| 120V | 0.27A |
| 208V | 0.17A |
| 240V | 0.14A |
| 277V | 0.12A |
| Input Watts | 30W |
Dimensions
Weight: 6.0 lbs
Technical Specifications
Performance
Description

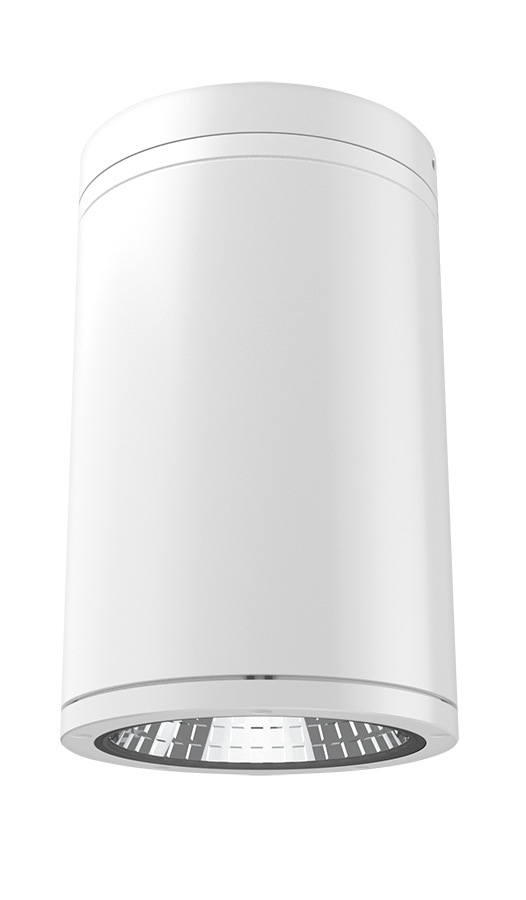

This 6-inch CD34 cylinder is dimmable and ideal for surface or pendant mounting in indoor applications. This fixture provides superior downward facing light with a clear lens and field adjustable color temperates from 5000/4000/3500/3000/2700K
Product Type
Economy Cylinder
Wattage Equivalency
Equivalent to 150W Incandescent
Input Wattage
30W
Lumens
2,348lm
Efficacy
81lm/W
Note
Lumens and efficacy values are based on the highest wattage output at 3000K
L70 Lifespan
100,000-Hour LED lifespan based on IES LM-70 results
Electrical
Driver
Constant Current, Non-Isolated Driver, 50/60 Hz, 120-277V, 120V: 0.27A, 208V: 0.17A, 240V: 0.14A, 277V: 0.12A
Dimming Driver
Driver includes dimming control wiring for 0-10V dimming systems. Requires separate 0-10V DC dimming circuit. Dims down to 5%.
THD
<20%
Power Factor
>0.9
Dimmable
Yes, 0-10V continuous dimming
Input Voltage
120-277V
Operating Frequency
50/60Hz
Operating Temperature
-22°F to 122°F (30°C to 50°C)
Flicker
<30%
LED Characteristics
LEDs
LED array provides a uniform source with high efficiency and no pixilation
Color Temperature
Field Adjustable: 2700K,3000K,3500K,4000K,5000K
Color Accuracy (CRI)
90 CRI
R9 Value
High color performance with R9 greater than or equal to 50
Color Consistency
<4-step MacAdam Ellipse binning to achieve consistent fixture-to-fixture color
Installation
Mounting
Surface Mount. Pendant mount accessories available (sold separately).
Construction
Size
6"
Shape
Cylinder
Finish
Formulated for high durability and long-lasting color
Housing Material
Cylinder aluminum extrusion/cover aluminum die casting
Lens
Regressed lens constructed from impact resistant polycarbonate. Convex lens gives the optic a similar lamp-like appearance. Provides smooth and diffuse light distribution.
Lens Finish
Clear
Optical
Beam Angle
70°
Compliance
Indoor/Outdoor
Suitable for indoor and outdoor use
Environment
Suitable for use in dry, damp, and wet environments.
Fixture Rating
Open
Energy Star Approved
ENERGY STAR® Version 2.2 Certified
Certification Model Number
CD1017(CD34FA6SP-30-709-WC)
California Energy Commission (CEC) Status
Lawful for Sales in California
IESNA LM-79 & LM-80 Testing
RAB LED luminaires and LED components have been tested by an independent laboratory in accordance with IESNA LM-79 and LM-80.
RoHS
Mercury and UV free. RoHS-compliant components.
FCC
Complies with Part 15B of the FCC Rules
Other
Accessories
CD34STEM-W
White stem for pendant mount
White stem for pendant mount
5 Yr Limited Warranty
The RAB 5-year, limited warranty covers light output, driver performance and paint finish. RAB's warranty is subject to all terms and conditions found at rablighting.com/warranty.
Note
All values are typical (tolerance +/- 10%)
Buy American Act Compliance
RAB values USA manufacturing! Upon request, RAB may be able to manufacture this product to be compliant with the Buy American Act (BAA). Please contact customer service to request a quote for the product to be made BAA compliant.
