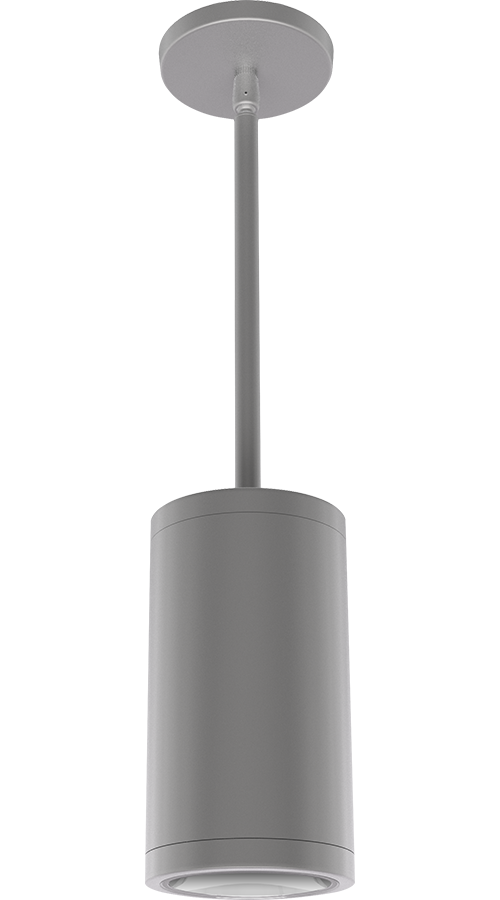

CDLED4PS-20W-80D935-S
CDLED4PS-20W-80D935-S
- Sleek, contemporary, architectural-grade design
- Universal dimming driver (TRIAC, ELV and 0-10V)
- 50,000-Hour LED lifespan
Performance
| Watts | 20W |
| Color Temp | 3500K (Warm Neutral) |
| Lumens | 1,700 lm |
| Efficacy | 85.4 lm/W |
| Color Accuracy | 92 CRI |
| L70 Lifespan | 50,000 Hours |
| Type | Constant Current |
| 120V | 0.18A |
| 208V | 0.11A |
| 240V | 0.10A |
| 277V | 0.09A |
| Input Watts | 19.9W |
Dimensions
Weight: 6.2 lbs
Technical Specifications
Compliance
UL Listed
Suitable for wet locations
IESNA LM-79 & LM-80 Testing
RAB LED luminaires and LED components have been tested by an independent laboratory in accordance with IESNA LM-79 and LM-80.
Electrical
Driver
Constant Current, Class 2, 120-277V, 50/60 Hz, 120V: 0.18A, 208V: 0.11A, 240V: 0.10A, 277V: 0.09A
Dimming Driver
0 - 10V (at 120-277V), TRIAC and ELV (at 120V only)
THD
12.1% at 120V, 21.9% at 277V
Power Factor
98.5% at 120V, 88% at 277V
Optical
Optics
80°
Performance
Lifespan
50,000-Hour LED lifespan based on IES LM-80 results and TM-21 calculations
LED Characteristics
LEDs
Long-life, high-efficacy, surface-mount LEDs
Color Stability
LED color temperature is warrantied to shift no more than 200K in color temperature over a 5-year period
Construction
Cold Weather Starting
The minimum starting temperature is -30°C (-22°F)
Maximum Ambient Temperature
Suitable for use in up to 40°C (104°F)
Lens
Solite Glass Lens and Microprismatic Diffusion Lens
Reflector
Vacuum-metalized polycarbonate
Housing
Extruded aluminum
Gaskets
High-temperature silicone
Green Technology
Mercury and UV free. RoHS-compliant components.
Finish
Formulated for high durability and long-lasting color
Installation
Mounting
Pendant stem (comes with components to create 12", 24", 36" or 48" in field)
Other
Warranty
RAB warrants that our LED products will be free from defects in materials and workmanship for a period of five (5) years from the date of delivery to the end user, including coverage of light output, color stability, driver performance and fixture finish. RAB's warranty is subject to all terms and conditions found at rablighting.com/warranty.
Recently Viewed Products
CDLED4PS-20W-80D935-S
Cylinders 1700 Lumens Cdled 20W 4 Inches With Pendant Stem 90Cri 3500K Matte Silver
SWISH2X4-39N/D10/LCB/E2
Panels & Troffers 5436 Lumens Swish2X4 39W 4000K 0-10V Dimming 120V-277V Lightcloud Blue Controller Battery Backup
RDDLED2R-10D-20YNHC-M-BTL
Recessed Downlights 769 Lumens Rddled 2 Inches Round 10W Dimmable 20 Degree 3500K 90Cri Matte Trim Cone Black Trim Ring Trimless
IVAT5S-100LSF730GU/WS
Area Lights 10032 Lumens Ivat5S Type V Square 94W Slipfitter Mount 70Cri 3000K Roadway Gray 120V-277V 0-10V Dimming 8 Feet Lens Wattstopper Sensor
GN3LED26YRST11W
Decorative 1348 Lumens Gooseneck 26W 3000K Up Curve 30 Inches High & 25 Inches From The Wall Straight Shade Rectangular 11 Inches White
CDLED4PS-20W-80D935-S
Cylinders 1700 Lumens Cdled 20W 4 Inches With Pendant Stem 90Cri 3500K Matte Silver

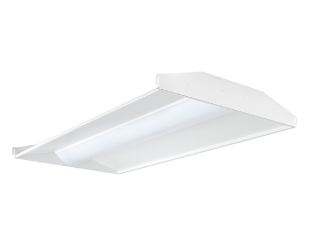

SWISH2X4-39N/D10/LCB/E2
