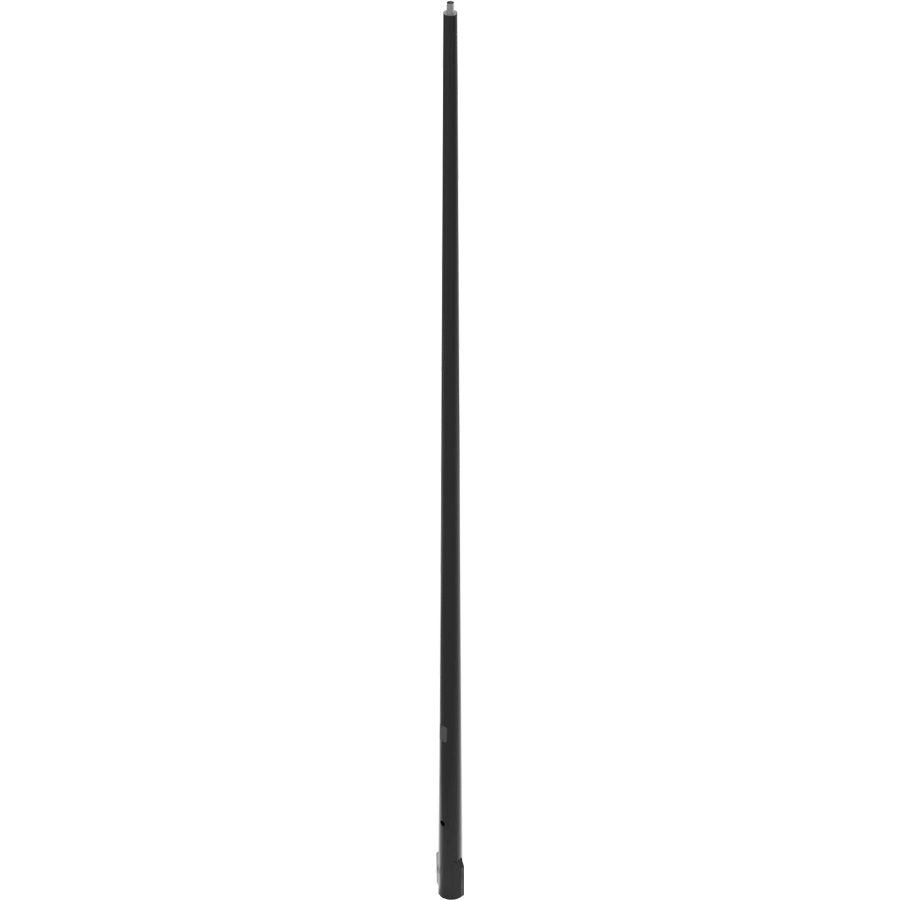

CDTR5-25WT

Spec Sheet Sell Sheet Family Spec Sheet Spec Sheet

CDTR5-25WT

Complies with Buy America Act

2-Year, limited warranty

View Technical Specs

View Price & Availability

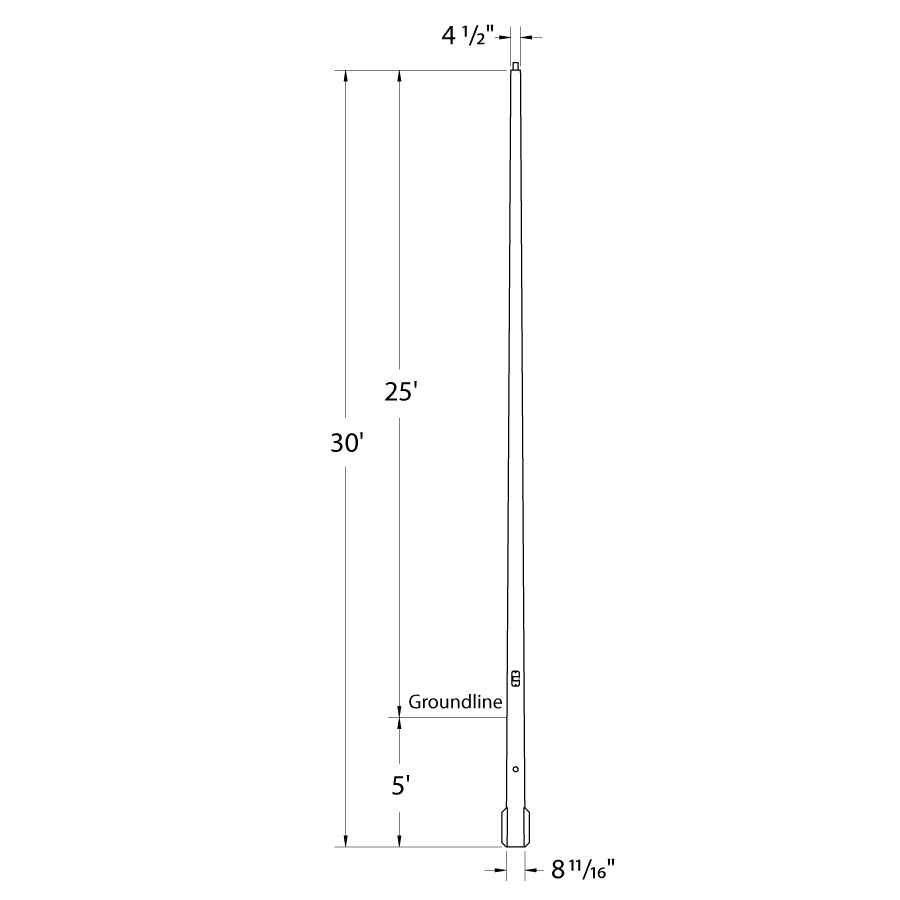

Dimensions

Weight: 82.0 lbs

Technical Specifications

Compliance

Buy American Act Compliance

This product complies with the Buy American Act

The Build America, Buy America Act (BABA)

Light poles meet The Build America, Buy America Act (BABA) (Pub. L. No. 117- 58, §§ 70901-52).

Construction

Pole Material

Reinforced fiberglass

Maximum EPA Per Wind Zone

90 mph: 10.8
100 mph: 7.6
110 mph: 5.8
120 mph: 4.5
130 mph: 3.7
140 mph: 3.5
150 mph: 2.9
160 mph: 2.4
170 mph: 1.9
180 mph: 1.6

Burial Height

5 ft

Height

25 ft

Shape

Round Tapered

Finish

All poles come with bronze finish and 3-layer of protection against UV degradation. The thrird layer is the thermally bonded outer coating.

Pole Drilling

All poles HH covers and cable entry are factory drilled

Cable Entry

Cable entry provided on the direct burial poles with a diameter of 2 1/4"

Hand Hole and Covers

2 1/2" x 5" hand hole is standard for all the poles and are located at 18" above ground level. The hand hole covers are made of durable, weather resistant material.

Tenons

The aluminum tenon is pre-assembled to the pole before shipping.

Integral Anti Rotation Flange

Direct bury poles comes with an integral anti rotation flange

Other

2-Year Limited Warranty

The RAB 2-year, limited warranty covers light output, driver performance and paint finish. RAB's warranty is subject to all terms and conditions found at rablighting.com/warranty.

Accessories

Poles are shipped with tenon. The anchor bolt kit, base covers for round poles are sold separately BOLT4/7: Anchor bolt kit for round poles. BCK-CP-R: Round composite pole base cover.

Terms of Sale

Pole Terms of Sale is available online.
