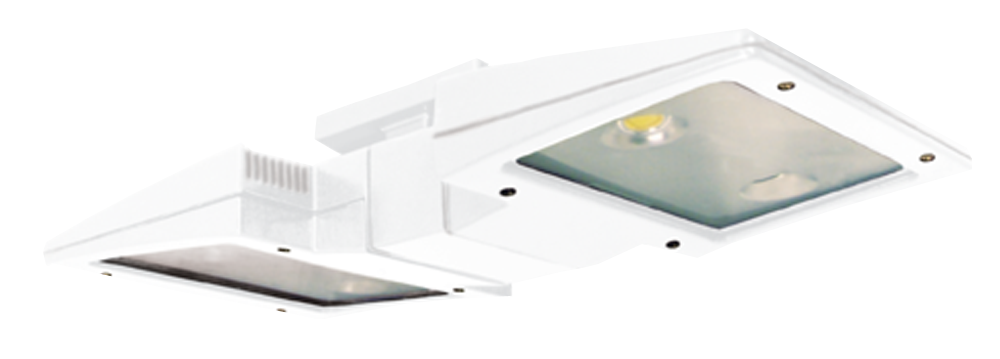

• Flush mount fixture bracket
  • Die cast aluminum lens frame with tempered glass and double gasketing
  • Fully Shielded, Full Cutoff Optics
  • LED Light Engine life delivers 70% of rated lumens at 100,000-hours
  • Great for parking garages, canopies, stairwells and entrance ways
  • LM-70 and LM-80 tested
  • 5-Year, No-Compromise Warranty
View Technical Specs
Performance
Watts 36W
Color Temp 3000K (Warm)
Lumens 3,277 lm
Efficacy 81.5 lm/W
Color Accuracy 82 CRI
L70 Lifespan 100,000 Hours
Type Constant Current
120V 0.48A
208V 0.36A
240V 0.30A
277V 0.24A
Input Watts 40.2W
Dimensions
Link to Dimension Drawing

Weight: 9.5 lbs

Technical Specifications
Compliance
UL Listed
Suitable for wet locations
IESNA LM-79 & LM-80 Testing
RAB LED luminaires have been tested by an independent laboratory in accordance with IESNAlm-79 andlm-80
Performance
Lifespan
100,000-Hour LED lifespan based on IES LM-80 results and TM-21 calculations
Construction
Thermal Management
Cast aluminum Thermal Management system for optimal heat sinking. Designed for cool operation, most efficient output and maximum LED life by minimizing LED junction temperature.
Housing
Precision die-cast aluminum and lens framing.Mounting Accessory
Cold Weather Starting
The minimum starting temperature is -40°F (-40°C)
Maximum Ambient Temperature
Suitable for use in up to 104°F (40°C)
Finish
Formulated for high durability and long-lasting color
Green Technology
Mercury and UV free. RoHS-compliant components.
LED Characteristics
Color Consistency
3-step MacAdam Ellipse binning to achieve consistent fixture-to-fixture color
Color Stability
LED color temperature is warrantied to shift no more than 200K in color temperature over a 5-year period
Color Uniformity
RAB's range of Correlated Color Temperature follows the guidelines of the American National Standard for Specifications for the Chromaticity of Solid State Lighting (SSL) Products, ANSI C78.377-2017.
Other
Patents
The design of the CLED is protected by U.S. Pat. D634872, Canada Pat. 133206, China Pat. ZL201030129122.3, Taiwan Pat. D139372 and Mexico Pat. 32490.
5-Year, No-Compromise Warranty
RAB warrants that our LED products will be free from defects in materials and workmanship for a period of five (5) years from the date of delivery to the end user, including coverage of light output, color stability, driver performance and fixture finish. RAB's warranty is subject to all terms and conditions found at rablighting.com/warranty.
Optical
BUG Rating
B1 U1 G1
Electrical
Driver
(2) Constant Current, Class 2, 100-277V, 50/60 Hz, 4 kV surge protection, 500mA, 100-240VAC 0.3-0.15A, 277VAC 0.15A, Power Factor 99.2
THD
10.5% at 120V
