CLED2X26NMS2
CLED2X26NMS2
- Reduce energy usage with motion sensor technology you can rely on
- LED combined with mini sensor for an all-in-one lighting solution
- Great for small spaces like utility closets and storage rooms
- 5-Year, No-Compromise Warranty
Performance
| Watts | 52W |
| Color Temp | 4000K (Neutral) |
| Lumens | 4,688 lm |
| Efficacy | 79.3 lm/W |
| Color Accuracy | 82 CRI |
| L70 Lifespan | 100,000 Hours |
| Type | Constant Current |
| 120V | 0.48A |
| 208V | |
| 240V | |
| 277V | |
| Input Watts | 59.1W |

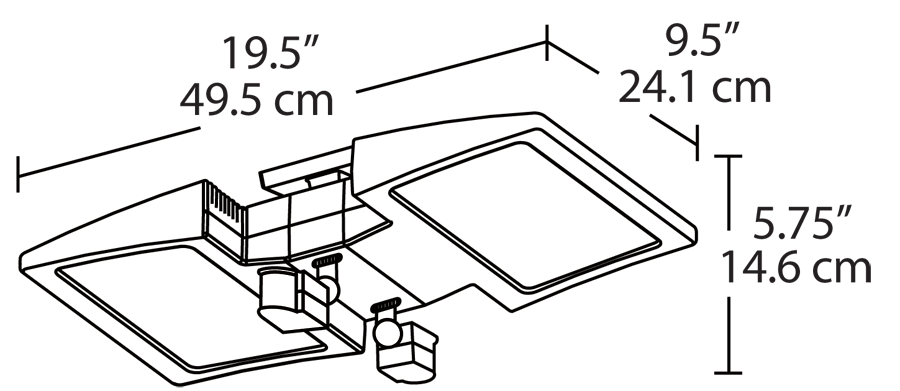

Dimensions
Weight: 9.5 lbs
Technical Specifications
Compliance
UL Listed
Suitable for damp locations
IESNA LM-79 & LM-80 Testing
RAB LED luminaires and LED components have been tested by an independent laboratory in accordance with IESNA LM-79 and LM-80.
Performance
Lifespan
100,000-Hour LED lifespan based on IES LM-80 results and TM-21 calculations
Wattage Equivalency
Equivalent to 175W Metal Halide
Construction
Recommended Mounting Height
8-10'
Cold Weather Starting
The minimum starting temperature is -40°C (-40°F)
Ambient Temperature
Suitable for use in up to 35°C (95°F)
Housing
Precision die-cast aluminum housing and lens framing
Gaskets
High-temperature silicone
Finish
Formulated for high durability and long-lasting color
Green Technology
Mercury and UV free. RoHS-compliant components.
LED Characteristics
LEDs
(4) 13W Multi-chip high output, long-life LED
Color Consistency
3-step MacAdam Ellipse binning to achieve consistent fixture-to-fixture color
Color Stability
LED color temperature is warrantied to shift no more than 200K in color temperature over a 5-year period
Color Uniformity
RAB's range of Correlated Color Temperature follows the guidelines of the American National Standard for Specifications for the Chromaticity of Solid State Lighting (SSL) Products, ANSI C78.377-2017.
Color Temperature
4000K
Other
Patents
RAB CLED2X26 are protected by patents in US pat. D634,879 CN ZL20103067978.
Warranty
RAB warrants that our LED products will be free from defects in materials and workmanship for a period of five (5) years from the date of delivery to the end user, including coverage of light output, color stability, driver performance and fixture finish. RAB's warranty is subject to all terms and conditions found at rablighting.com/warranty.
Buy American Act Compliance
RAB values USA manufacturing! Upon request, RAB may be able to manufacture this product to be compliant with the Buy American Act (BAA). Please contact customer service to request a quote for the product to be made BAA compliant.
Electrical
Voltage
120V AC 60Hz
Drivers (2)
Constant Current, Class 2, 100V-277V, 50/60 Hz, 6kv Surge Protection, 720mA, 100-277VAC 0.8 Amps, THD less than equal to 20%, Power Factor 99.2%.
Sensor Specifications
Sensor Switching Capacity
5 Amps, 450W LED @ 120 Volts 0.8pF Driver; 5 Amps, 300W LED @ 120 Volts 0.5pF Driver.
Sensor Time Adjustment
5 seconds to 15 minutes
Sensor Quick Test Time
5 second test time for fast installation. Works day or night.
Sensor "No Hands" Auto Testing
Auto mode starts after 4 minutes of testing. No adjustment needed.
Sensor Photoelectric Control
Deactivates lights during daylight. Fully adjustable for 24 hour operation or custom applications.
Sensor LED Detection Indicator
LED glows red day & night for "on guard" deterrence
Sensor RF Immunity
Circuits fully shielded for maximum radio frequency immunity
Sensor Ratings
5 amps
Sensor Power Consumption
Negligible
Sensor Manual Switch
None
Sensor Ambient Light Sensing
Adjustable
Sensor Adjustments
Time, ambient light & sensitivity
Sensor Detection
360° detection pattern
Optical
BUG Rating
B2 U1 G1
