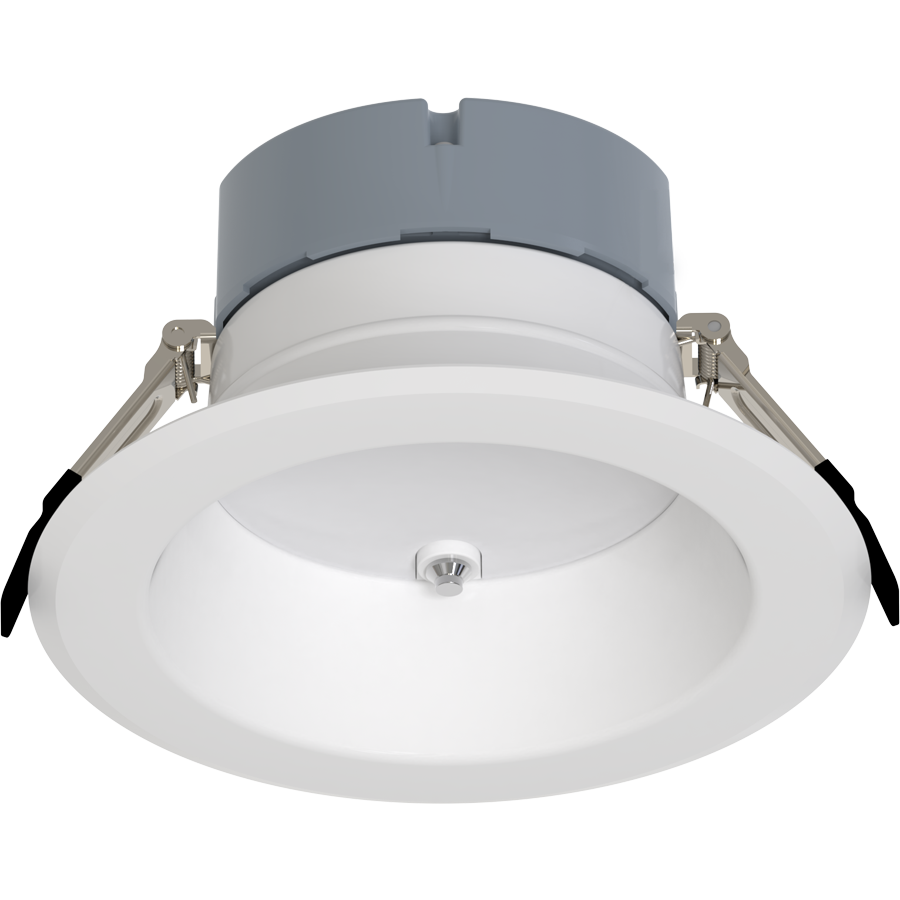

CR6/E
- Universal dimming technology allows for both 120V TRIAC/ELV dimming and 0-10V dimming in 1 SKU for incredible design flexibility
- 3 selectable brightness levels & 5 selectable CCTs (2700/3000/3500/4000/5000K)
- Suitable for new construction & remodel installations
- Deep regress lens for optimal glare control
- Multiple accessories available, including color trims and new construction mounting plates
Performance
| Watts | 22/18/11W |
| Color Temp | 2700/3000/3500/4000/5000K |
| Lumens | 2500/1800/1000 lm |
| Efficacy | 114/100/91 lm/W |
| Color Accuracy | 90 CRI |
| L70 Lifespan | 50,000 Hours |
| Type | Constant Current, Class A |
| 120V | 0.22A |
| 208V | |
| 240V | |
| 277V | 0.10A |
| Input Watts | 22/18/11W |
Dimensions
Weight: 2.6 lbs
Technical Specifications
Performance
Product Type
Commercial Downlight
Description
The CR commercial downlight offers best-in-class flexibility by adding universal dimming, which allows for both TRIAC & 0-10V dimming, making it a great choice for residential & commercial installations.
Wattage Equivalency
52W CFL
Input Wattage
22/18/11W
Efficacy
114/100/91lm/W
L70 Lifespan
50,000-Hour LED lifespan based on IES LM-70 results
Electrical
Driver
Constant Current, Class A 120-277V 50/60 Hz; 120V: 220mA; 277V: 98mA
THD
≤20%
Power Factor
≥0.9
Dimmable
Yes, dimmable down to 10% on compatible TRIAC/ELV and 0-10V dimming systems. See Dimmer Compatibility List.
Input Voltage
120-277V
Operating Frequency
50/60Hz
Operating Temperature
-4°F to 104°F (-20 to 40°C)
Flicker
≤30%
Battery Backup
Integrated, quick connect battery backup system - easy to wire, no separate bulk battery
Emergency Operation
90 minutes
Battery Recharge Time
24 hours
LED Characteristics
Beam Angle
85°±10°
Color Temperature
Default: 2700K

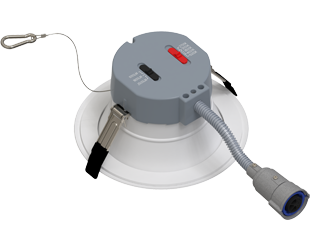

Field adjustable via dip switch 2700/3000/3500/4000/5000K
Field adjustable via dip switch 2700/3000/3500/4000/5000K
Color Tuning
No
Color Accuracy (CRI)
90 CRI
Natural Spectrum
No
R9 Value
High color performance with R9 greater than 50
Color Consistency
<4-step MacAdam Ellipse binning to achieve consistent fixture-to-fixture color
Color Stability
LED color temperature is warrantied to Shift no more than 200K in color temperature over a 5-year period
Color Uniformity
RAB's range of Correlated Color Temperature follows the guidelines of the American National Standard for Specifications for the Chromaticity of Solid State Lighting (SSL) Products, ANSI C78.377-2017.
Installation
Integrated Driver

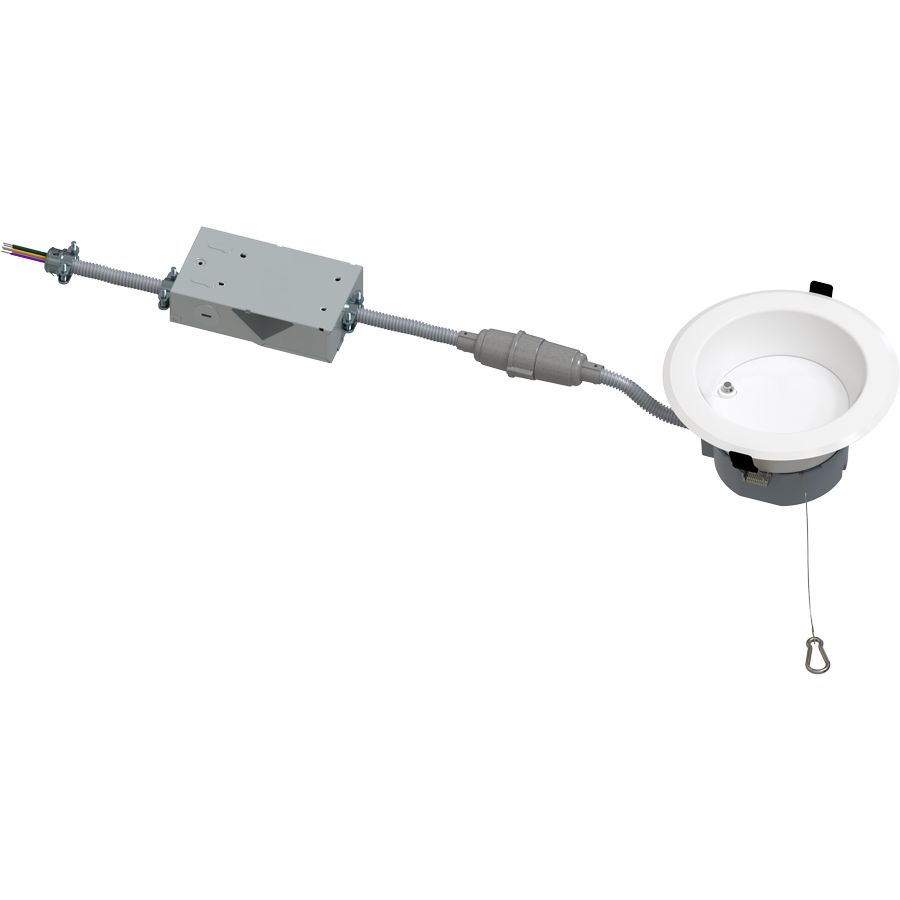

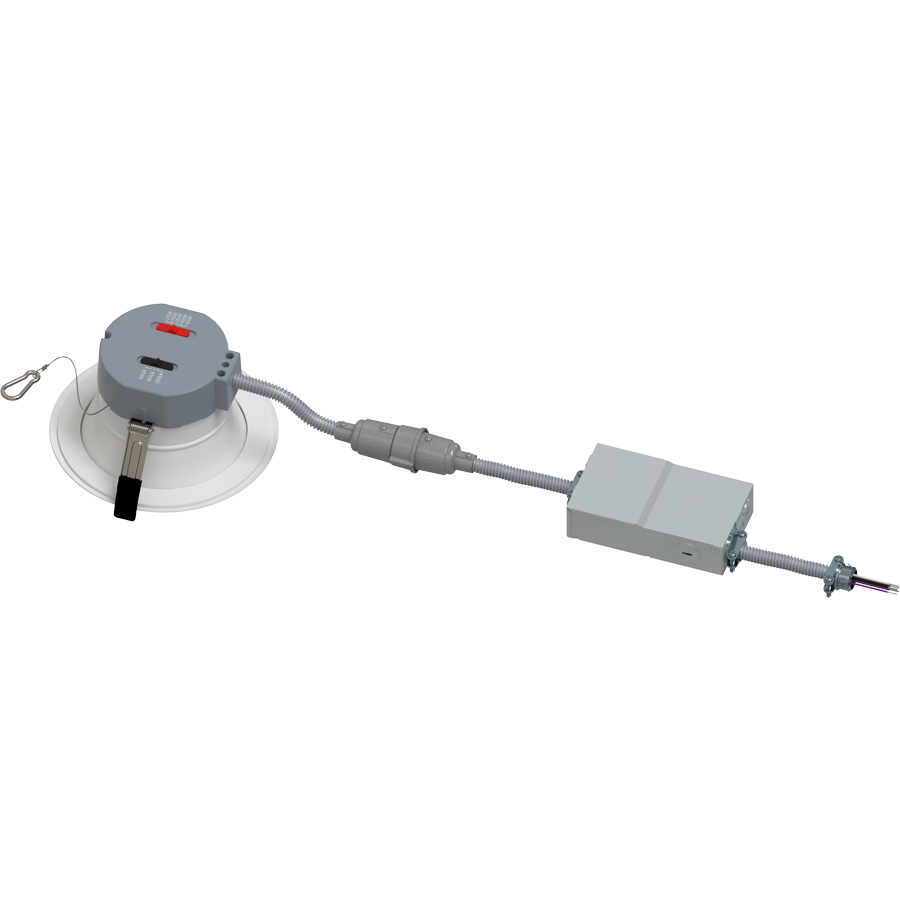

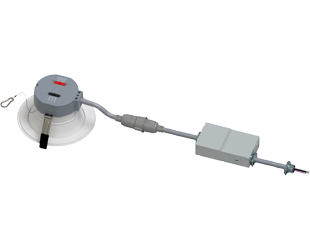

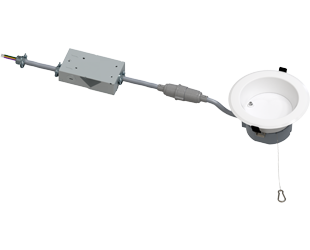

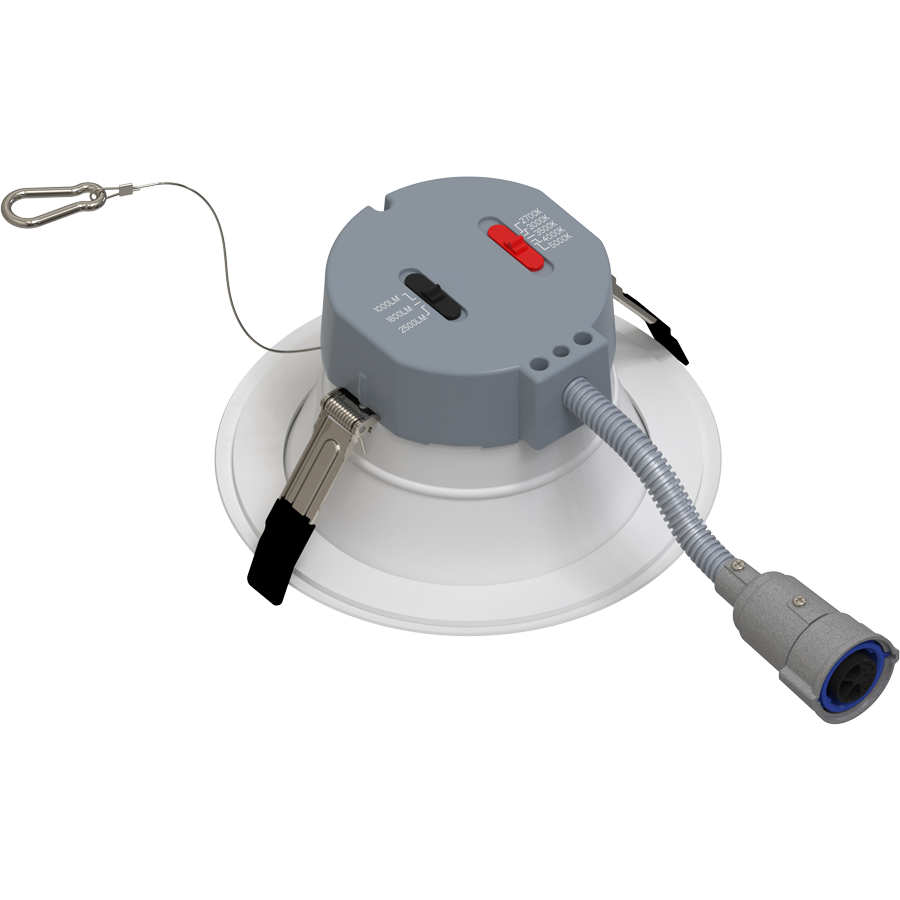

Driver is integrated on top of the light fixture and connects to junction box (not included) using the provided MC Whip cable.
Mounting

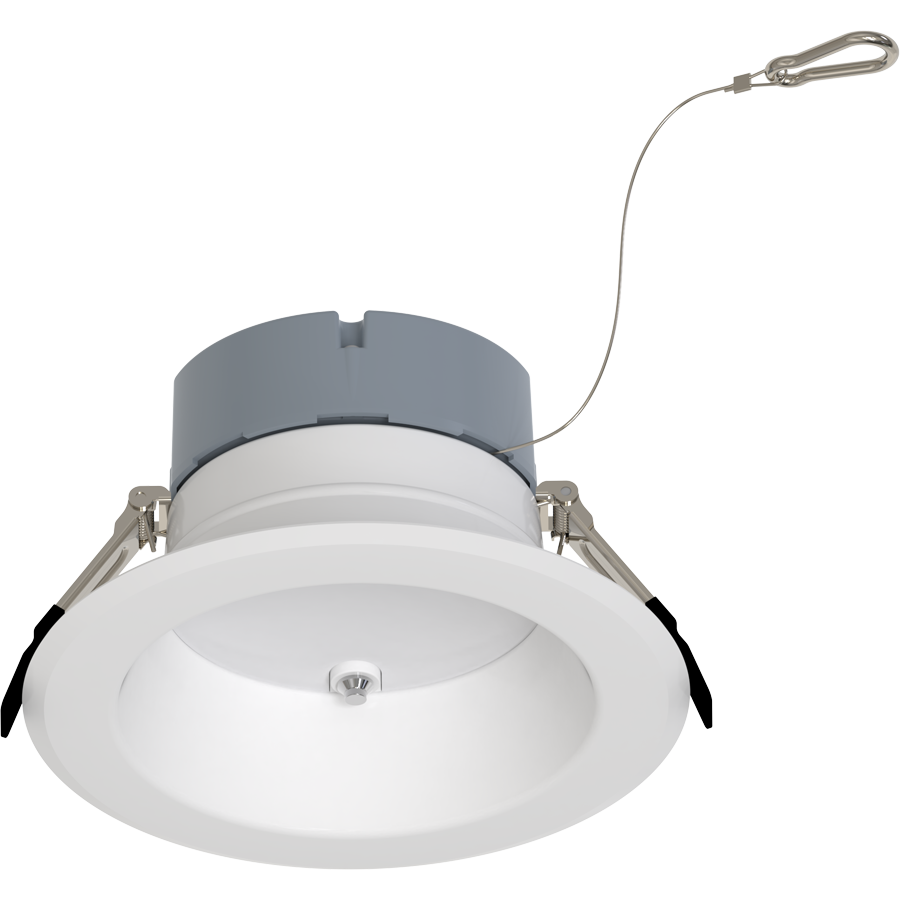

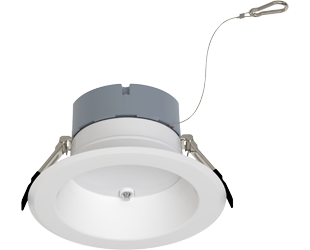

Stainless steel spring action clips allow for both easy direct installation from 1/2" to 2" ceiling thicknesses and field accessibility below the ceiling for service or replacement.
Installation Types
Designed for remodel or direct mounting in the ceiling, or can be retrofited into existing commercial downlight housings.
Construction
Size
6"
Shape
Round
Finish
White
Enclosure Material
Made from spun aluminum which maximizes passive cooling to ensure long lifespan
Trim Style
Spun aluminum trim with smooth splay reflector
Lens Finish
Polycarbonate light diffuser distributes light evenly and smoothly for general lighting applications
Lens
Polycarbonate light diffuser distributes light evenly and smoothly for general lighting applications
Compliance
Listings
None
ETL Listed
This product has been tested by Intertek and found in compliance with accepted national standards.
Environment
Suitable for use indoors and outdoors in dry, damp, or wet environments.
IC Rated
Suitable for direct contact with insulation.
Type IC inherently protected, suitable for direct contact to air permeable insulation and cULus listed for damp locations. Not for use in direct contact with spray foam insulation, consult NEMA LSD57-2013.
Type IC inherently protected, suitable for direct contact to air permeable insulation and cULus listed for damp locations. Not for use in direct contact with spray foam insulation, consult NEMA LSD57-2013.
Air Tight
Housing certified Air Tight as per ASTM E283
Energy Star Approved
This product is ENERGY STAR® Version 2.2 Certified
Certification Model Number
DLC1019(CR6/E)
California Title 20 Compliant
No
California Title 24 JA8 Compliant
Can be used to conform with the requirements of California Title 24 Part 6.
California Energy Commission (CEC) Status
Lawful for Sales in California
NEC Compliant
Suitable for use in closets. Compliant with NEC Sec. 410.16 (A)(1) and 410.16 (C3).
IESNA LM-79 & LM-80 Testing
RAB LED luminaires and LED components have been tested by an independent laboratory in accordance with IESNA LM-79 and LM-80.
RoHS
Mercury and UV free. RoHS-compliant components.
FCC
Complies with Part 15 of the FCC Rules
Trade Agreements Act Compliant
This product is a product of Cambodia and a "designated country" end product that complies with the Trade Agreements Act
Other
5-Year, No-Compromise Warranty
RAB warrants that our LED products will be free from defects in materials and workmanship for a period of five (5) years from the date of delivery to the end user, including coverage of light output, color stability, driver performance and fixture finish. RAB's warranty is subject to all terms and conditions found at rablighting.com/warranty.
