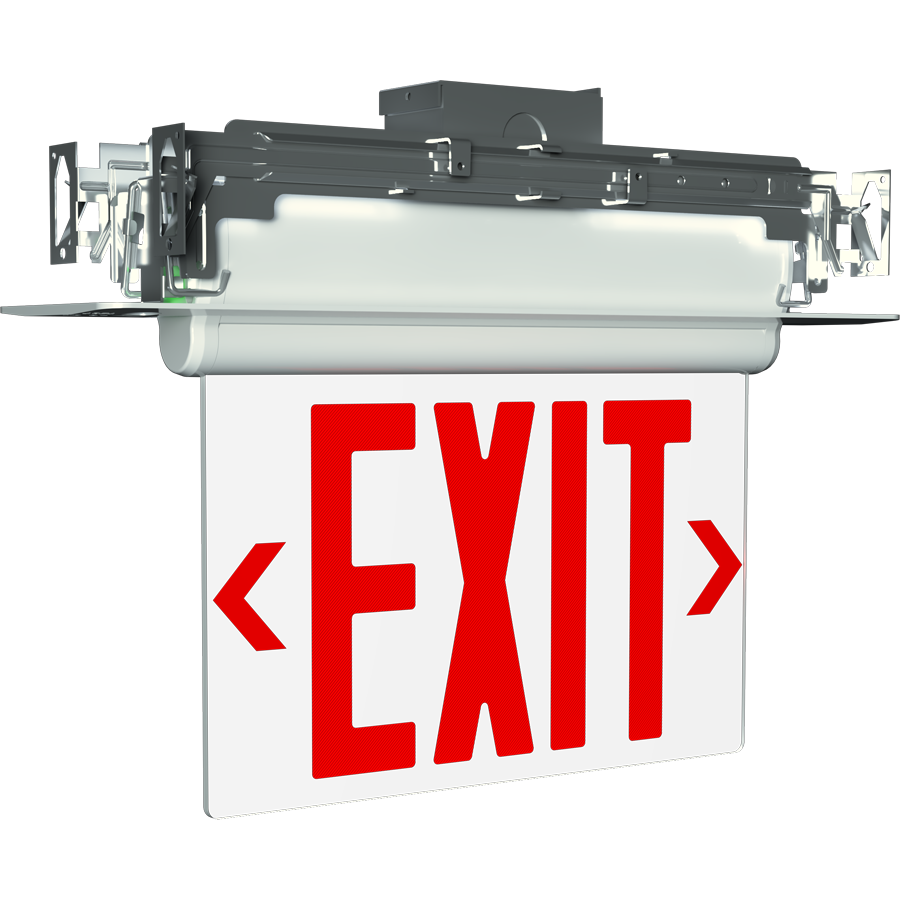

ELX

Great for applications requiring an attractive, edge-lit exit sign while remaining budget- friendly

Provides ceiling, wall, recessed, and end mounting capability all in one box

Thermoplastic housing is impact-resistant, scratch-resistant, and corrosion-proof

Nickel Metal Hydride battery delivers 90 minutes of emergency capacity. Test switch provides manual activation of 30-second diagnostic testing for on-demand visual inspection.

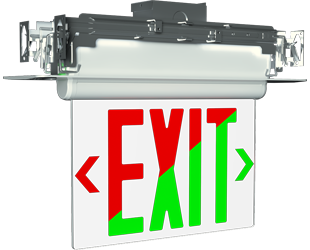

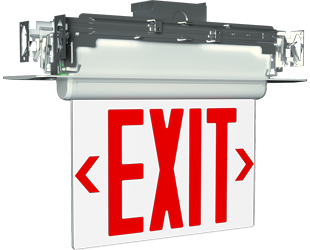

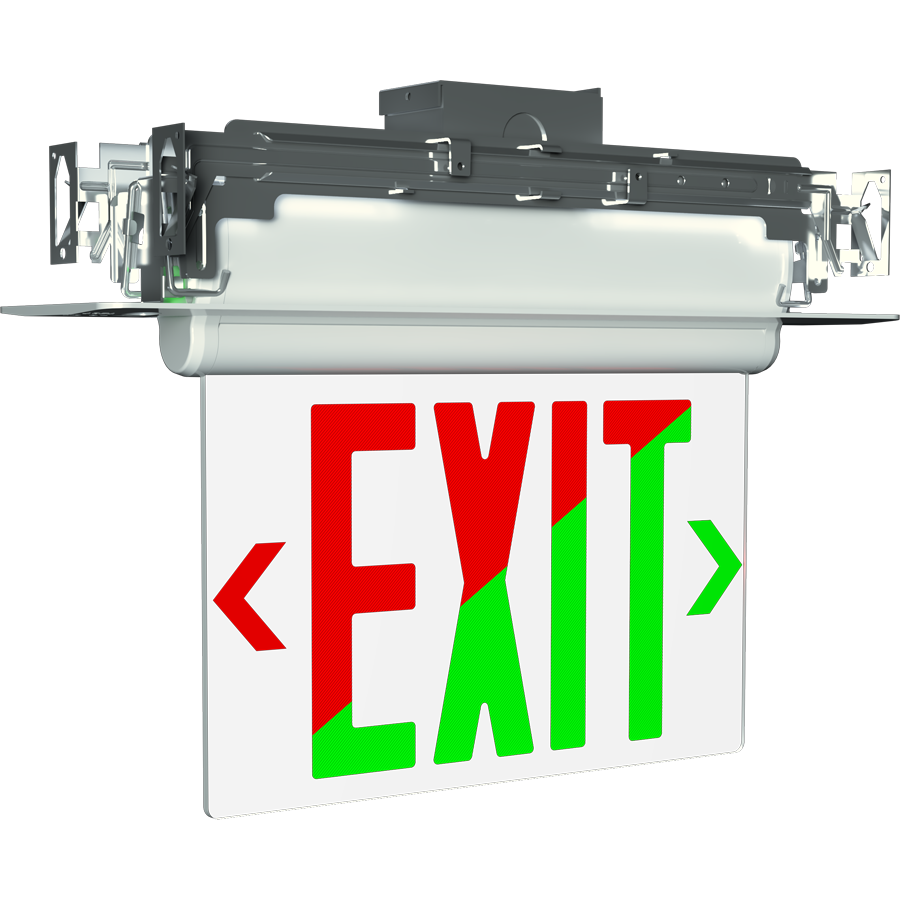

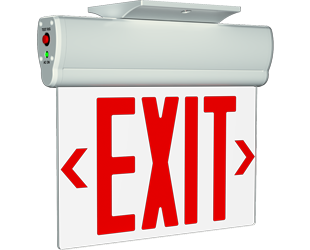

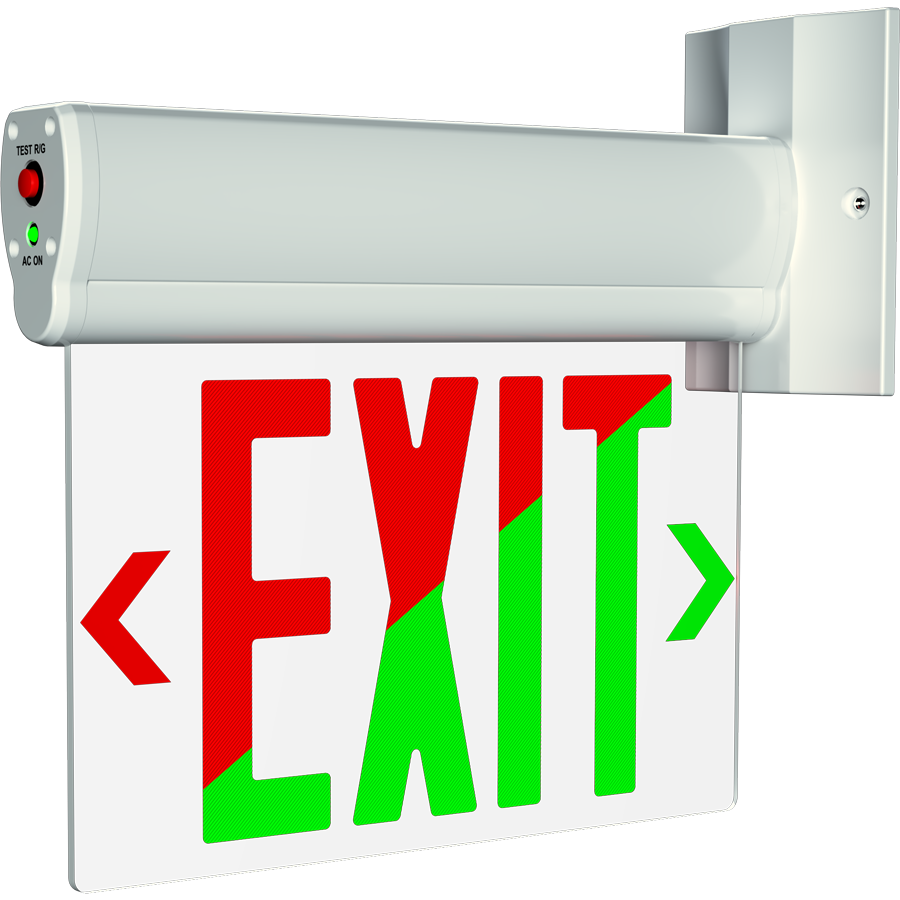

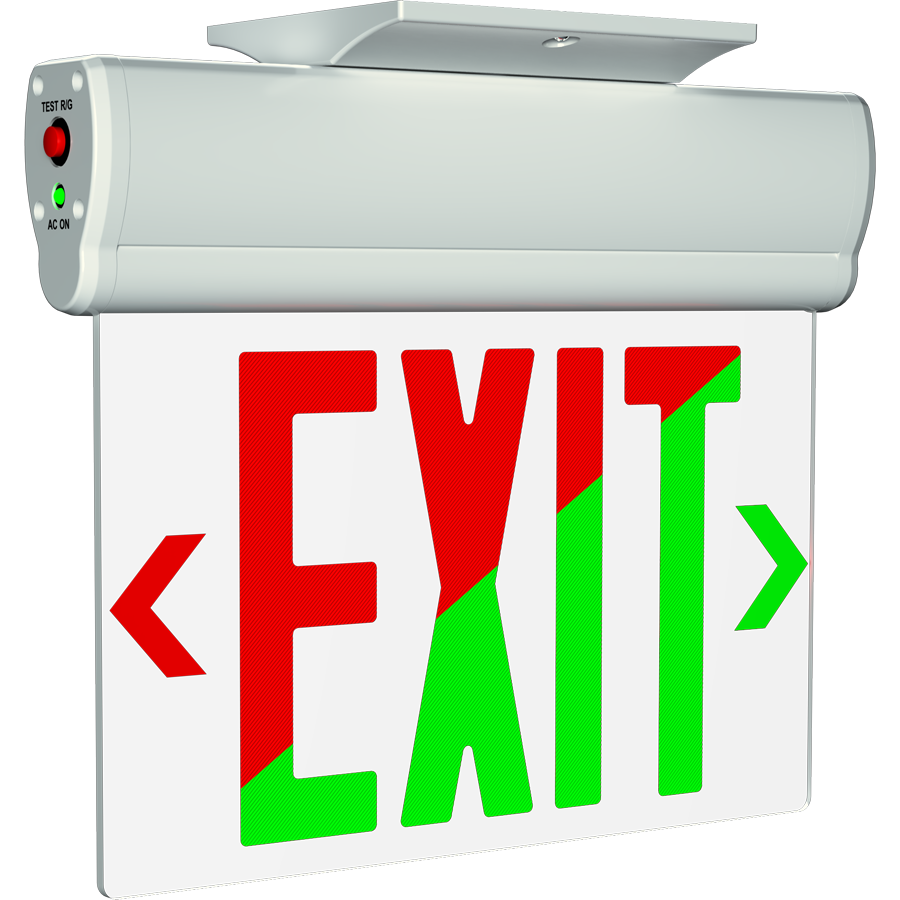

Red/Green selectable letters. Single-face clear panel or double-face mirror panel models available. Includes removeable chevron arrows.

View Technical Specs

View Price & Availability

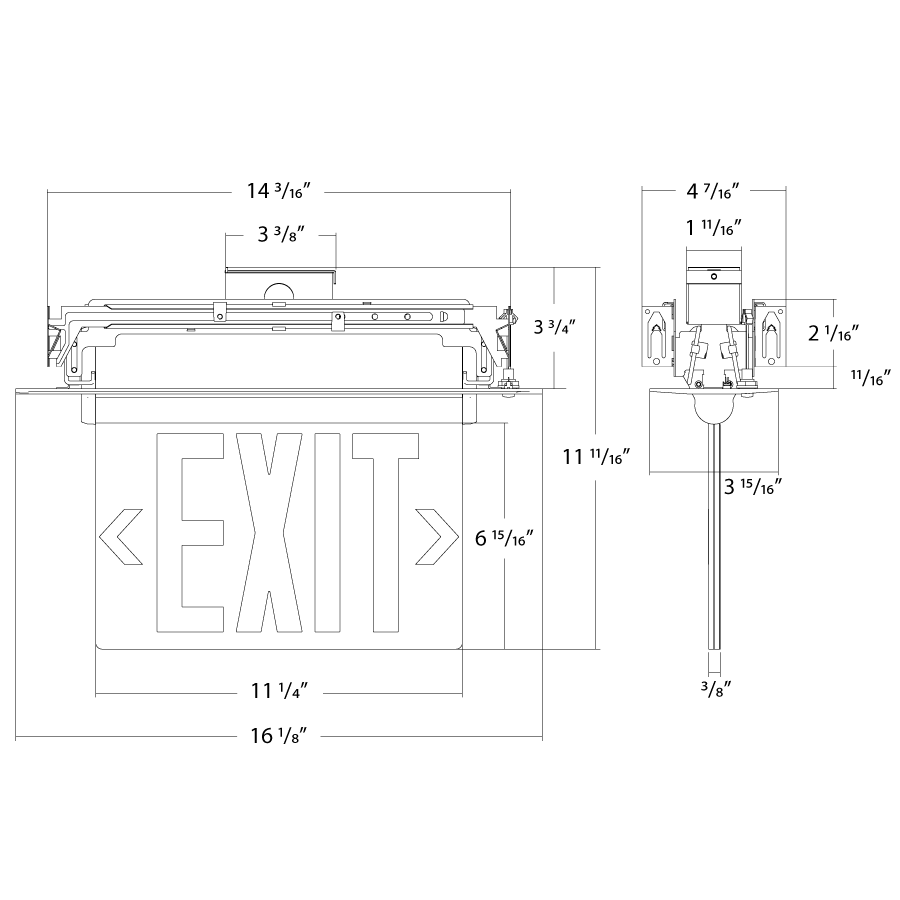

Dimensions

Weight: 4.7 lbs

Technical Specifications

Performance

Product Type

Edge-lit Exit Sign

Description

These edge-lit exit signs provide a high-end aesthetic while still being economical. The exit sign panel tilts 0-180° degrees, fitting many moutnting orientations, and comes with surface and recessed mounting hardware in the box.

Input Wattage

1.7W

Electrical

Power Factor

0.4

Input Voltage

120-277V, No dual circuit operation/No special voltage

Operating Frequency

50/60Hz

Input Current @ 120V (mA)

29mA

Input Current @ 277V (mA)

29mA

Maximum Output Current (Amps)

200mA

Maximum Output Wattage

0.5W

Operating Temperature

32°F to 104°F (0°C to 40°C)

Emergency Lumens

RED: 31.4W
GREEN: 31.1W

Emergency Backup

Battery Backup

Yes

Battery Type

Nickel-Metal Hydride

Battery Voltage

3.6V

Battery Operating Temperature

32°F to 104°F (0°C to 40°C)

Battery Recharge Time

24 hours

Emergency Operation

90 minutes

Self Diagnostics

Remote Test Switch

Installation

Mounting Method

Recessed

Mounting Type

Ceiling

Construction

Cold Weather Rated

Housing Material

Thermoplastic

Housing Color

White

Housing Flamability

5VA

Panel Material

Acrylic

Panel Color

Clear

Letter Color

Red or Green Selectable

Number of Faces

Single Face

Arrow Direction

Left, Right (adhesive stickers included)

Sign Format

Stencil

Remote Capacity

No. of Heads

None

Head Shape

None

Remote Heads Replaceable

Compliance

Listings

UL Listed

Environment

Suitable for use indoors in dry and damp environments.

IP Rating

IP20

T20 Compliant

Can be used to conform with the requirements of California Title 20

California Title 24 JA8 Compliant

California Energy Commission (CEC) Status

Lawful for Sales in California

City Compliance

None

FCC

Complies with Part 15 of the FCC Rules

Other

3-Year, No-Compromise Warranty

RAB warrants that our LED products will be free from defects in materials and workmanship for a period of three (3) years from the date of delivery to the end user, including coverage of light output, color stability, driver performance and fixture finish. RAB's warranty is subject to all terms and conditions found at rablighting.com/warranty.
