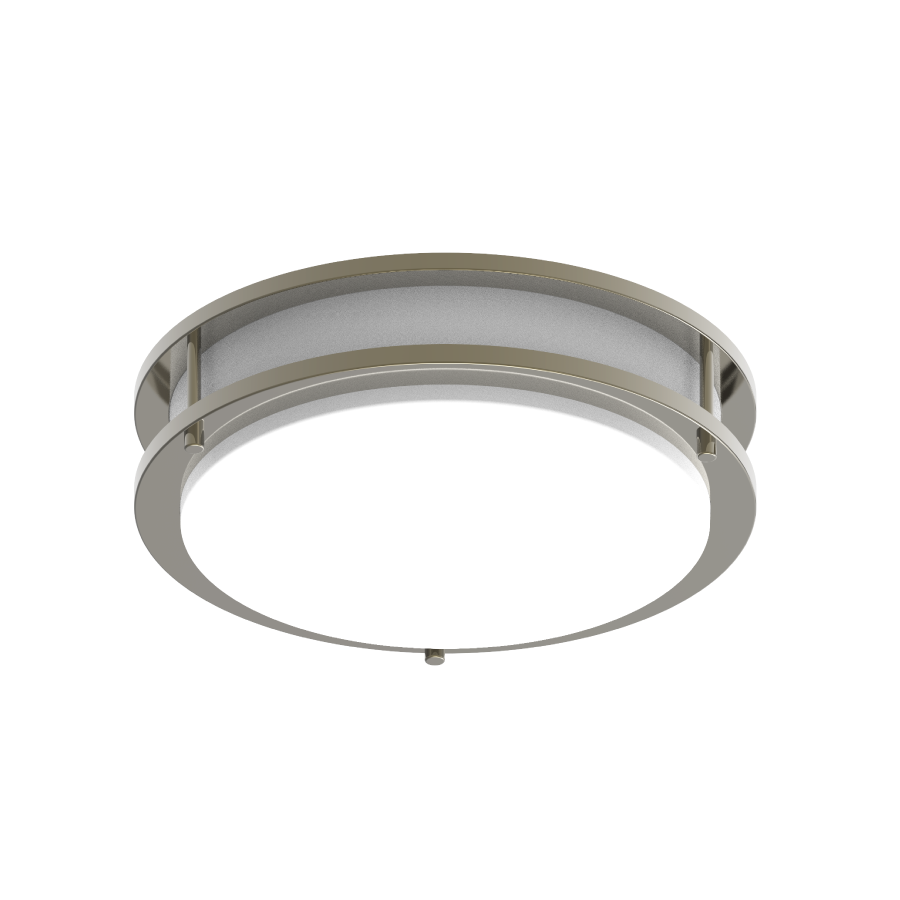

CRVFAD-12R-16-9CCT-UNV-BN/MVS
CRVFAD-12R-16-9CCT-UNV-BN/MVS
- Surface Mount to ceiling or wall
- Field adjustable "set and forget" color temperature
- Diffused lens provides soft, smoth light
- Ideal for hospitality and multi-family residential applications
- Suitable for wet and damp locations
- 50,000-Hour lifespan
Performance
| Watts | 16W |
| Color Temp | 2700K/3000K/3500K/4000K/5000K |
| Lumens | 1,100 lm |
| Efficacy | 68.8 |
| Color Accuracy | 90 CRI |
| L70 Lifespan | 50,000 Hours |
| Type | Constant Current |
| 120V | 0.15A |
| 208V | 0.08A |
| 240V | 0.07A |
| 277V | 0.07A |
| Input Watts | 16W |
Dimensions
Weight: 2.0 lbs
Technical Specifications
Performance
Description
5CCT selectable, low maintenance, decorative back-lit LED retrofit fixture installs on standard junction boxes. This universal voltage (120-277V) fixture also includes an integrated Microwave (MVS) sensor with a 30-second timeout.
Product Type
Surface & Flush Mounts
Input Wattage
16W
Lumens
1,100lm
Efficacy
68.8lm/W
L70 Lifespan
50,000-Hour LED lifespan based on IES LM-70 results
Compliance
UL Listed
Suitable for wet locations
Energy Star Approved
ENERGY STAR® Version 2.2 Certified
Energy Star ID
2389853
Trade Agreements Act Compliant
This product is a product of Cambodia and a "designated country" end product that complies with the Trade Agreements Act
Construction
Material
Metal and Plastic
Trim Style
Smooth Trim
Shape
Round
Mounting
Surface mount
Operating Temperature
-20°C (-4°F) to 40°C (104°F)
Size
12"
Optical
Beam Angle
130°
LED Characteristics
R9 Value
High color performance with R9 greater than or equal to 50
Electrical
THD
≤20%
Power Factor
≥0.9
Flicker
≤30%
Input Voltage
120-277V
Operating Frequency
50/60Hz
Other
Warranty
RAB warrants that our LED products will be free from defects in materials and workmanship for a period of five (5) years from the date of delivery to the end user, including coverage of light output, color stability, driver performance and fixture finish. RAB's warranty is subject to all terms and conditions found at rablighting.com/warranty.
Buy American Act Compliance
RAB values USA manufacturing! Upon request, RAB may be able to manufacture this product to be compliant with the Buy American Act (BAA). Please contact customer service to request a quote for the product to be made BAA compliant.
