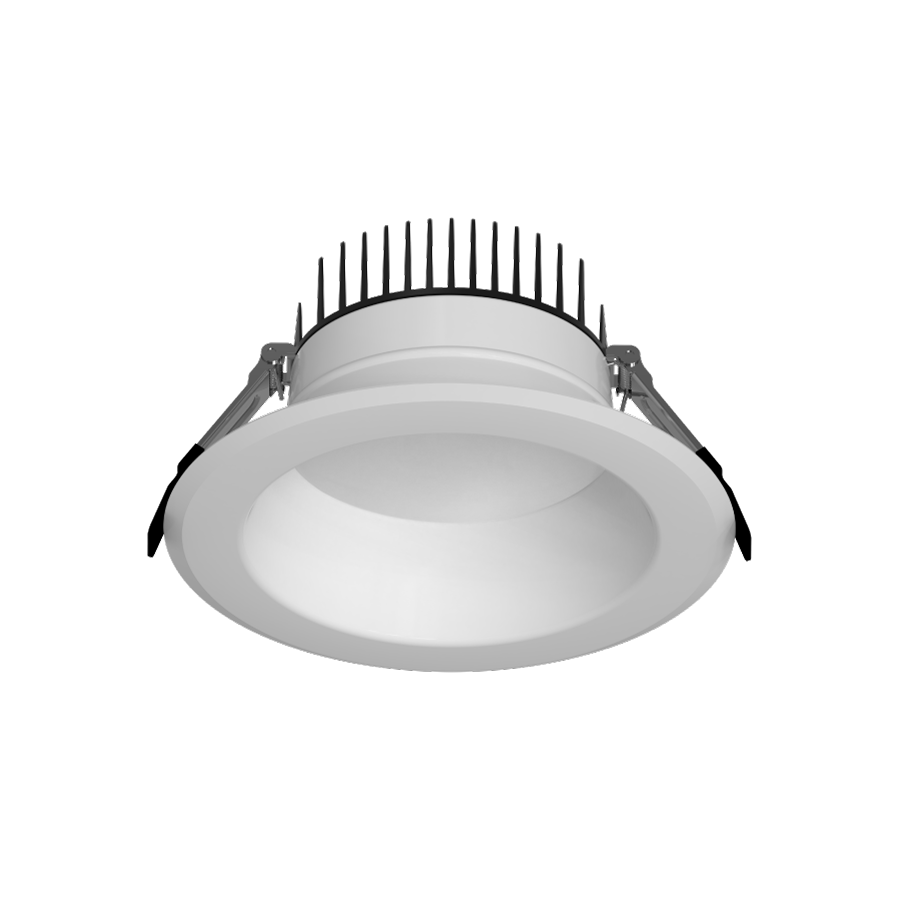

CRX6/D10

CCT Selectable and Lumen Adjustable switches for greater stocking convenience and control

Comes with a remote driver with built-in junction box and quick disconnect; Eliminates the need for a traditional, multi-piece fixture setup

Ideal for new construction, remodel, and retrofit applications

Interchangeable trims available in matte black, brushed nickel, and bronze

View Technical Specs

View Price & Availability

Performance

Watts	32/43/55W
Color Temp	2700/3000/3500/4000/5000K
Lumens	5,000/4,000/3,000 lm
Efficacy	93
Color Accuracy	90 CRI
L70 Lifespan	50,000 Hours

Type	Constant Current, Class A
120V	0.50A
208V	0.27A
240V	0.24A
277V	0.21A
Input Watts	55/43/32W

EZ-Layout

Create Custom Lighting Layout

Dimensions

Weight: 2.4 lbs

Technical Specifications

Performance

Product Type

Commercial Downlight

Description

The CRXLED family is a high output and flexible commercial downlight system that covers a wide range of applications without the need for stocking multiple SKUs.

Wattage Equivalency

125W CFL

Input Wattage

32/43/55W

Lumens

33W
3,171lm @ 2700K; 3,299lm @ 3000K; 3,423lm @ 3500K; 3,468lm @ 4000K; 3,457lm @ 5000K

44W
4,231lm @ 2700K; 4,446lm @ 3000K; 4,648lm @ 3500K; 4,706lm @ 4000K; 4,633lm @ 5000K

55W
5,119lm @ 2700K; 5,401lm @ 3000K; 5,684lm @ 3500K; 5,745lm @ 4000K; 5,578lm @ 5000K

Efficacy

33W
103lm/W @ 2700K; 107lm/W @ 3000K; 105lm/W @ 3500K; 113lm/W @ 4000K; 112lm/W @ 5000K

44W
103lm/W @ 2700K; 108lm/W @ 3000K; 116lm/W @ 3500K; 116lm/W @ 4000K; 111lm/W @ 5000K

55W
98lm/W @ 2700K; 103lm/W @ 3000K; 111lm/W @ 3500K; 111lm/W @ 4000K; 106lm/W @ 5000K

L70 Lifespan

50,000-Hour LED lifespan based on IES LM-70 results

Electrical

Driver

Constant Current, Class A, 50/60 Hz, 120V-277V, 120V: 0.50A, 208V: 0.27A; 240V: 0.24A, 277V: 0.21A

THD

≤20%

Power Factor

≥0.9

Dimmable

Yes, dimmable down to 10% on compatible 0-10V dimming systems. See Dimmer Compatibility List. Requires separate 0-10V DC dimming circuit.

Input Voltage

120-277V

Operating Frequency

50/60Hz

Input Current @ 120V (mA)

500mA

Input Current @ 208V (mA)

270mA

Input Current @ 277V (mA)

210mA

Operating Temperature

-4°F to 104°F (-20°C to 40°C)

Flicker

≤30%

LED Characteristics

Beam Angle

90°

Color Temperature

Field adjustable via dip switch 2700/3000/3500/4000/5000K

Color Accuracy (CRI)

90 CRI

R9 Value

High color performance with R9 greater than 50

Color Consistency

<4-step (2700K & 5000K) MacAdam Ellipse binning to achieve consistent fixture-to-fixture color

Color Stability

LED color temperature is warrantied to shift no more than 200K in color temperature over a 5-year period

Color Uniformity

RAB's range of Correlated Color Temperature follows the guidelines of the American National Standard for Specifications for the Chromaticity of Solid State Lighting (SSL) Products, ANSI C78.377-2017.

Installation

Remote Driver/Junction Box

Die formed metal driver / junction box with captive hinged junction box cover. Listed for Maximum of (4) 12AWG through branch circuit conductor suitable for 90°C permitted in box. Easy to wire in 2in/2out (plus ground) applications. (4) conduit pry-outs. (3) quick snap-in connectors for quick and reliable line voltage connections. Integral mounting facilitates direct mounting to building structure or mounting frame.

Mounting

Recessed

Construction

Size

Shape

Round

Finish

White

Enclosure Material

Metal

Trim Style

Smooth

Lens Finish

Frosted

Lens

Polycarbonate light diffuser distributes light evenly and smoothly for general lighting applications

Air Tight

Housing certified Air Tight as per ASTM E283

Compliance

Trade Agreements Act Compliant

This product is a product of Cambodia and a "designated country" end product that complies with the Trade Agreements Act

Listings

UL Listed, UL Classified

Environment

Suitable for use indoors and outdoors in dry, damp, or wet environments.

IC Rated

Energy Star Approved

DLC Listed

Certification Model Number

DLC1005(CRX6/D10)

California Title 20 Compliant

Can be used to conform with the requirements of California Title 20

California Title 24 JA8 Compliant

Can be used to conform with the requirements of California Title 24 Part 6

California Energy Commission (CEC) Status

Lawful for Sales in California

NSF Listed

NEC Compliant

Suitable for use in closets. Compliant with NEC Sec. 410.16 (A)(1) and 410.16 (C3).

IESNA LM-79 & LM-80 Testing

RAB LED luminaires and LED components have been tested by an independent laboratory in accordance with IESNA LM-79 and LM-80.

RoHS

Mercury and UV free. RoHS-compliant components.

FCC

Complies with Part 15 of the FCC Rules

Other

Compatible Products

DLPLATE/WFR6/NB/CL
6" Mounting plate with nailer bar and drywall collar

DRI-21-EMGR-DC-D10
Emergency driver T20

Warranty

RAB warrants that our LED products will be free from defects in materials and workmanship for a period of five (5) years from the date of delivery to the end user, including coverage of light output, color stability, driver performance and fixture finish. RAB's warranty is subject to all terms and conditions found at rablighting.com/warranty.
