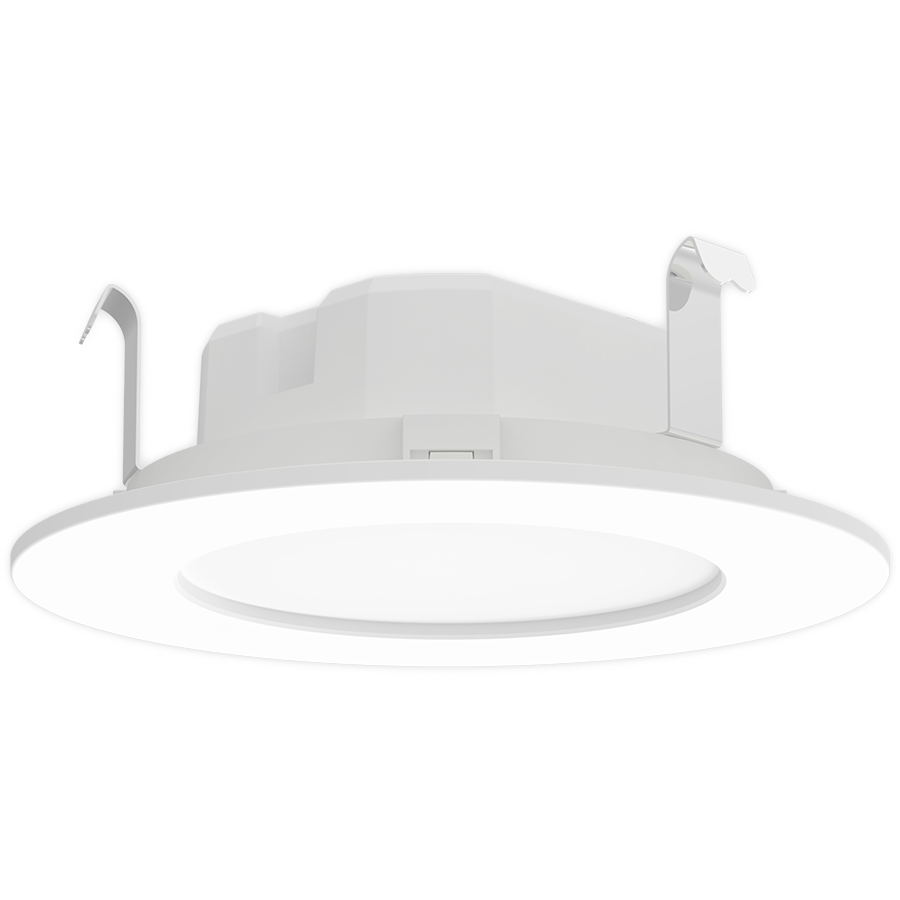

• Edge-lit wafer look that retrofits in existing downlight housings
  • Field adjustable: 3 brightness levels & 5 CCTs
  • Smooth or step baffle lens
  • Mounts inside standard 4" or 6" recessed downlight housings
View Technical Specs
Performance
Watts 10/8/06W
Color Temp 2700/3000/3500/4000/5000K
Lumens 835/685/525 lm
Efficacy 84/86/88 lm/W
Color Accuracy 90 CRI
L70 Lifespan 50,000 Hours
Type Constant Current, Class 2
120V 0.10A
208V
240V
277V
Input Watts 10/8/06W
Dimensions
Link to Dimension Drawing

Weight: 0.4 lbs

Technical Specifications
Performance
Product Type
Wafer Retrofit
Description
Looks like a wafer-style downlight from below the ceiling but installs into existing recessed housings
Wattage Equivalency
60W Incandescent
Input Wattage
10/8/6W
Lumens
6W
2700K @ 564lm;
3000K @ 576lm;
3500K @ 584lm
4000K @ 583lm
5000K @ 566lm
8W
2700K @ 713lm;
3000K @ 733lm;
3500K @ 747lm;
4000K @ 744lm;
5000K @ 714lm
10W
2700K @ 865lm;
3000K @ 897lm;
3500K @ 926lm;
4000K @ 919lm;
5000K @ 862lm
Efficacy
6W
2700K @ 95lm/W;
3000K @ 98lm/W;
3500K @ 100lm/W;
4000K @ 99lm/W;
5000K @ 95lm/W
8W
2700K @ 91lm/W;
3000K @ 94lm/W;
3500K @ 97lm/W;
4000K @ 96lm/W;
5000K @ 91lm/W
10W
2700K @ 87lm/W;
3000K @ 90lm/W;
3500K @ 94lm/W;
4000K @ 93lm/W;
5000K @ 86lm/W
L70 Lifespan
50,000-Hour LED lifespan based on IES LM-70 results
Electrical
Driver
Constant Current, Class 2, 60 Hz
THD
20%
Power Factor
0.9
Dimmable
Yes, dimmable down to 10% on compatible TRIAC/ELV dimming systems. See Dimmer Compatibility List.
Input Voltage
120V
Operating Frequency
60 Hz
Input Current @ 120V (mA)
100mA
Operating Temperature
-13°C to 104°F (-25°C to 40°C)
Flicker
30%
LED Characteristics
Beam Angle
110°±10°
Color Temperature
Field adjustable via dip switch 2700/3000/3500/4000/5000K
Color Accuracy (CRI)
≥90
R9 Value
High color performance with R9 greater than 50
Color Consistency
<4-step MacAdam Ellipse binning to achieve consistent fixture-to-fixture color
Color Stability
LED color temperature is warrantied to shift no more than 200K in color temperature over a 5-year period
Color Uniformity
RAB's range of Correlated Color Temperature follows the guidelines of the American National Standard for Specifications for the Chromaticity of Solid State Lighting (SSL) Products, ANSI C78.377-2017.
Installation
Mounting
Recessed mounting using existing downlight housings
Base Type
E26 Edison Socket Adapter Included in box
Construction
Size
4"
Shape
Round
Finish
White
Enclosure Material
Plastic+Metal
Trim Style
Smooth
Lens Finish
Frosted
Lens
Polycarbonate light diffuser distributes light evenly and smoothly for general lighting applications
Compliance
Listings
UL Listed
Environment
Suitable for use indoors and outdoors in dry, damp, or wet environments.
IC Rated
No
Air Tight
Housing certified Air Tight as per ASTM E283
Energy Star Approved
This product is ENERGY STAR® Version 2.2 Certified.
DLC Listed
No
Certification Model Number
DLW0111(WFRETRO4)
California Title 20 Compliant
No
California Title 24 JA8 Compliant
Can be used to conform with the requirements of California Title 24 Part 6
California Energy Commission (CEC) Status
Lawful for Sales in California
NEC Compliant
Suitable for use in closets. Compliant with NEC Sec. 410.16 (A)(1) and 410.16 (C3).
IESNA LM-79 & LM-80 Testing
RAB LED luminaires and LED components have been tested by an independent laboratory in accordance with IESNA LM-79 and LM-80.
RoHS
Mercury and UV free. RoHS-compliant components.
FCC
Complies with Part 15 of the FCC Rules
Other
Compatible Accessories
NDCANIC4R
4" New construction recessed housing IC rated
RDCANIC4R
4" Remodeler recessed housing IC rated
DRI-21-EMGR-DC-D10
Emergency driver T20
5-Year, No-Compromise Warranty
RAB warrants that our LED products will be free from defects in materials and workmanship for a period of five (5) years from the date of delivery to the end user, including coverage of light output, color stability, driver performance and fixture finish. RAB's warranty is subject to all terms and conditions found at rablighting.com/warranty.
