CRX8/D10
CRX8/D10
- CCT Selectable and Lumen Adjustable switches for greater stocking convenience and control

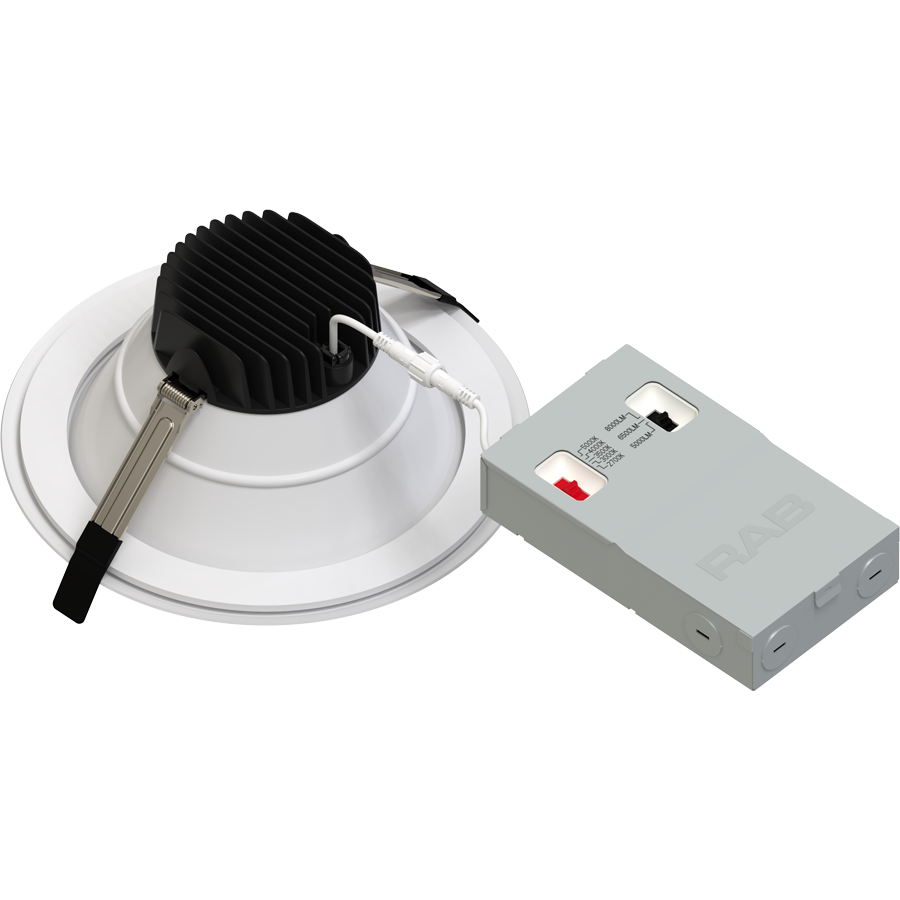

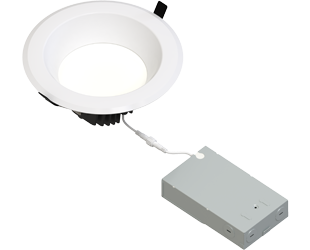

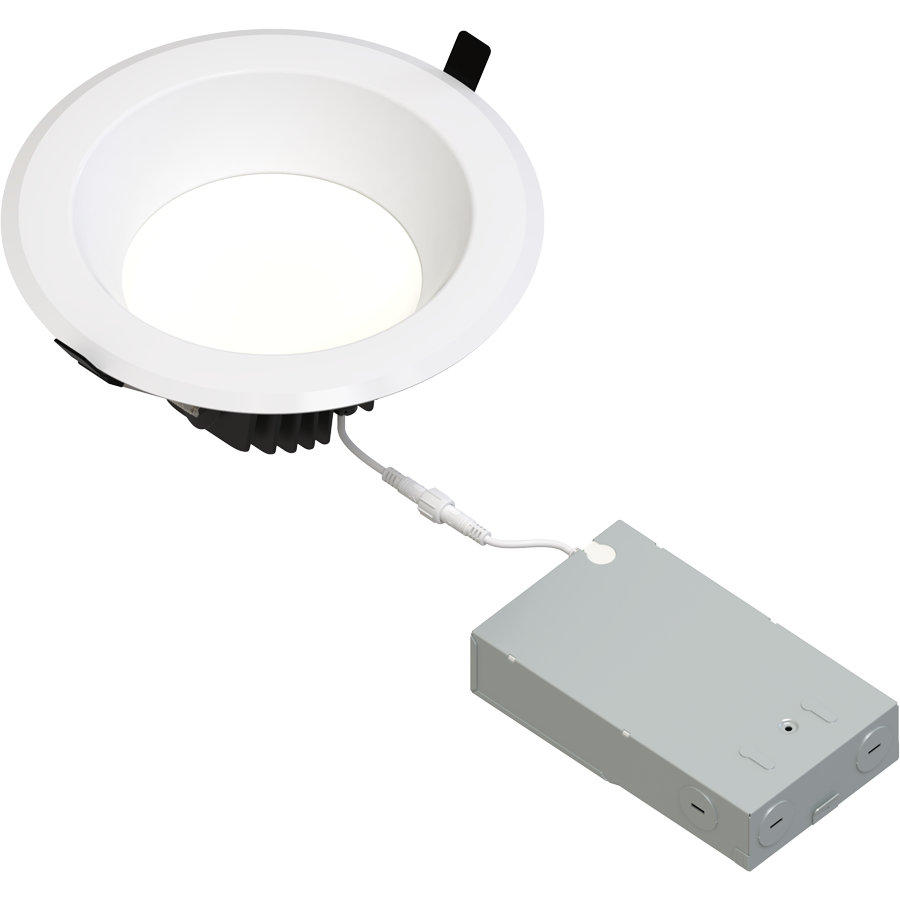

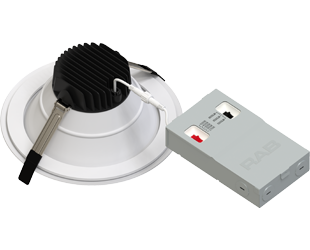

- Comes with a remote driver with built-in junction box and quick disconnect; Eliminates the need for a traditional, multi-piece fixture setup
- Ideal for new construction, remodel, and retrofit applications
- Interchangeable trims available in matte black, brushed nickel, and bronze
Performance
| Watts | 50/65/80W |
| Color Temp | 2700/3000/3500/4000/5000K |
| Lumens | 8,000/6,500/5,000 lm |
| Efficacy | 100 |
| Color Accuracy | 90 CRI |
| L70 Lifespan | 50,000 Hours |
| Type | Constant Current, Class A |
| 120V | 0.75A |
| 208V | 0.40A |
| 240V | 0.35A |
| 277V | 0.30A |
| Input Watts | 80/65/50W |
Dimensions
Weight: 2.2 lbs
Technical Specifications
Performance
Product Type
Commercial Downlight
Description
The CRXLED family is a high output and flexible commercial downlight system that covers a wide range of applications without the need for stocking multiple SKUs.
Wattage Equivalency
200W CFL
Input Wattage
50/65/80W
Lumens
50W
5,033lm @ 2700K; 5,245lm @ 3000K; 5,469lm @ 3500K; 5,537lm @ 4000K; 5,462lm @ 5000K
65W
6,612lm @ 2700K; 6,953lm @ 3000K; 7,299lm @ 3500K; 7,375lm @ 4000K; 7,192lm @ 5000K
80W
8,066lm @ 2700K; 8,547lm @ 3000K; 9,064lm @ 3500K; 9,146lm @ 4000K; 8,807lm @ 5000K
5,033lm @ 2700K; 5,245lm @ 3000K; 5,469lm @ 3500K; 5,537lm @ 4000K; 5,462lm @ 5000K
65W
6,612lm @ 2700K; 6,953lm @ 3000K; 7,299lm @ 3500K; 7,375lm @ 4000K; 7,192lm @ 5000K
80W
8,066lm @ 2700K; 8,547lm @ 3000K; 9,064lm @ 3500K; 9,146lm @ 4000K; 8,807lm @ 5000K
Efficacy
50W
102lm/W @ 2700K; 107lm/W @ 3000K; 114lm/W @ 3500K; 113lm/W @ 4000K; 111lm/W @ 5000K
65W
103lm/W @ 2700K; 108lm/W @ 3000K; 117lm/W @ 3500K; 116lm/W @ 4000K; 112lm/W @ 5000K
80W
98lm/W @ 2700K; 103lm/W @ 3000K; 111lm/W @ 3500K; 111lm/W @ 4000K; 106lm/W @ 5000K
102lm/W @ 2700K; 107lm/W @ 3000K; 114lm/W @ 3500K; 113lm/W @ 4000K; 111lm/W @ 5000K
65W
103lm/W @ 2700K; 108lm/W @ 3000K; 117lm/W @ 3500K; 116lm/W @ 4000K; 112lm/W @ 5000K
80W
98lm/W @ 2700K; 103lm/W @ 3000K; 111lm/W @ 3500K; 111lm/W @ 4000K; 106lm/W @ 5000K
L70 Lifespan
50,000-Hour LED lifespan based on IES LM-70 results
Electrical
Driver
Constant Current, Class A, 50/60 Hz, 120V-277V, 120V: 0.75A, 208V: 0.40A; 240V: 0.35A, 277V: 0.30A
THD
≤20%
Power Factor
≥0.9
Input Voltage
120-277V
Operating Frequency
50/60Hz
Input Current @ 120V (mA)
750mA
Input Current @ 208V (mA)
400mA
Input Current @ 240V (mA)
350mA
Input Current @ 277V (mA)
300mA
Operating Temperature
-4°F to 104°F (-20°C to 40°C)
Flicker
≤30%
LED Characteristics
Beam Angle
85°±10°
Color Temperature
Field adjustable via dip switch 2700/3000/3500/4000/5000K
Color Accuracy (CRI)
90 CRI
R9 Value
High color performance with R9 greater than 50
Color Consistency
<4-step (2700K & 5000K) MacAdam Ellipse binning to achieve consistent fixture-to-fixture color
Color Stability
LED color temperature is warrantied to shift no more than 200K in color temperature over a 5-year period
Color Uniformity
RAB's range of Correlated Color Temperature follows the guidelines of the American National Standard for Specifications for the Chromaticity of Solid State Lighting (SSL) Products, ANSI C78.377-2017.
Installation
Remote Driver/Junction Box
Die formed metal driver / junction box with captive hinged junction box cover. Listed for Maximum of (4) 12AWG through branch circuit conductor suitable for 90°C permitted in box. Easy to wire in 2in/2out (plus ground) applications. (4) conduit pry-outs. (3) quick snap-in connectors for quick and reliable line voltage connections. Integral mounting facilitates direct mounting to building structure or mounting frame.
Mounting
Recessed
Construction
Size
8"
Shape
Round
Finish
White
Enclosure Material
Metal
Trim Style
Smooth
Lens Finish
Frosted
Lens
Polycarbonate light diffuser distributes light evenly and smoothly for general lighting applications
Air Tight
Housing certified Air Tight as per ASTM E283
Compliance
Trade Agreements Act Compliant
This product is a product of Cambodia and a "designated country" end product that complies with the Trade Agreements Act
Listings
UL Listed, UL Classified
Environment
Suitable for use indoors and outdoors in dry, damp, or wet environments.
IC Rated
No
Energy Star Approved
This product is ENERGY STAR® Version 1.0 Certified.
DLC Listed
No
Certification Model Number
DLC1013(CRX8/D10)
California Title 20 Compliant
No
California Title 24 JA8 Compliant
Can be used to conform with the requirements of California Title 24 Part 6
California Energy Commission (CEC) Status
Lawful for Sales in California
NSF Listed
No
NEC Compliant
Suitable for use in closets. Compliant with NEC Sec. 410.16 (A)(1) and 410.16 (C3).
IESNA LM-79 & LM-80 Testing
RAB LED luminaires and LED components have been tested by an independent laboratory in accordance with IESNA LM-79 and LM-80.
RoHS
Mercury and UV free. RoHS-compliant components.
FCC
Complies with Part 15 of the FCC Rules
Other
Compatible Products
DLPLATE/WFR6/NB/CL
6" Mounting plate with nailer bar and drywall collar
DRI-21-EMGR-DC-D10
Emergency driver T20
6" Mounting plate with nailer bar and drywall collar
DRI-21-EMGR-DC-D10
Emergency driver T20
Warranty
RAB warrants that our LED products will be free from defects in materials and workmanship for a period of five (5) years from the date of delivery to the end user, including coverage of light output, color stability, driver performance and fixture finish. RAB's warranty is subject to all terms and conditions found at rablighting.com/warranty.
