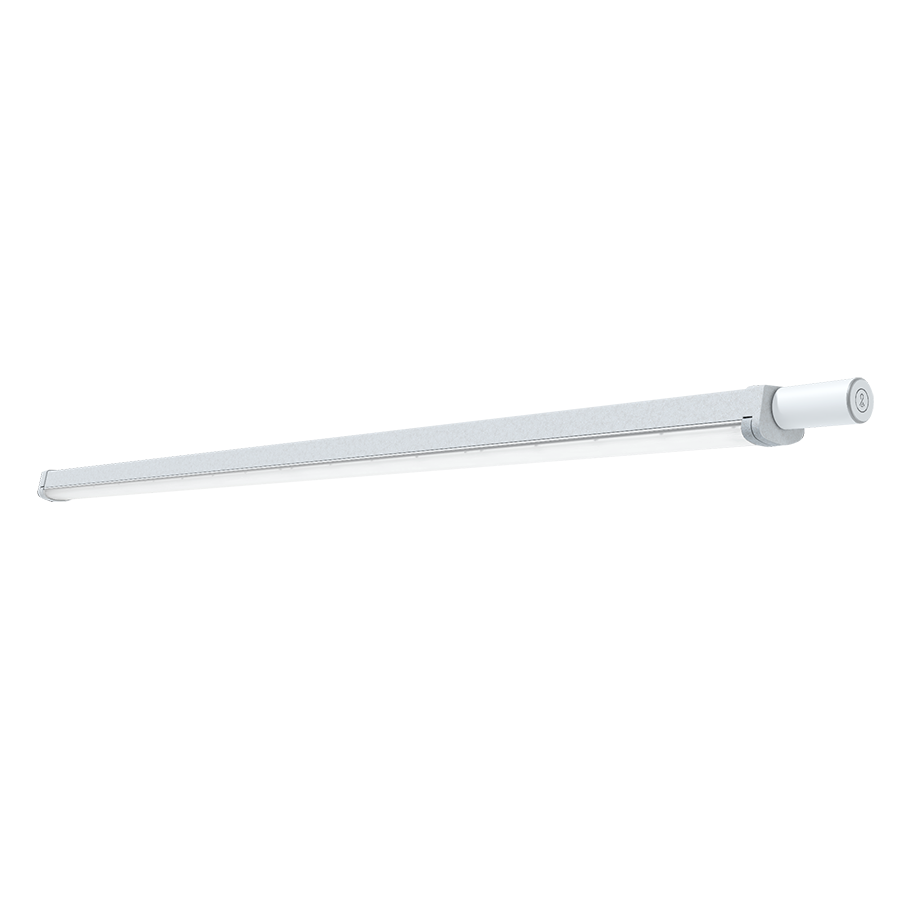

36W 3500/4000/5000K
  • 0-10V Dimming, standard
  • 100,000-hour LED lifespan
  • 5-Year, limited warranty
View Technical Specs
Performance
Watts 36/27/18W
Color Temp 3500/4000/5000K
Lumens 2,748-5,487 lm
Efficacy 145.6-157.2 lm/W
Color Accuracy 84-86 CRI
L70 Lifespan 100,000 Hours
Type Constant Current
120V 0.31A/0.22A/0.15A
208V 0.18A/0.13A/0.09A
240V 0.15A/0.12A/0.08A
277V 0.13A/0.10A/0.07A
Input Watts 17.7-36.5W
Dimensions
Link to Dimension Drawing

Weight: 3.8 lbs

Technical Specifications
Field Adjustability
Field Adjustable
Field Adjustable Light Output:
4 ft: 36W/27W/18W (factory default 36W)
Color temperature selectable by 3500K, 4000K and 5000K (factory default 4000K)
Lightcloud
Lightcloud Blue Sensor Installed
Lightcloud Blue is a Bluetooth Mesh wireless lighting control system that allows you to control RAB's various compatible devices. With RAB's patented Rapid Provisioning technology, devices can be quickly and easily commissioned for residential and large commercial applications using the Lightcloud Blue mobile app. Each device in a system can communicate with any other device, eliminating the need for a Gateway or Hub and maximizing the control system's reach.

DLC system - N1XMLOEATBA (Interior); NHCZ2BIA17L (Exterior)

Learn more at www.lightcloud.com.
Gateway Required
No
Communication Protocol
Bluetooth Mesh
Range
Indoor: Up to 60 feet between standard building materials. Building materials such as brick, concrete, and steel construction may require additional Lightcloud Blue devices to extend around an obstruction; Up to 200 feet clear line of sight.

Outdoor: Up to 60 feet clear line of sight; Up to 18 feet around corners
Spacing Criteria
Lightcloud Blue devices should be placed within the specified range to communicate within the Bluetooth Mesh network.
Factory Reset
Method 1: Delete from App
Open the app and access the device settings for the paired device. Be sure that the device is online and select 'Delete from Site'. The device will flash on/off 5 times and return to full brightness.

Method 2: Manual
Power the device off and on 5x consecutively. Do not allow less than 4s to elapse from switching off to on. Do not allow more than 2s to elapse from switching on to off. The device will flash 3x, then reset to 100% brightness at default CCT.

Method 3: Rapid Reset Tool
The Rapid Reset process must be done by a professional electrician qualified by RAB. Reach out to your RAB sales manager to request a Rapid Reset Tool. The tool simply needs to be placed directly on the small Lightcloud Blue logo on the device for 2s or until the lamp/luminaire flashes 3x, then resets to 100% brightness at the default CCT.
Compliance
UL Listed
Suitable for damp locations
IESNA LM-79 & LM-80 Testing
RAB LED luminaires and LED components have been tested by an independent laboratory in accordance with IESNA LM-79 and LM-80.
DLC Listed
This product is on the Design Lights Consortium (DLC) Qualified Products List and is eligible for rebates from DLC Member Utilities. Designed to meet DLC 5.1 requirements.
DLC Product Code: S-J4GC14 (Low-Bay Luminaires for Commercial and Industrial Buildings)
DLC Product Code: S-LM3YLG (Direct Linear Ambient Luminaires)
Electrical
Driver
36W: Constant Current, Class 2, 120-277V, 50/60 Hz,120V: 0.31A, 208V: 0.18A, 240V: 0.15A, 277V: 0.13A
27W: Constant Current, Class 2, 120-277V, 50/60 Hz,120V:0.22A, 208V: 0.13A, 240V: 0.12A, 277V: 0.10A
18W: Constant Current, Class 2, 120-277V, 50/60 Hz,120V:0.15A, 208V: 0.09A, 240V: 0.08A, 277V: 0.07A
Dimming Driver
Driver includes dimming control wiring for 0-10V dimming systems. Requires separate 0-10V DC dimming circuit. Dims down to 10%.
THD
5.93% at 120V, 11.83% at 277V
Power Factor
99.6% at 120V, 96.9% at 277V
Surge Protection
DM: 1Kv
CM: 2Kv
Performance
Lifespan
100,000-Hour LED lifespan based on IES LM-80 results and TM-21 calculations
Wattage Equivalency
36W: Replaces up to (2) F32T8
27W: Replaces up to (2) F32T8
18W: Replaces up to (1) F32T8
LED Characteristics
LEDs
Long-life, high-efficiency, surface-mount LEDs
Color Uniformity
RAB's range of Correlated Color Temperature follows the guidelines of the American National Standard for Specifications for the Chromaticity of Solid State Lighting (SSL) Products, ANSI C78.377-2017.
Construction
Cold Weather Starting
The minimum starting temperature is -20°C (-4°F)
Maximum Ambient Temperature
Suitable for use in up to 50°C (122°F)
Housing
Sustainable, biocomposite resin manufactured with coffee chaff, waste seashells, and recycled plastic.
Lens
Acrylic lens
Finish
Naturally occurring, beige, speckled pattern
Green Technology
Mercury free. Made with RoHS-compliant components and biorenewable components.
Installation
Mounting
Surface mount and VHOOKs standard. Fixtures designed for end to end connection. Through wiring kit not included.
Optical
BUG Rating
CS4 100%: B2 U3 G1
CS4 75%: B2 U3 G1
CS4 50%: B1 U2 G1
Other
5 Yr Limited Warranty
The RAB 5-year, limited warranty covers light output, driver performance and paint finish. RAB's warranty is subject to all terms and conditions found at rablighting.com/warranty.
