DLED4R9YN
DISCONTINUED
DLED4R9YN
- Superior thermal management with heat-dissipating fins
- Specification-grade 90 CRI standard
- Edison E26 Medium Base socket adapter included
- 5-Year, No-Compromise Warranty
Performance
| Watts | 9W |
| Color Temp | 3500K (Warm Neutral) |
| Lumens | 732 lm |
| Efficacy | 82.2 lm/W |
| Color Accuracy | 92 CRI |
| L70 Lifespan | 50,000 Hours |
| Type | Constant Current |
| 120V | 0.078A |
| 208V | |
| 240V | |
| 277V | |
| Input Watts | 8.9W |

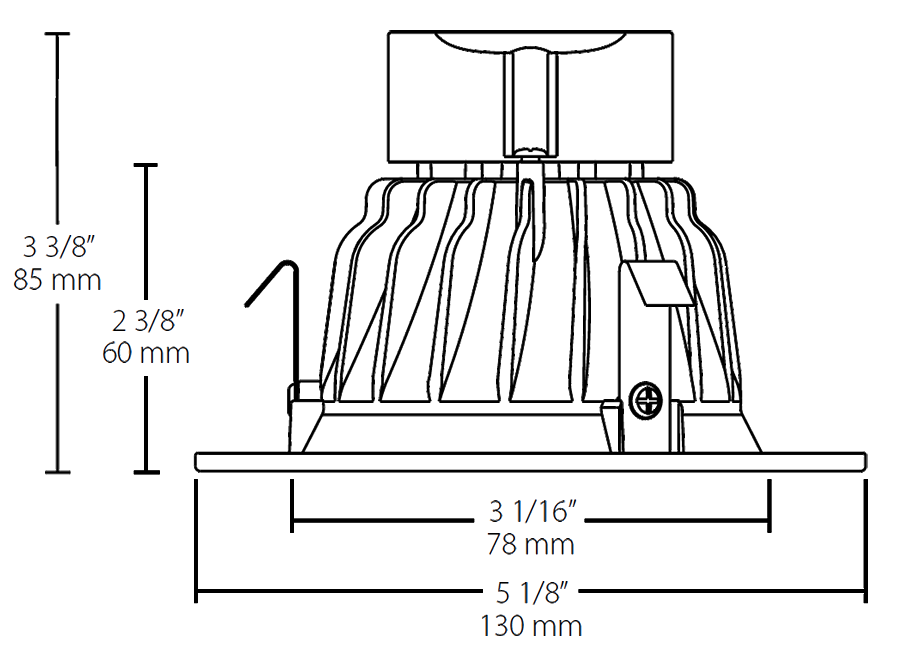

Dimensions
Weight: 0.8 lbs
Technical Specifications
Compliance
UL Classified
Suitable for damp locations
Energy Star Approved
ENERGY STAR® Version 2.0 Certified
IESNA LM-79 & LM-80 Testing
RAB LED luminaires and LED components have been tested by an independent laboratory in accordance with IESNA LM-79 and LM-80.
California Energy Commission (CEC) Status
Not Lawful for Sales in California
Electrical
Driver
Constant Current, Class 2, 50/60 Hz, 120V: 0.078A
THD
26.8% at 120V
Power Factor
95.5% at 120V
Dimming
TRIAC and ELV dimming compatibility. See dimmer compatibility guide here.
