ECOMBO34
- Universal Mounting and Double-face with interchangable red/green color letters
- Injection-molded, engineering grade, 5VA flame retardant, high-impact resistant, thermoplastic in white and black housing finish
- Integrated battery back up, 90 minutes of emergency power
- Remote output power 2W at 3.6VDC. Supports up to two (2) single or one (1) double 3.6VDC remote heads
- Meets UL924, NFPA 101 Life Safety Code, NEC, OSHA,Local and State Codes. Compliant with California Title 20

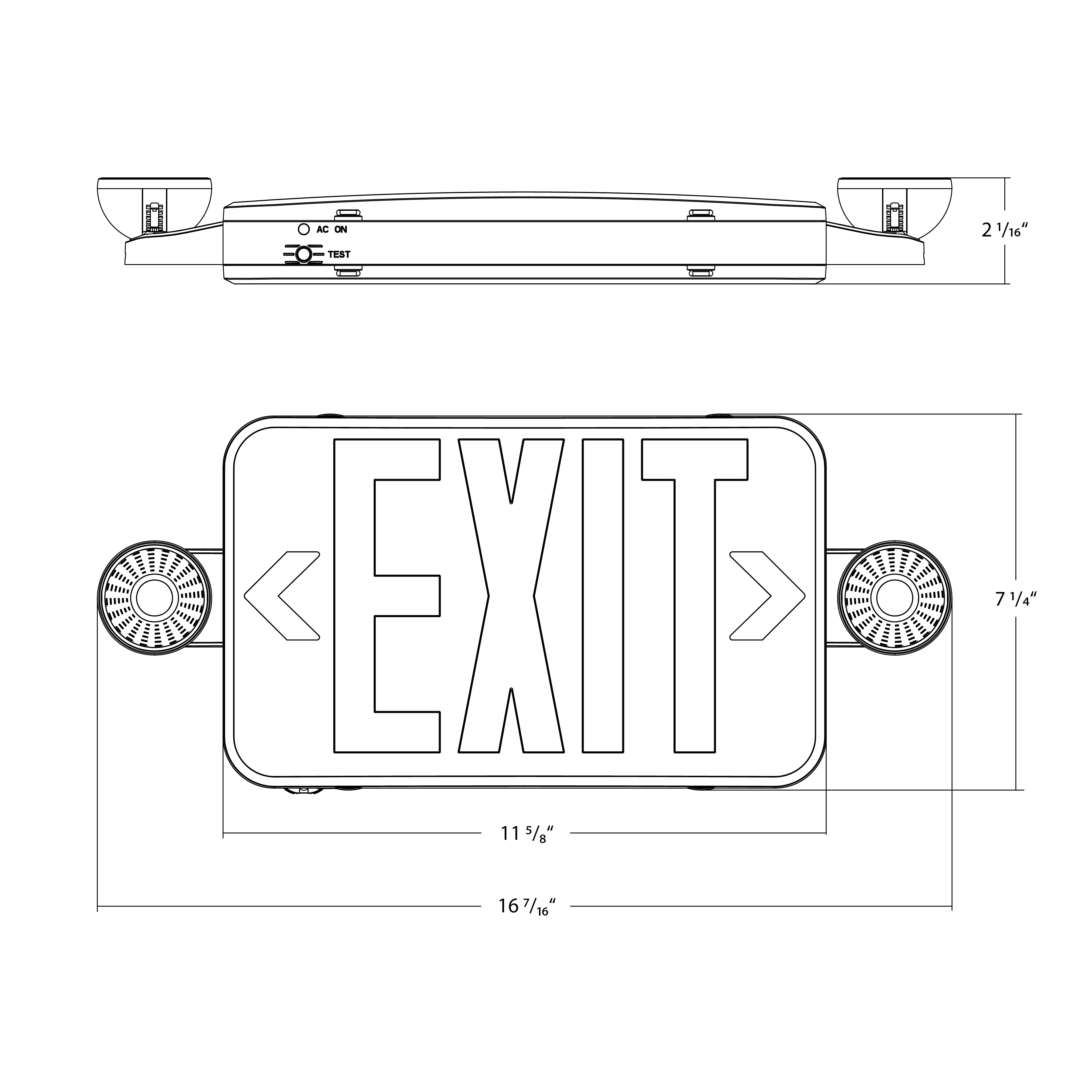

Dimensions
Weight: 3.2 lbs
Technical Specifications
Performance
Product Type
Color Switching, Thermoplastic Exit Combo
Product Series
ECOMBO34
Exit Sign Combo
Description
Exit sign with remote capability and 90-minute emergency battery backup unit.
Input Power (W)
1.8W
Lumens (lm)
160lm
Maximum Output Wattage (W)
2.2W
Construction
Housing Material
Injection-molded thermoplastic ABS housing, UL 94V-0 flame rating
Housing Finish
White Finish
Lettering
Features 6" height letters with 3/4" stroke in both red and green colors.
Face Configuration
Supplied with two faces for single or double face installation
Arrow Configuration
Field-installable, removable chevron directional indicators for all configurations
Illumination Source
2 Lamp Heads
Optical System
SMT LED lamp heads for emergency mode
Head Orientation
Adjustable heads for aiming light where required 330° Rotation, 40° Tilt
Remote Capable
No
LED Characteristics
Color Temperature
6500K
Electrical
Power Factor
0.4
Input Voltage (V)
Universal 120-277 Voltage
Operating Frequency
50/60Hz
Input Current @ 120V (A)
0.035A
Input Current @ 277V (A)
0.015A
Operating Temperature
32°F to 104°F (0°C to 40°C)
Emergency Characteristics
Battery Backup
Yes
Emergency Illumination
90 minutes
Battery
Built-in 3.6V 1000mAh NI-MH battery
Battery Voltage
Battery Voltage
Recharge Time
Maximum 24 hours for full recharge time
Battery Operating Temperature
0°F to 40°F (32°C to 104°C)
Testing Method
Integrated Test Switch & Charge Indicator
Installation
Mounting
Universal J-Box Mounting Pattern
Application
Wall Mount
Emergency Egress Coverage (ft) Mounting at height of 7.5 ft
14'X3'
Compliance
Listings
UL924 Listed, NFPA 101 (current Life Safety Code), NEC and OSHA illumination standards
Environment
Suitable for use in dry and damp environments. Not suitable for applications with direct sunlight.
IP Rating
IP20
T20 Compliant
Can be used to conform with the requirements of California Title 20
California Title 24 JA8 Compliant
No
California Energy Commission (CEC) Status
Lawful for Sales in California
FCC
Complies with Part 15 of the FCC Rules
Other
3-Year, No-Compromise Warranty
RAB warrants that our LED products will be free from defects in materials and workmanship for a period of three (3) years from the date of delivery to the end user, including coverage of light output, color stability, driver performance and fixture finish. RAB's warranty is subject to all terms and conditions found at rablighting.com/warranty.
