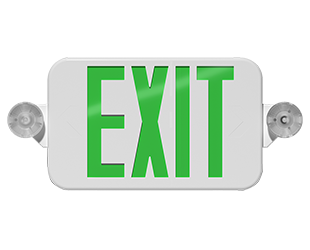

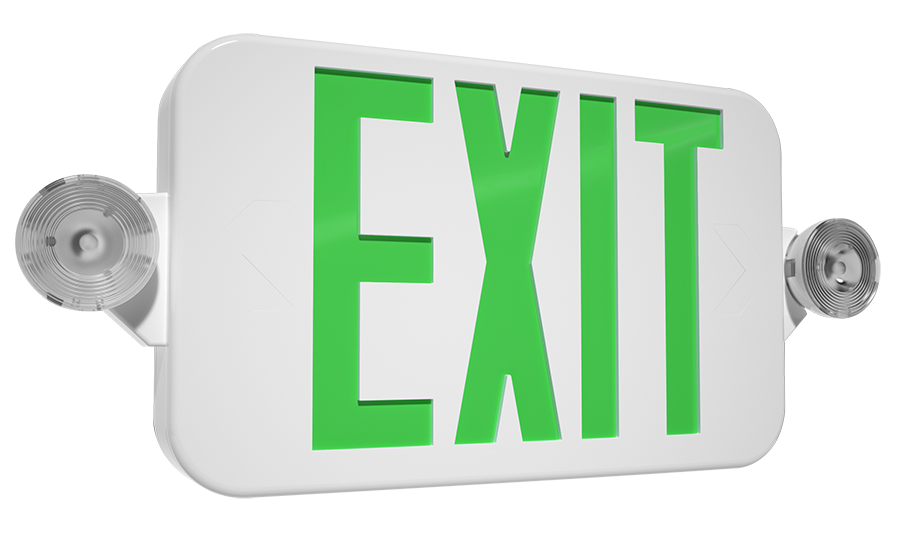

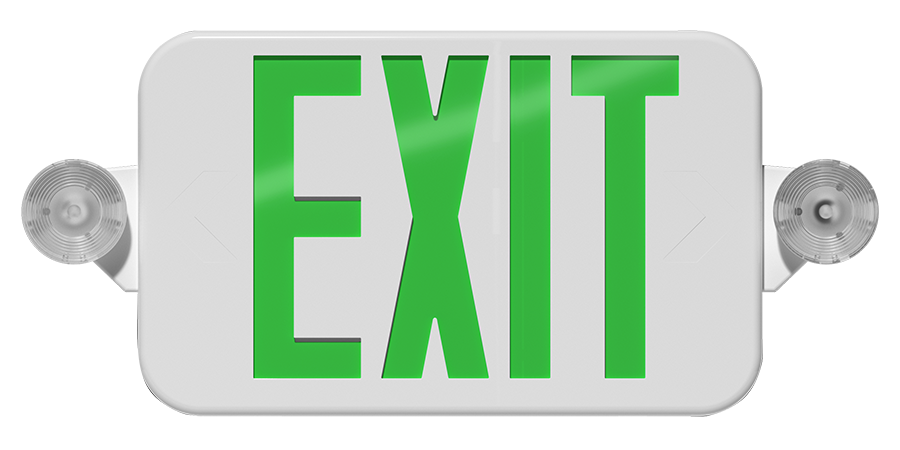

• Universal faces with red/green letters
  • Durable thermoplastic design
  • 90 minutes of battery backup
  • Compliant with California Title 20
View Technical Specs
Dimensions
Link to Dimension Drawing

Weight: 1.5 lbs

Technical Specifications
Performance
Product Type
Exit Combo
Description
Ultra-economy exit sign combo with 90-minute emergency battery backup unit.
Input Power
1.6W @120V; 1.6W @277V
Lumens
110lm
Lumens (per fixture)
220lm
Electrical
Power Factor
0.11@120V; 0.05@277V
Input Voltage
Dual 120/277 Voltage
Operating Frequency
60Hz
Input Current @ 120V (mA)
120mA
Input Current @ 277V (mA)
110mA
Maximum Output Current (Amps)
0.14A
Maximum Output Wattage
0.5W
Dual Voltage Circuit Operation
No
Operating Temperature
32°F to 104°F (0°C to 40°C)
Emergency Illumination
90 minutes
Battery Backup
Yes
Battery Type
Nickel Cadmium
Battery Voltage
3.6V
Recharge Time Required
24-hours
Battery Operating Temperature
32°C to 122°C (0°F to 50°F)
Storage Temperature
68°F to 86°F (20°C to 30°C)
Storage Shelf Life
3 years before the initial charge. 5 years after initial charge.
Self Diagnostics
No, manual test only
Remote Test Switch
No
Installation
Mounting Method
Back/Top
Mounting Type
Wall/Ceiling Mount
Maximum Mounting Height (ft.)
10 ft
Spacing Criteria for Emergency Egress
20 ft on center assuming 7.5 ft mounting height with egress path 3 ft out
Cold Weather Rated
No
Construction
Shape
Rectangle
Housing Material
Thermoplastic
Housing Color
White
Panel Material
Thermoplastic
Panel Color
White
Letter Color
Red/Green
Number of Faces
Universal Single/Double Face
Arrow Direction
Field installable chevrons included
Sign Format
Stencil
Remote Capacity
Yes
No. of Heads
2-Lamp Heads
Head Shape
Round
Remote Head Power (W)
0.5W
Remote Head Lumens (lm)
110lm
Remote head Lumens (per fixture)
220lm
Remote Heads Replaceable
No
Remote Power (W) Capacity
0.5W
Compliance
Listings
UL924 Listed
Environment
Suitable for indoor use in dry and damp environments
IP Rating
Indoor
Certification Model Number
CEU3RGW-HL
T20 Compliant
Can be used to conform with the requirements of California Title 20
California Title 24 JA8 Compliant
Not applicable
California Energy Commission (CEC) Status
Lawful for Sales in California
FCC
Complies with Part 15 of the FCC Rules
Other
5 Yr Limited Warranty
The RAB 5-year, limited warranty covers light output, driver perfomance, paint finish and labor. RAB's warranty is subject to all terms and conditions found at rablighting.com/warranty.
Battery is prorated.
