ECOMBOOUT

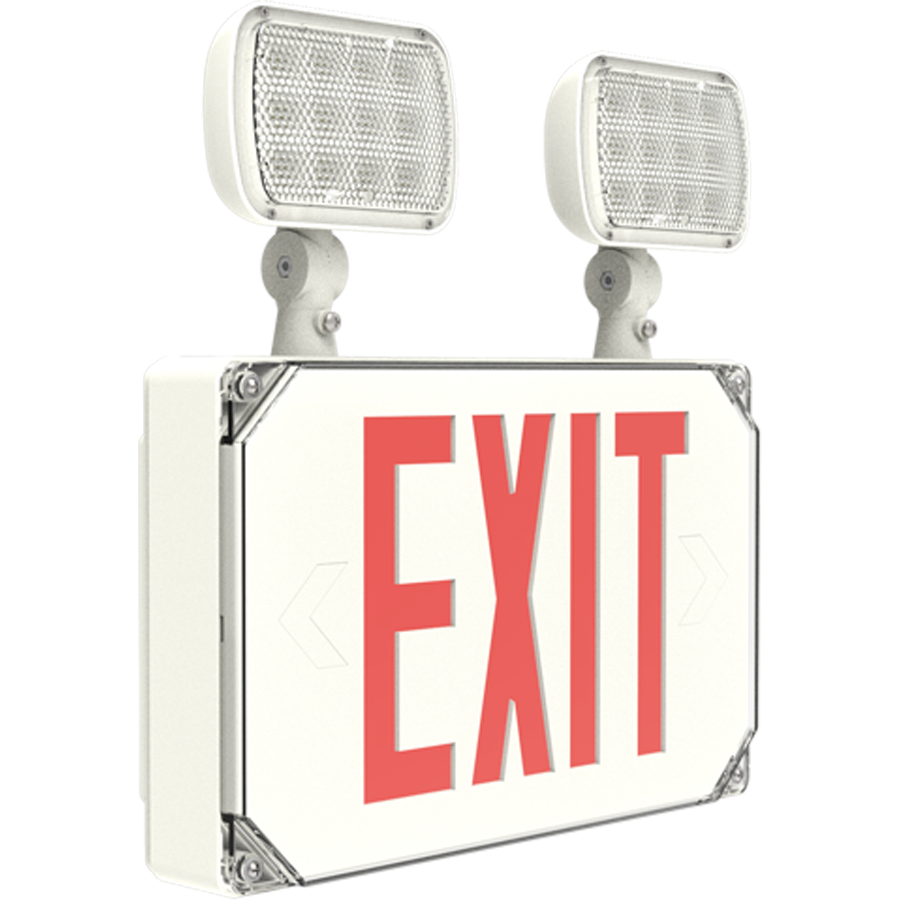

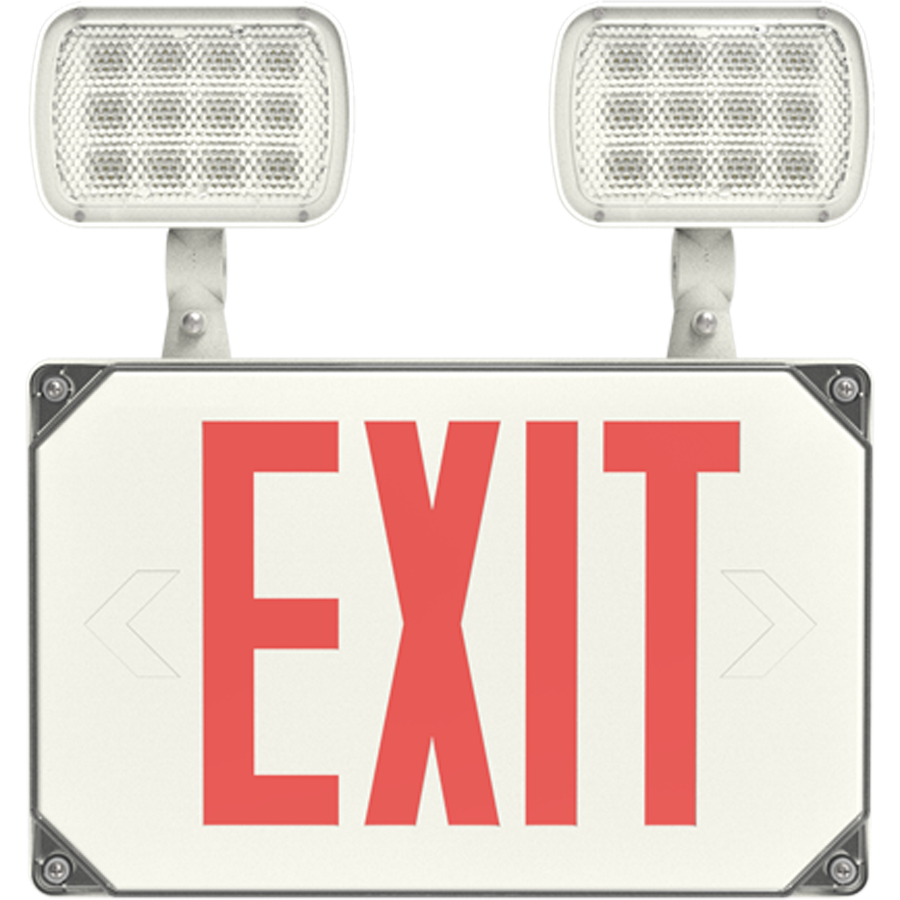

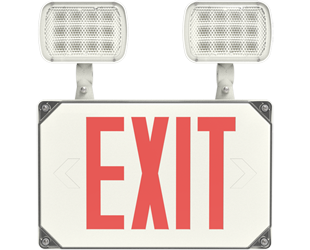

Waterproof LED exit combo light is designed for outdoor and wet environments

Injection-molded thermoplastic ABS housing, UL 94V-0 flame rating

Letters 6" height with 3/4" stroke, RED Letters

Universal J-box mounting pattern suitable for wall mount applications

Meets UL924, NFPA 101 Life Safety Code, NEC, OSHA,Local and State Codes. Compliant with California Title 20

View Technical Specs

View Price & Availability

EZ-Layout

Create Custom Lighting Layout

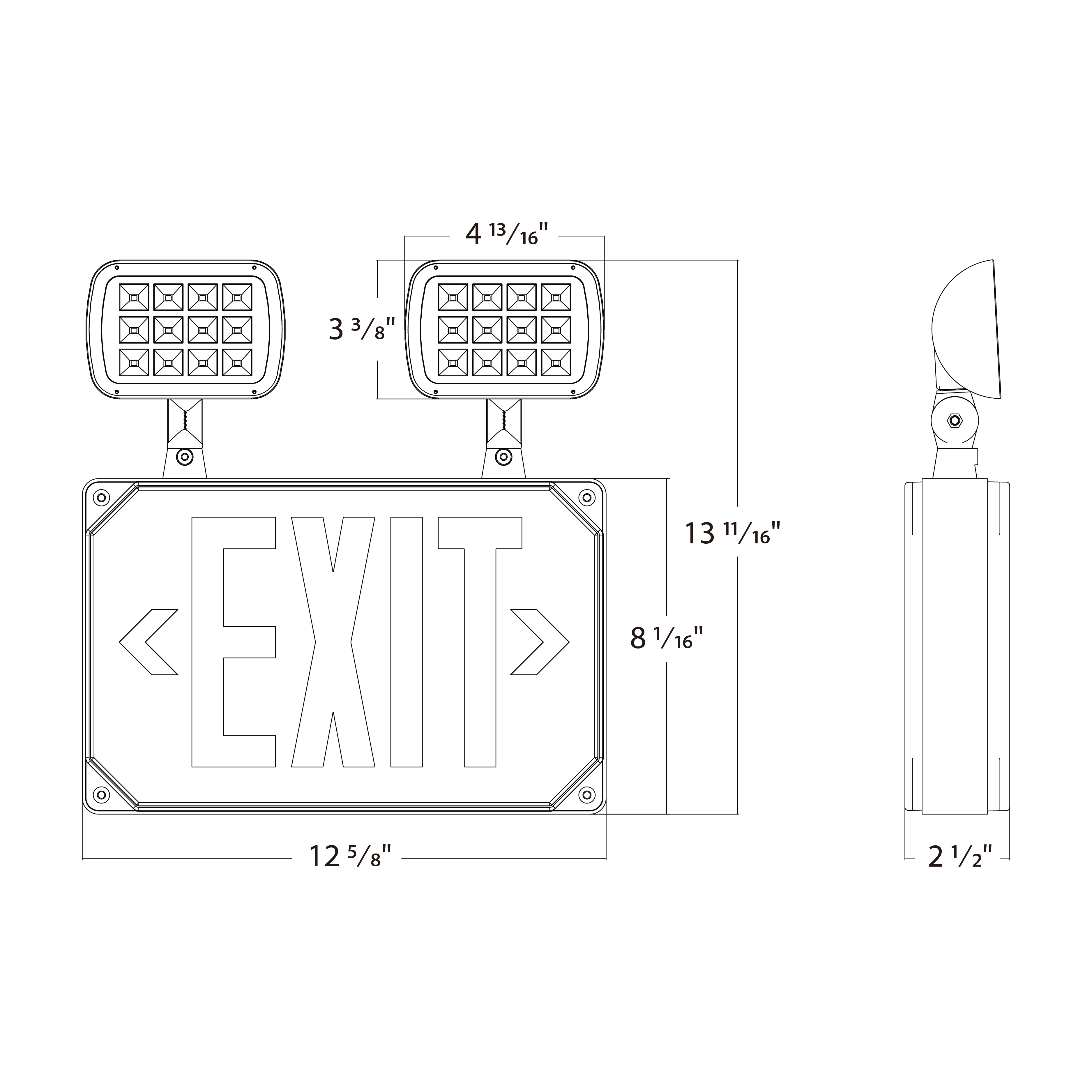

Dimensions

Weight: 3.2 lbs

Technical Specifications

Performance

Product Type

Exit Combo, Wet Location Rated

Product Series

ECOMBOOUT Outdoor Exit Sign Combo

Description

Outdoor rated Exit Sign Comobo available with red letters and battery backup.

Input Power (W)

2.9-3.79W

Lumens (lm)

200lm

Maximum Output Wattage (W)

2.8W

Construction

Housing Material

Thermoplastic Housing 5VA Flame Rating

Housing Finish

White Housing

Lettering

Red

Face Configuration

Supplied with two faces for single or double face installation

Arrow Configuration

Field-installable, removable chevron directional indicators for all configurations

Illumination Source

2 Lamp Heads

Remote Capable

LED Characteristics

Color Temperature

6500K

Electrical

Power Factor

0.8

Input Voltage (V)

120/277 Dual Voltage

Operating Frequency

60 Hz

Input Current @ 120V (A)

0.025A

Input Current @ 277V (A)

0.016A

Operating Temperature

32°F to 104°F (0°C to 40°C)

Emergency Characteristics

Battery Backup

Yes

Emergency Illumination

90 minutes

Battery

Nickel-Metal Hydride

Battery Voltage

Recharge Time

Maximum 24 hours for full recharge time

Battery Operating Temperature

32°F to 122°F (0°C to 50°C)

Testing Method

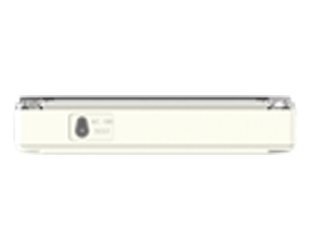

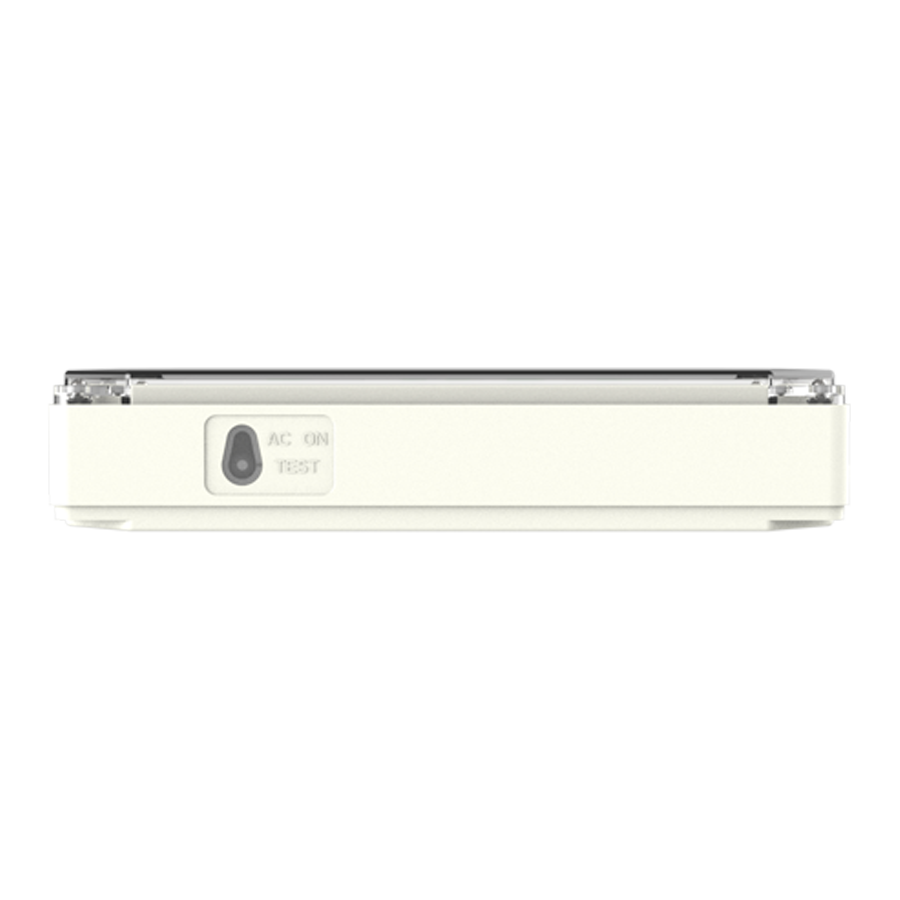

Integrated Test Switch & Charge Indicator

Installation

Mounting

Universal J-Box Mounting Pattern

Application

Can be mounted using Back or Side

Compliance

Listings

UL924 Listed, NFPA 101 (current Life Safety Code), NEC and OSHA illumination standards

Environment

Suitable for use in wet location

IP Rating

IP65

T20 Compliant

Can be used to conform with the requirements of California Title 20

California Title 24 JA8 Compliant

California Energy Commission (CEC) Status

Lawful for Sales in California

FCC

Complies with Part 15 of the FCC Rules

Other

3-Year, No-Compromise Warranty

RAB warrants that our LED products will be free from defects in materials and workmanship for a period of three (3) years from the date of delivery to the end user, including coverage of light output, color stability, driver performance and fixture finish. RAB's warranty is subject to all terms and conditions found at rablighting.com/warranty.
