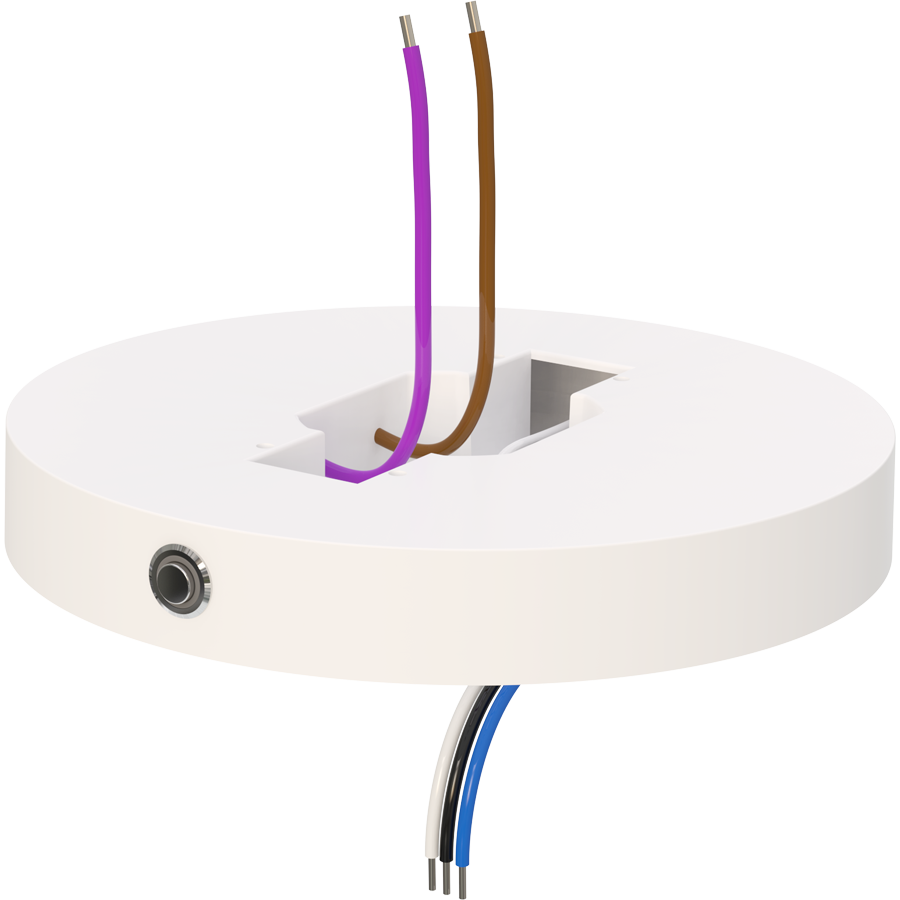

EMB-R-7

Spec Sheet Sell Sheet Family Spec Sheet Spec Sheet

EMB-R-7

90-minute emergency runtime on battery power

Compatible with SUMO Slim round surface mounts

Automatic switchover during power outage

LED indicator shows charge and battery status

Monthly and annual self-test capable

Unswitched AC input, 100-277V

Dry and damp location rated

View Technical Specs

View Price & Availability

Performance

Watts
Color Temp
Lumens
Efficacy
Color Accuracy
L70 Lifespan

Type
120V	0.10A
208V
240V
277V
Input Watts

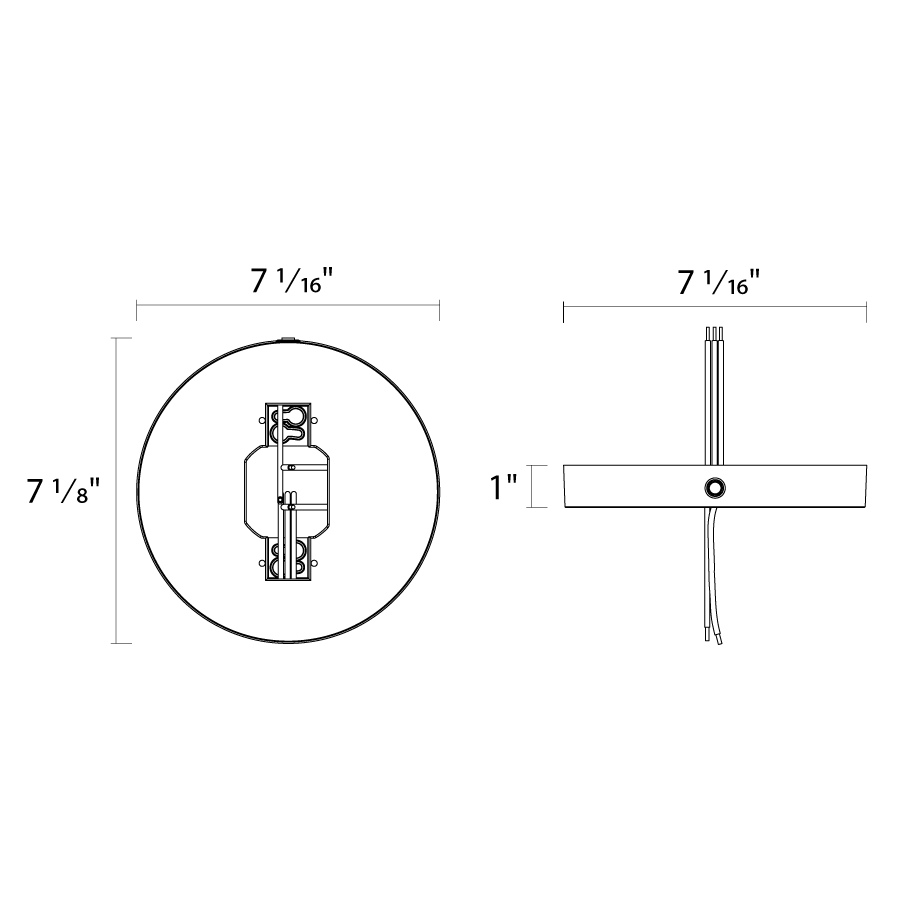

Dimensions

Weight: 0.8 lbs

Technical Specifications

Performance

Product Type

Battery Backup for SUMO

Description

Mounting kits, battery backup and color trims for field adjustable surface mounts.

Electrical

Driver

Continuous Wave @ 120V, 50/60 Hz: 0.10 A

Input Voltage

120V

Operating Frequency

50/60Hz

Input Current @ 120V (mA)

0.10A

Construction

Operating Temperature Range

-4°F - 104°F (-20°C - 40°C)

Size

Shape

Round

Finish

Matte White, fade & Scratch resistant

Enclosure Material

Plastic

Emergency Backup

Emergency Operation

90 minutes

Battery Recharge Time

24 hours

Installation

Mounting

Surface mount

Compliance

Environment

Suitable for use indoors in dry and damp environments.

Certification Model Number

DRI011(EMB-R-7)

California Title 20 Compliant

Can be used to conform with the requirements of California Title 20

California Title 24 JA8 Compliant

California Energy Commission (CEC) Status

Lawful for Sales in California

IESNA LM-79 & LM-80 Testing

RAB LED luminaires and LED components have been tested by an independent laboratory in accordance with IESNA LM-79 and LM-80.

RoHS

Mercury and UV free. RoHS-compliant components.

FCC

Complies with Part 15 of the FCC Rules

Trade Agreements Act Compliant

This product is a product of Cambodia and a "designated country" end product that complies with the Trade Agreements Act

Other

Compatible Products

SUMO-R-7[K]
7" Slim SUMO round surface mount

5-Year, No-Compromise Warranty

RAB warrants that our LED products will be free from defects in materials and workmanship for a period of five (5) years from the date of delivery to the end user, including coverage of light output, color stability, driver performance and fixture finish. RAB's warranty is subject to all terms and conditions found at rablighting.com/warranty.
