ENCT-18BN

Spec Sheet IES File Instructions Sell Sheet Folleto (Español) Family Spec Sheet Spec Sheet EZ Layout

ENCT-18BN

20W 2700/3000/3500/4000/5000K

Steel housing with a shatter-resistant polycarbonate lens

Black/Brushed Nickel finishes for modern style

5CCT Selectable 2700/3000/3500/4000/5000K

120V driver with TRIAC/ELV dimming down to 10%_

Damp rated, Title 24 Compliant, 50,000 hrs, 5-year no compromise warranty

View Technical Specs

View Price & Availability

Performance

Watts	20W
Color Temp	2700/3000/3500/4000/5000K
Lumens	1969-2096 lm
Efficacy	99-105.7 lm/W
Color Accuracy	>90 CRI
L70 Lifespan	50,000 Hours

Type	Constant Current, Class 2
120V	0.18A
208V
240V
277V
Input Watts	19.8-19.9W

EZ-Layout

Create Custom Lighting Layout

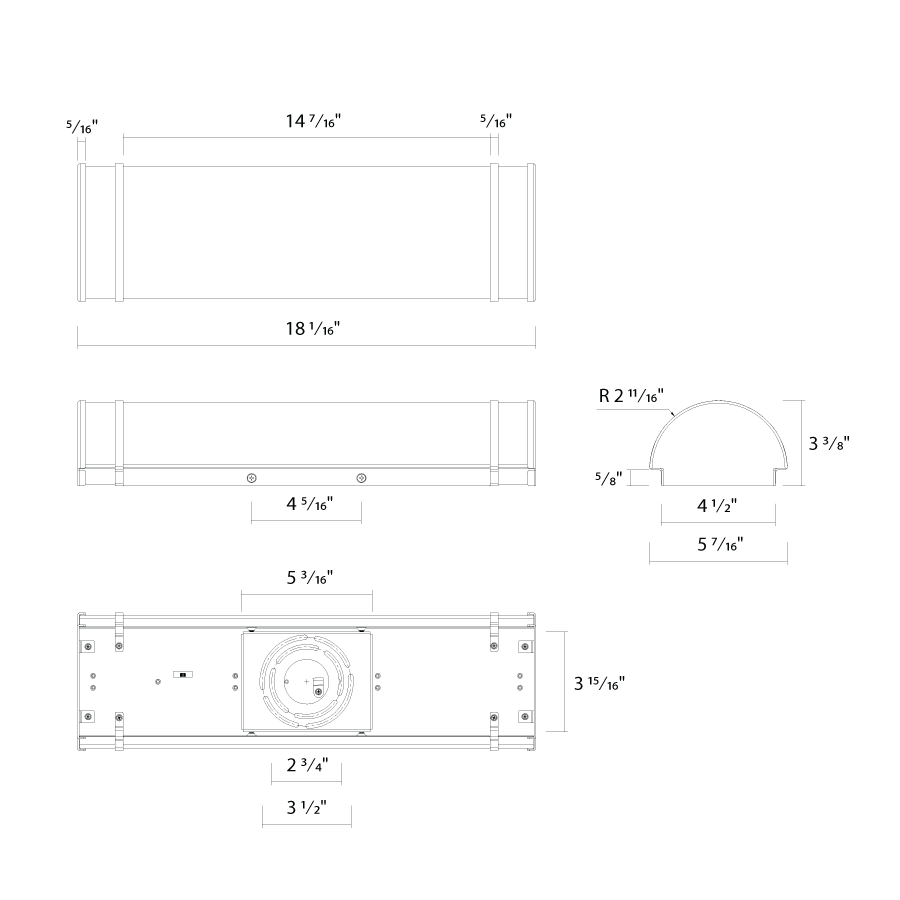

Dimensions

Technical Specifications

Performance

Product Type

Vanity Bath Bar

Description

The Enchant Vanity Family is a sleek & modern fixture perfect for single or multi-family projects

Wattage Equivalency

150W Incandescent

Lumens (Nominal)

1,700lm

Efficacy

85lm/W

L70 Lifespan

50,000-Hour LED lifespan based on IES LM-70 results

Driver

Linear

Electrical

THD

<50%

Dimmable

Yes, dimmable down to 10% on compatible TRIAC/ELV dimming systems. See Dimmer Compatibility List.

Input Voltage

120V

Operating Frequency

60 Hz

Input Current @ 120V (mA)

180mA

Operating Temperature

-4°F to 104°F (-20°C to 40°C)

LED Characteristics

Color Temperature

Field adjustable via dip switch 2700/3000/3500/4000/5000K

Color Accuracy (CRI)

>90 CRI

R9 Value

High color performance with R9 greater than 50

Color Consistency

<7-step MacAdam Ellipse binning to achieve consistent fixture-to-fixture color

Color Stability

LED color temperature is warrantied to shift no more than 200K in color temperature over a 5-year period

Color Uniformity

RAB's range of Correlated Color Temperature follows the guidelines of the American National Standard for Specifications for the Chromaticity of Solid State Lighting (SSL) Products, ANSI C78.377-2017.

Installation

Mounting

Flush mount

Construction

Length

10"

Shape

Linear

Finish

Brushed Nickel

Enclosure Material

Polycarbonate/Metal

Lens Finish

Frosted

Lens

Polycarbonate light diffuser distributes light evenly and smoothly for general lighting applications

Compliance

ETL Listed

This product has been tested by Intertek and found in compliance with accepted national standards.

Environment

Suitable for use indoors in dry and damp environments.

IC Rated

Air Tight

Energy Star Approved

DLC Listed

Certification Model Number

V029(ENCT-18BN)

California Title 20 Compliant

California Title 24 JA8 Compliant

Can be used to conform with the requirements of California Title 24 Part 6

California Energy Commission (CEC) Status

Lawful for Sales in California

NSF Listed

IESNA LM-79 & LM-80 Testing

RAB LED luminaires and LED components have been tested by an independent laboratory in accordance with IESNAlm-79 andlm-80.

RoHS

Mercury and UV free. RoHS-compliant components.

FCC

Complies with Part 15 of the FCC Rules

Other

Compatible Accessories

None

5-Year, No-Compromise Warranty

RAB warrants that our LED products will be free from defects in materials and workmanship for a period of five (5) years from the date of delivery to the end user, including coverage of light output, color stability, driver performance and fixture finish. RAB's warranty is subject to all terms and conditions found at rablighting.com/warranty.
