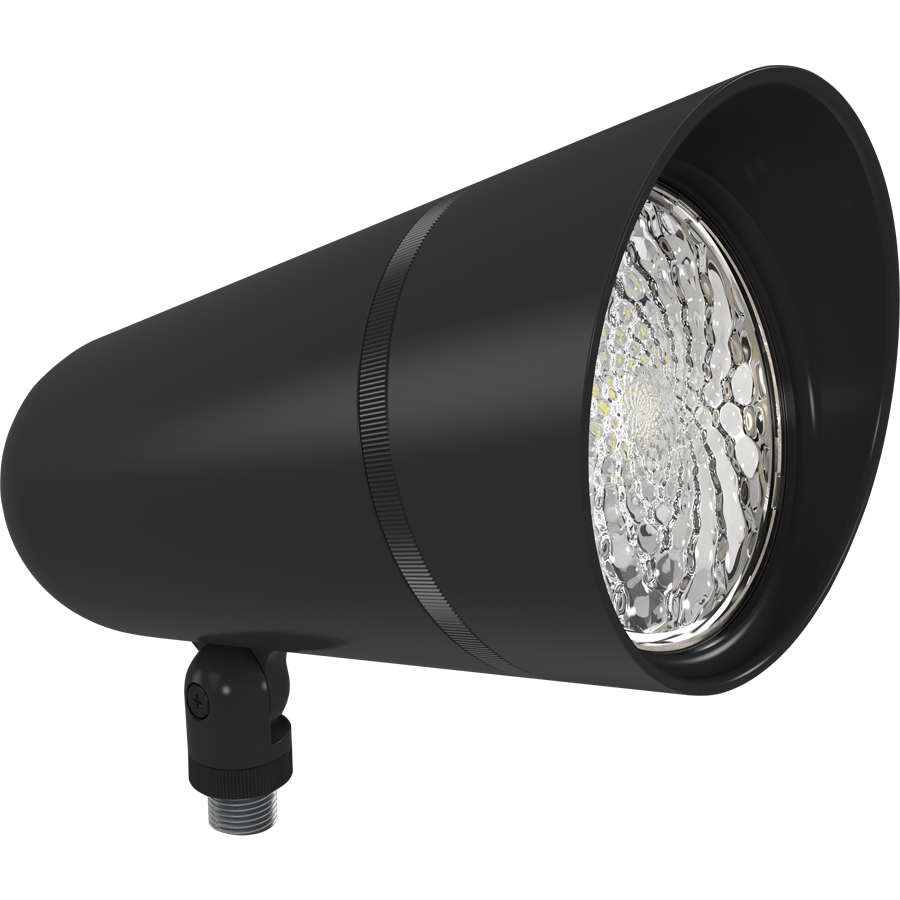

LFXL
LFXL
48W 2700-5000K Tunable White; RGBW 16+ Million Colors
- 100,000-Hour LED lifespan
- IP65 rating protects against dust and water
- 5-Year, limited warranty
Performance
| Watts | 48W |
| Color Temp | 2700-5000K Tunable White; RGBW 16+ Million Colors |
| Lumens | 181-4279 lm |
| Efficacy | 9.1-92.6 lm/W |
| Color Accuracy | 81-85 CRI |
| L70 Lifespan | 100,000 Hours |
| Type | Constant Current |
| 120V | 0.15A/0.16A/0.17A/0.39A/0.40A |
| 208V | 0.10A/0.11A/0.22A/0.23A |
| 240V | 0.09A/0.10A/0.19A/0.20A |
| 277V | 0.08A/0.17A/0.18A |
| Input Watts | 18-47.6W |
Dimensions
Weight: 4.5 lbs
Technical Specifications
Lightcloud
Lightcloud Blue
Lightcloud Blue is a Bluetooth Mesh wireless lighting control system that allows you to control RAB's various compatible devices. With RAB's patented Rapid Provisioning technology, devices can be quickly and easily commissioned for residential and large commercial applications using the Lightcloud Blue mobile app. Each device in a system can communicate with any other device, eliminating the need for a Gateway or Hub and maximizing the control system's reach.
DLC system - Interior: N1XMLOEATBA; Exterior: NHCZ2BIA17L
Learn more at www.lightcloud.com.
DLC system - Interior: N1XMLOEATBA; Exterior: NHCZ2BIA17L
Learn more at www.lightcloud.com.
Gateway Required
No
Communication Protocol
Bluetooth Mesh
Range
Indoor: Up to 60 feet between standard building materials. Building materials such as brick, concrete, and steel construction may require additional Lightcloud Blue devices to extend around an obstruction; Up to 200 feet clear line of sight.
Outdoor: Up to 60 feet clear line of sight; Up to 18 feet around corners
Outdoor: Up to 60 feet clear line of sight; Up to 18 feet around corners
Spacing Criteria
Lightcloud Blue devices should be placed within the specified range to communicate within the Bluetooth Mesh network.
SmartShift
SmartShift
SmartShift is the most advanced - yet easiest to use - circadian lighting system, which syncs white color tuning with the local sunrise and sunset.
Requires the NANO/LCB (sold separately)
Requires the NANO/LCB (sold separately)
Field Adjustability
Field Adjustable
Field Adjustable Light Output:
Color temperature: 2700-5000K Tunable White; RGBW 16+ Million Colors
Optics: Flood/Spot/Narrow Beam Angle Adjustable
Color temperature: 2700-5000K Tunable White; RGBW 16+ Million Colors
Optics: Flood/Spot/Narrow Beam Angle Adjustable
Compliance
UL Listed
Suitable for wet locations
IP Rating
Ingress protection rating of IP65 for dust and water
IESNA LM-79 & LM-80 Testing
RAB LED luminaires and LED components have been tested by an independent laboratory in accordance with IESNA LM-79 and LM-80.
Trade Agreements Act Compliant
This product is a product of Cambodia and a "designated country" end product that complies with the Trade Agreements Act
LED Characteristics
LEDs
Long-life, high-efficacy, discrete, surface-mount LEDs
Color Consistency
7-step MacAdam Ellipse binning to achieve consistent fixture-to-fixture color
Color Uniformity
RAB's range of Correlated Color Temperature follows the guidelines of the American National Standard for (SSL) Products, ANSI C78.377-2017.
Electrical
Driver
Constant Current, Class 2 , 120-277V, 50/60 Hz 120V: 0.40A, 208V: 0.24A, 240V: 0.20A, 277V: 0.18A
Dimming Driver
Driver includes dimming control wiring for 0-10V dimming systems. Requires separate 0-10V DC dimming circuit. Dims down to 10%.
Dim to Off
No
Aux Power Supply
No
Surge Protection
L-N, L-PE, N-PE: 4kV
Performance
Lifespan
100,000-Hour LED lifespan based on IES LM-80 results and TM-21 calculations
\
Construction
Cold Weather Starting
The minimum starting temperature is -40°C (-40°F)
Maximum Ambient Temperature
Suitable for use in up to 40°C (104°F)
Housing
Die-cast aluminum
Tilt Increment
Rotates in 2 degree increments
Lens
Glass
Reflector
Polyethylene Terephthalate (PET)
Gaskets
Silicone and Nitrile rubber
Finish
Formulated for high durability and long-lasting color
Green Technology
Mercury and UV free. RoHS-compliant components.
Installation
Mounting
Knuckle mount
Other
5 Yr Limited Warranty
The RAB 5-year, limited warranty covers light output, driver performance and paint finish. RAB's warranty is subject to all terms and conditions found at rablighting.com/warranty.
