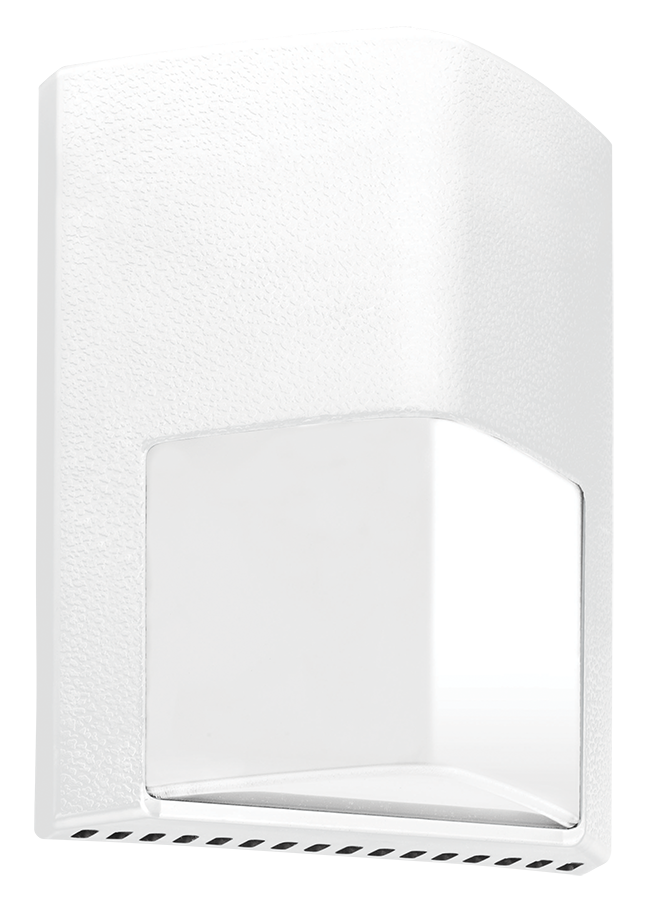

ENTRA12NW/PCS2
ENTRA12NW/PCS2
- Save over $700 in energy costs over life of fixture
- Equivalent to 70W high pressure sodium
- Durable vandal-resistant polycarbonate housing
- Low-profile and ADA compliant
- 100,000-hour LED lifespan
- 5-Year, No-Compromise Warranty
Performance
| Watts | 12W |
| Color Temp | 4000K (Neutral) |
| Lumens | 982 lm |
| Efficacy | 70.6 lm/W |
| Color Accuracy | 88 CRI |
| L70 Lifespan | 100,000 Hours |
| Type | Constant Current |
| 120V | |
| 208V | 0.3A |
| 240V | 0.3A |
| 277V | 0.3A |
| Input Watts | 13.9W |
Dimensions
Weight: 3.1 lbs
Technical Specifications
Compliance
UL Listed
Suitable for wet locations as downlight. Suitable for mounting within 4ft (1.2m) of the ground.
IP Rating
Ingress protection rating of IP66 for dust and water
ADA Compliant
ENTRA™ is ADA Compliant
IESNA LM-79 & LM-80 Testing
RAB LED luminaires and LED components have been tested by an independent laboratory in accordance with IESNA LM-79 and LM-80.
Electrical
Driver
Constant Current, Class 2, 100-277V, 50/60Hz, 4kV Surge Protection, 350mA, 100-240VAC: 0.3 - 0.15 A, 277VAC: 0.15 A, Power Factor: 99%.
THD
10.1% at 120V
Photocell
277V Swivel photocell l is compatible with 208V-277V
LED Characteristics
LED
12W multi-chip, long life LED
Color Stability
LED color temperature is warrantied to shift no more than 200K in color temperature over a 5-year period
Color Consistency
3-step MacAdam Ellipse binning to achieve consistent fixture-to-fixture color
Performance
Lifespan
100,000-Hour LED lifespan based on IES LM-80 results and TM-21 calculations
Wattage Equivalency
50W HPS
Construction
Cold Weather Starting
The minimum starting temperature is -40°C (-40°F)
Maximum Ambient Temperature
Suitable for use in up to 40°C (104°F)
Back Housing
Die-cast aluminum
Lens/Housing Cover
Vandal resistant polycarbonate molded housing cover and lens
Reflectors (2)
White aluminum reflector topped with vacuum-metalized polycarbonate LED reflector
Gaskets
High-temperature silicone
Finish
Formulated for high durability and long-lasting color
Green Technology
Mercury and UV free. RoHS-compliant components.
Installation
Mounting
Heavy die cast aluminum with 1/2" back knockout and mounting template for mounting to 4" box
Recommended Mounting Height
Up to 10 ft
Other
Patents
The design of the ENTRA™ is protected by patents pending in US, Canada, China, Taiwan and Mexico
Warranty
RAB warrants that our LED products will be free from defects in materials and workmanship for a period of five (5) years from the date of delivery to the end user, including coverage of light output, color stability, driver performance and fixture finish. RAB's warranty is subject to all terms and conditions found at rablighting.com/warranty.
