EREMOTEOUT-1B

Spec Sheet IES File Brochure Instructions Family Spec Sheet Spec Sheet EZ Layout

EREMOTEOUT-1B

Injection-molded thermoplastic ABS housing, UL 94V-0 flame rating

3.6V,1W ultra bright white LED lamps

Provides consistent and reliable illumination over time.

Waterproof for outdoor use

View Technical Specs

View Price & Availability

EZ-Layout

Create Custom Lighting Layout

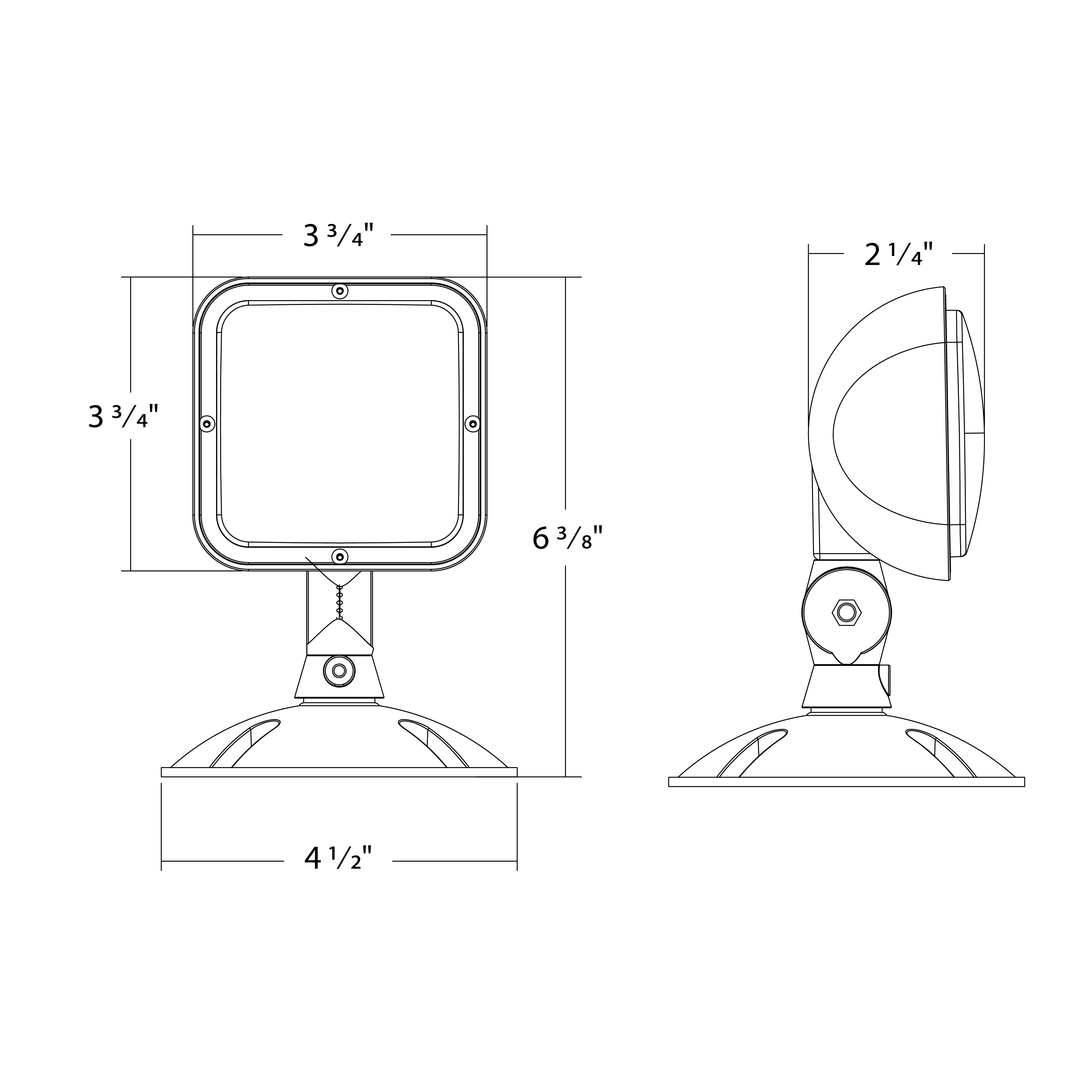

Dimensions

Weight: 3.4 lbs

Technical Specifications

Performance

Product Type

Wet Location Remote Heads

Product Series

Emergency Remote Heads

Description

Wet location rated LED Remote lamps are designed to work with any exit combos and emergency lighting units.

Input Power (W)

1.2W Max

Lumens (lm)

90lm

Construction

Housing Material

Thermoplastic Housing 5VA Flame Rating

Housing Finish

Black

Illumination Source

Remote Single Head

Optical System

Precision engineered Prismatic Lens

Head Orientation

Adjustable heads for aiming light where required

LED Characteristics

Color Temperature

6500K

Electrical

Input Voltage (V)

3.6-15V

Input Current @ 120V (A)

0.30A

Operating Temperature

32°F to 104°F (0°C to 40°C)

Installation

Mounting

Wall mount

Application

Outdoor use

Mounting Height

8.2 ft

Compliance

Listings

UL924 Listed, NFPA 101 (current Life Safety Code), NEC and OSHA illumination standards

Environment

Suitable for use in wet location

IP Rating

IP65

T20 Compliant

Can be used to conform with the requirements of California Title 20

California Title 24 JA8 Compliant

California Energy Commission (CEC) Status

Lawful for Sales in California

FCC

Complies with Part 15 of the FCC Rules

Other

3-Year, No-Compromise Warranty

RAB warrants that our LED products will be free from defects in materials and workmanship for a period of three (3) years from the date of delivery to the end user, including coverage of light output, color stability, driver performance and fixture finish. RAB's warranty is subject to all terms and conditions found at rablighting.com/warranty.
