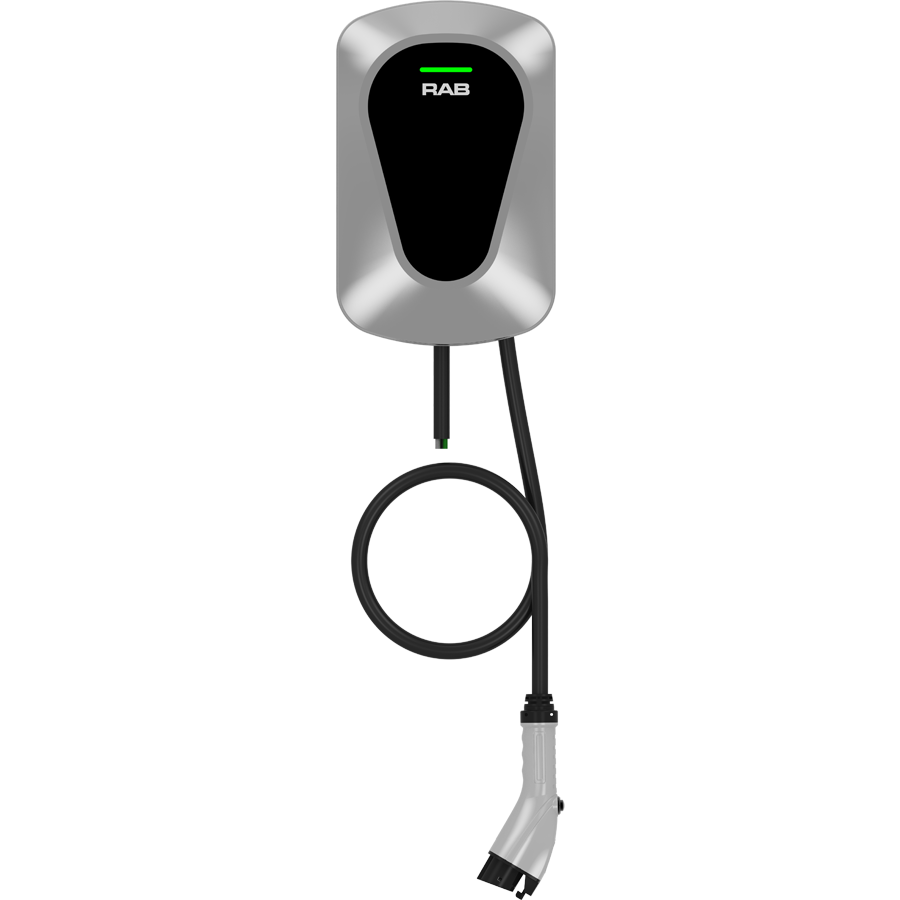

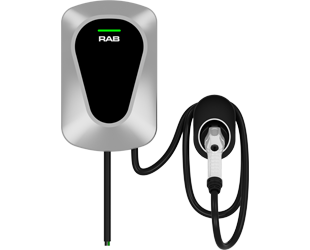

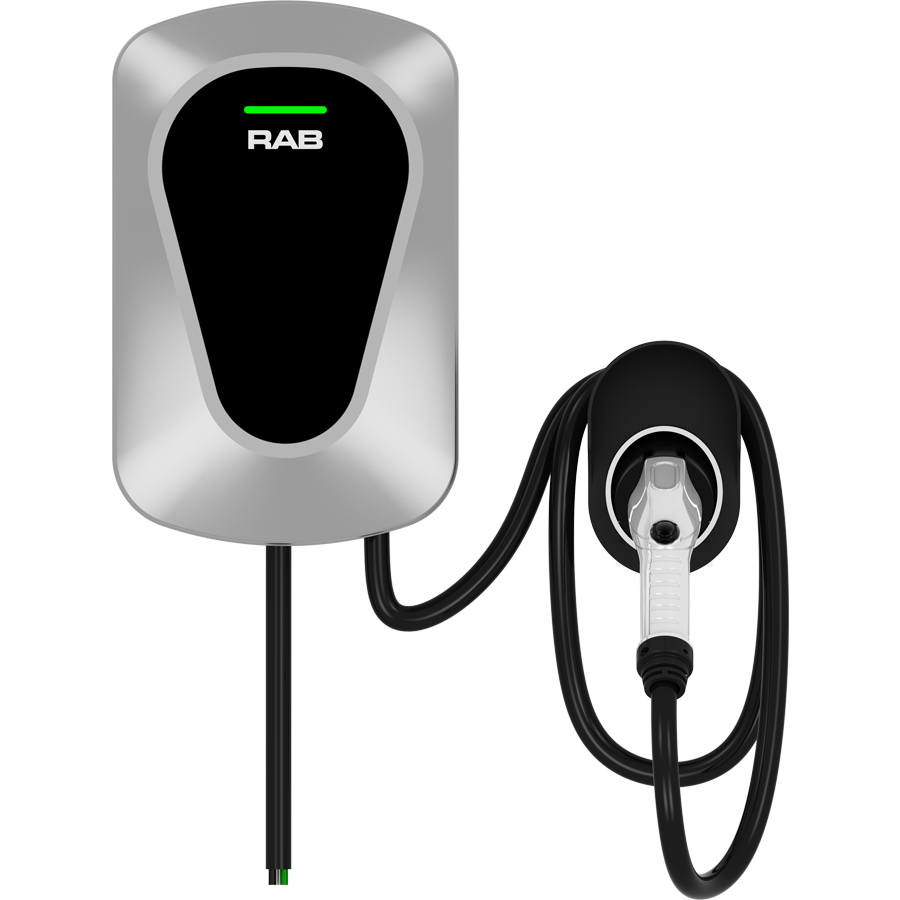

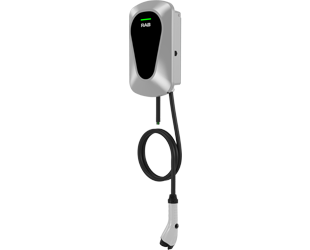

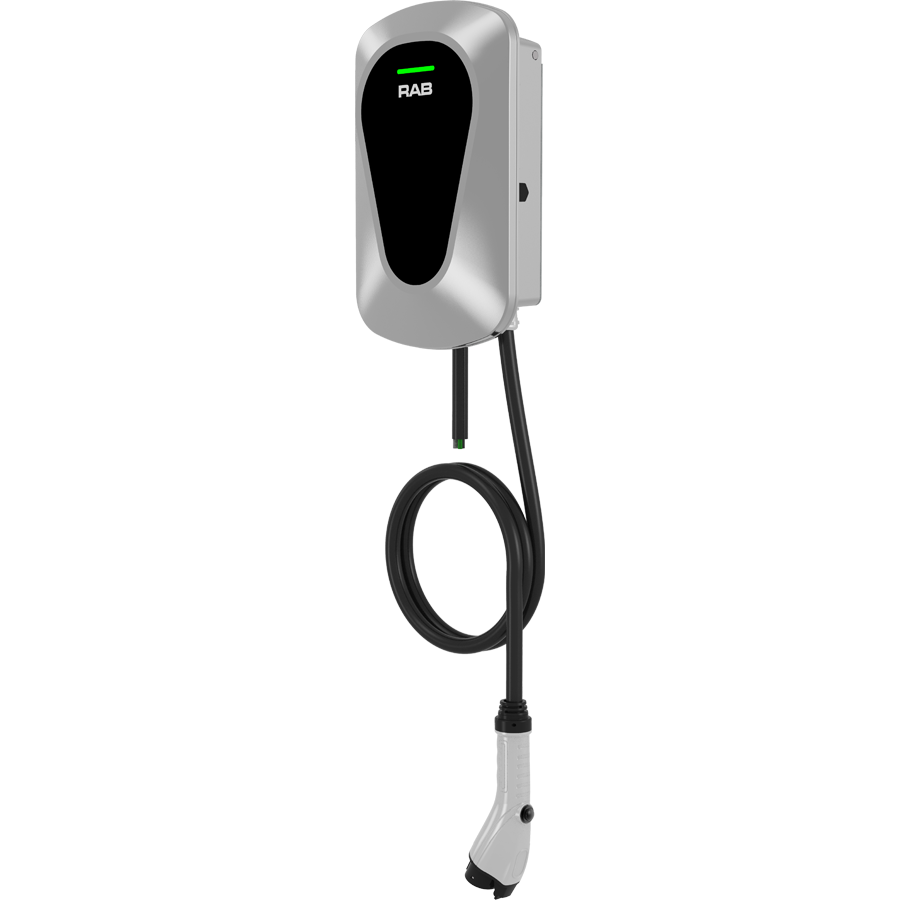

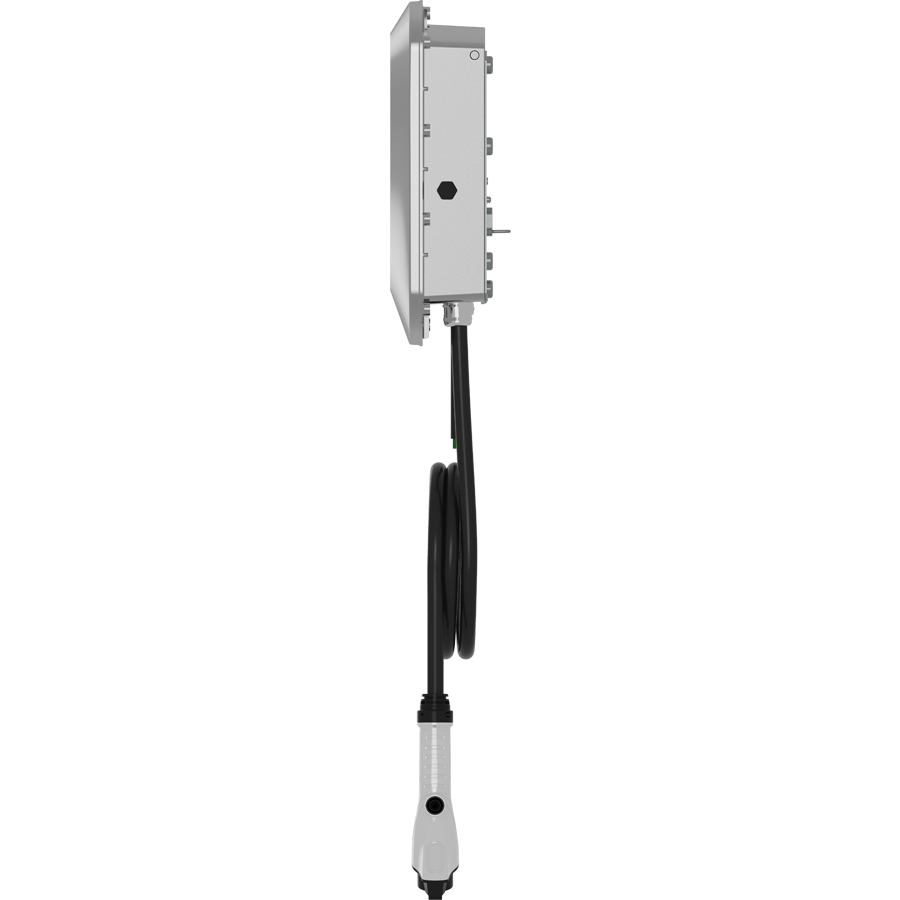

EVC48/ND
- Networked charger that can connect to the internet via 4G SIM, Ethernet, or Wifi
- OCPP Compliant which allows the charger to communicate to software management systems
- J1772 cord and plug which charges almost all EVs and PHEVs
- Authentication via QR code on charger or with RFID cards sold separately
- Qualifies for incentives; RAB lists its products on hundreds of different utility programs across the country
- Durable, quality design - Level 2 fast charger for residential and commercial use
- Many ways to mount: Pedestal, cable management, single, back-to-back, or side-to-side

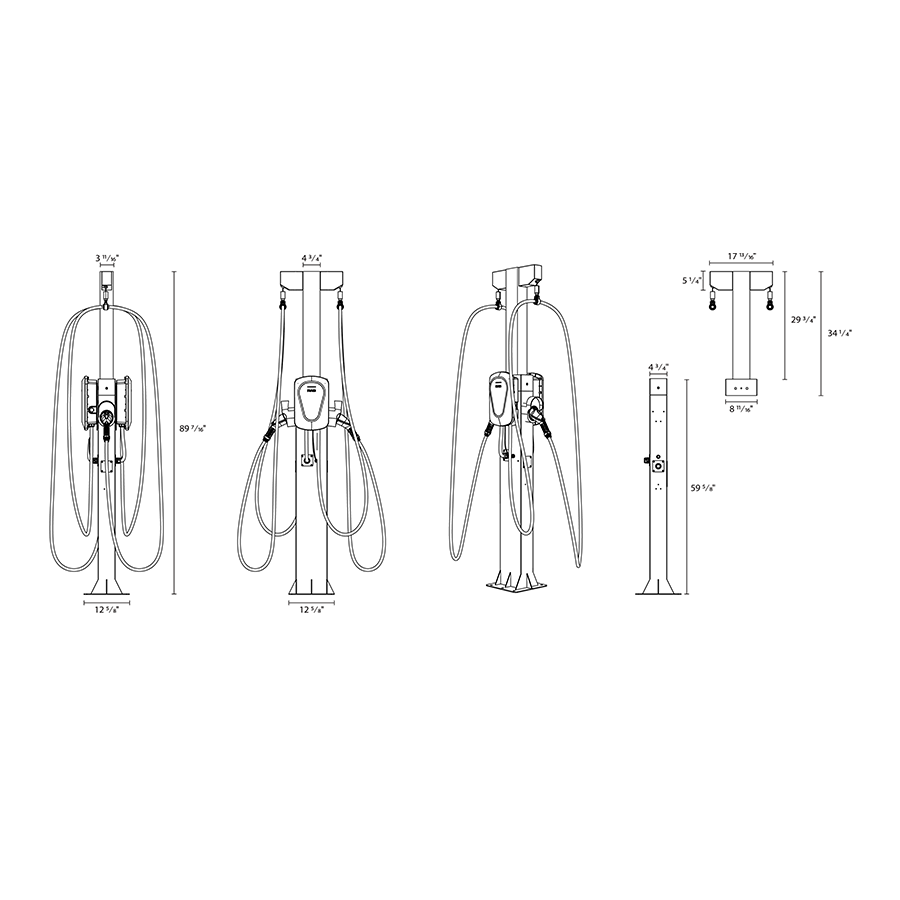

Dimensions
Weight: 14.3 lbs
Technical Specifications
Product Overview
Product Type
Level 2 EV Charger, 48A, Networked, without LCD Display
Description
48A / 11.5 kW residential/commercial charger: 4G networked, OCPP 1.6J protocol, 16.4' cord, configurable power, and ISO 15118 protocol
Application
Commercial & public use
Construction
Housing Material
Polycarbonate and tempered glass with gray & black finish
Cord & Nozzle
Single port, 18 ft cable with 6AWG guage. Comes with SAEJ1772 Type 1 nozzle
Display
No display with LED indicator light
Tamper Resistant
IK08 rated to protect the unit against external mechanical impacts (not rated for the LCD display screen or RFID)
Ingress Protection
IP65 and NEMA Type 4
Mounting
Charger & nozzle holder can be mounted directly to a wall or used with compatible pedestal (sold separately)
Electrical
Input Voltage
200-240V, Single Phase
Input Current
48A
Output Current
48A (max) (with AC breaker capacity selection)
Operating Frequency
50/60Hz
Connector Type
SAE J1772
Humidity
Max 90%
Input Side Protection
Protection against leakage, over-voltage,
over current, under-voltage,
short circuit, over-temperature
Output Side Protection
Protection against leakage, over-voltage, over current, under-voltage, automatic full
charge, control pilot fault, short circuit, over-temperature
Internal Protection
OTP, Relay Welding Detection, CCID Self-Test, MCU Function Fault Detection
Rating of Branch Circuit Breaker
60A
Performance
Output Power
11.5kW
Installation
Mounting Hardware Included
Yes
Other
Wiring
Hardwired
Input Wire Gauge
6 AWG
Compatible Accessories
EVP - Pedestal
EVM - Cable Management Add-On
EVR - Cable Management Retractor
EVPB - Side-By-Side Mounting Bracket
EVM - Cable Management Add-On
EVR - Cable Management Retractor
EVPB - Side-By-Side Mounting Bracket
3-Year Limited Warranty
Electric Vehicle Charger products will be free from defects in materials and workmanship for a period of (3) years from the date of original sale to RAB's distributor. The product shall be considered defective only if it cannot be brought back to service by assistance from RAB technical product support representative. If you have a technical issue or question regarding warranty, call our technical support team at RAB Help line. Exceptions apply as stated on product specification sheets incorporated herein by reference. Defects in material or workmanship do not include improper installation or operation, alterations, power surges or overheating due to external conditions. Defects caused by acts of vandalism and incidents beyond control of manufacturer resulting in inoperability of the electric vehicle charger are not covered by the material or workmanship warranty.
Software Plan Options
ChargeLab CSMS: 1-year, 3-year, 5-year; RAB Lightcloud Charge: Free (Wi-Fi); Lightcloud Charge Cellular: 1-year
Concierge Provisioning
RAB pre-provisions software and SIM card before shipment — installer powers on device, site is live immediately
Hardware Technical Support
RAB technical support included
Driver Support
24/7 telephone support for EV drivers
Network & Connectivity
Communication Protocol
OCPP 1.6 JSON
Connectivity Type
Ethernet + Wifi (IEEE 802.11 b/g/n) + 4G
CSMS Platform Compatibility
RAB Lightcloud Charge
Chargelab CSMS
Additional software options available upon request
Chargelab CSMS
Additional software options available upon request
Remote Monitoring
Yes
OTA Firmware Updates
Included
Load Management
No
Charging Performance
Authetification Methods
Plug-and-charge, mobile app, QR code, RFID
Energy Monitoring
Yes
Marketing Accuracy
Meter IC (1% accuracy)
Enviromental Ratings
Operating Temperature
-22°F to 131°F (-30°C to 55°C)
Humidity
Max 85%
UV Resistance
Material complies with UL 746C F1 requirements for UV and water exposure
Enclosure Rating
NEMA 4X
Altitude Rating
≤2000m
Safety & Compliance
Safety Listings
ETL Listed
UL Standards
UL 2594, UL 2231
Shock Protection
CCID20. A charging circuit interrupting device (CCID) automatically interrupts the circuit when the current reaches or exceeds the threshold current of 20mA.
OpenADR
No
IP Rating
Ingress protection rating of IP65 for dust and water
NEMA Rating
Type 4, weatherproof protection
EnergyStar
Yes
RoHS
Mercury and UV free. RoHS-compliant components.
FCC
Complies with Part 15 of the FCC Rules
