EXIT34-RG/E-B

Spec Sheet Instructions Family Spec Sheet Spec Sheet

EXIT34-RG/E-B

Universal Mounting and Double-face with interchangable red/green color letters

Injection-molded, engineering grade, 5VA flame retardant, high-impact resistant, thermoplastic in white housing finish

AC only , or 90 minutes of battery backup & Compatible with remote heads

Maximum 24 hours for full recharge time

Meets UL924, NFPA 101 Life Safety Code, NEC, OSHA,Local and State Codes. Compliant with California Title 20

View Technical Specs

View Price & Availability

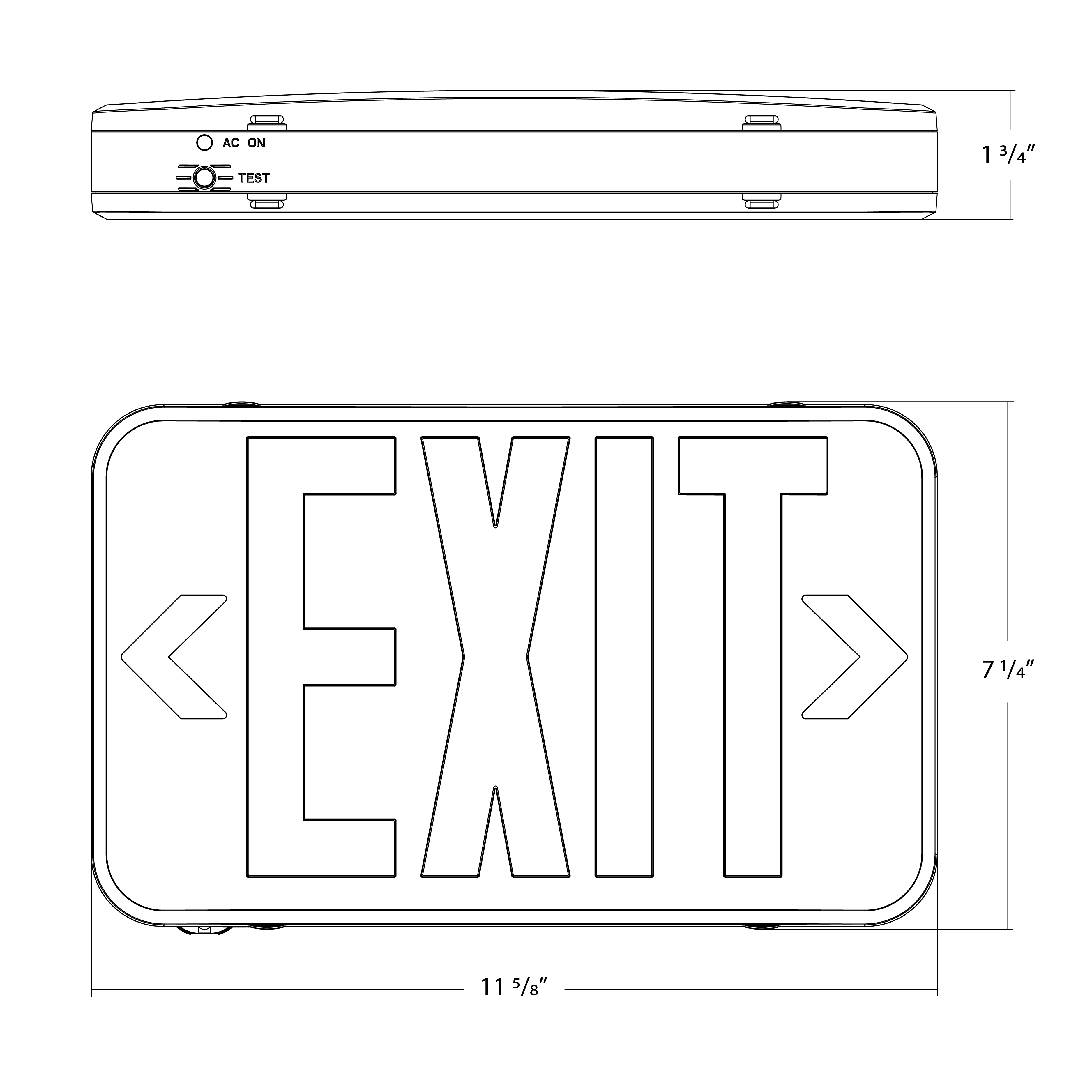

Dimensions

Weight: 3.2 lbs

Technical Specifications

Performance

Product Type

Color Switching, Thermoplastic Exit

Product Series

EXIT/EXIT34 Exit Sign

Description

Ultra-economy exit signs available field installed red or green letters and battery backup.

Construction

Housing Material

Injection-molded thermoplastic ABS housing, UL 94V-0 flame rating

Housing Finish

Black Housing

Lettering

Features 6" height letters with 3/4" stroke in both red and green colors.

Face Configuration

Supplied with two faces for single or double face installation

Arrow Configuration

Field-installable, removable chevron directional indicators for all configurations

Illumination Source

Long-life LEDs provide diffuse illumination of exit face

Electrical

Power Factor

0.4

Input Voltage (V)

120/277 Dual Voltage

Operating Frequency

50/60Hz

Input Current @ 120V (A)

0.02A

Input Current @ 277V (A)

0.01A

Operating Temperature

32°F to 104°F (0°C to 40°C)

Emergency Characteristics

Battery Backup

Yes

Emergency Illumination

90 minutes

Battery

Built-in 1.2V 1000mAh Ni-MH battery provides ≥90 minutes of backup power.

Recharge Time

Maximum 24 hours for full recharge time

Battery Operating Temperature

32°F to 122°F (0°C to 50°C)

Testing Method

Integrated Test Switch & Charge Indicator

Installation

Mounting

Universal J-Box Mounting Pattern

Application

Can be mounted on top, side or end mount

Compliance

Listings

UL924 Listed, NFPA 101 (current Life Safety Code), NEC and OSHA illumination standards

Environment

Suitable for use in dry and damp environments. Not suitable for applications with direct sunlight.

IP Rating

IP20

T20 Compliant

Can be used to conform with the requirements of California Title 20

California Title 24 JA8 Compliant

California Energy Commission (CEC) Status

Lawful for Sales in California

FCC

Complies with Part 15 of the FCC Rules

Other

3-Year, No-Compromise Warranty

RAB warrants that our LED products will be free from defects in materials and workmanship for a period of three (3) years from the date of delivery to the end user, including coverage of light output, color stability, driver performance and fixture finish. RAB's warranty is subject to all terms and conditions found at rablighting.com/warranty.
