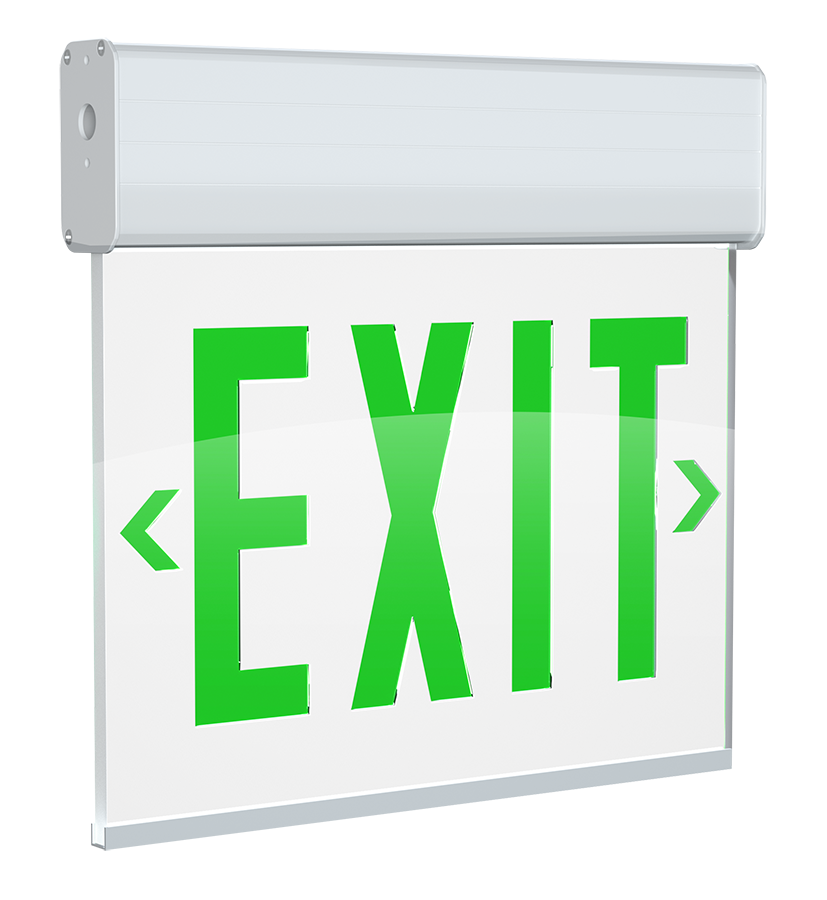

EXITEDGE-GWPW

Double-face panel with color letters

Modern edge-lit design

Compliant with California Title 20

View Technical Specs

View Price & Availability

Dimensions

Weight: 3.2 lbs

Technical Specifications

Performance

Product Type

Edge-lit Exit Sign

Description

Edge-lit exit sign with a double face and green letters.

Input Wattage

3.3W @120V and 277V

Electrical

Power Factor

≥0.9

Input Voltage

Dual 120/277 Voltage

Operating Frequency (Hz)

60Hz

Input Current @ 120V (mA)

31mA

Input Current @ 277V (mA)

15mA

Dual Voltage Circuit Operation

Operating Temperature

32°F to 122°F (0°C to 50°C)

Battery Backup

AC Only

Battery Operating Temperature

32°C to 122°C (0°F to 50°F)

Storage Temperature

68°F to 86°F (20°C to 30°C)

Self Diagnostics

No, manual test only

Remote Test Switch

Installation

Mounting Method

Back/Top/End

Mounting Type

Wall/Ceiling Mount

Cold Weather Rated

Construction

Shape

Rectangle

Housing Material

Aluminum

Panel Material

Acrylic

Panel Color

White

Letter Color

Green

Housing Color

White

Number of Faces

Double Face

Arrow Direction

No Arrow

Arrow Material

Adhesive (included)

Sign Format

Edge-lit

Remote Capacity

Compliance

Listings

UL924 Listed, NFPA 101 (current Life Safety Code), NEC and OSHA illumination standards

Environment

Suitable for indoor use in dry and damp environments

IP Rating

Indoor

Certification Model Number

ELXTEU2GWW

T20 Compliant

Can be used to conform with the requirements of California Title 20

California Title 24 JA8 Compliant

Not applicable

California Energy Commission (CEC) Status

Lawful for Sales in California

FCC

Complies with Part 15 of the FCC Rules

Other

Warranty

RAB warrants that our LED products will be free from defects in materials and workmanship for a period of five (5) years from the date of delivery to the end user, including coverage of light output, color stability, driver performance and fixture finish. RAB's warranty is subject to all terms and conditions found at rablighting.com/warranty.

Note

All values are typical (tolerance +/- 10%)

Buy American Act Compliance

RAB values USA manufacturing! Upon request, RAB may be able to manufacture this product to be compliant with the Buy American Act (BAA). Please contact customer service to request a quote for the product to be made BAA compliant.
