• Single-face panel with red letters
  • Modern edge-lit design
  • Approved for use in the city of Chicago
  • Compliant with California Title 20
View Technical Specs
Dimensions
Link to Dimension Drawing

Weight: 6.8 lbs

Technical Specifications
Performance
Product Type

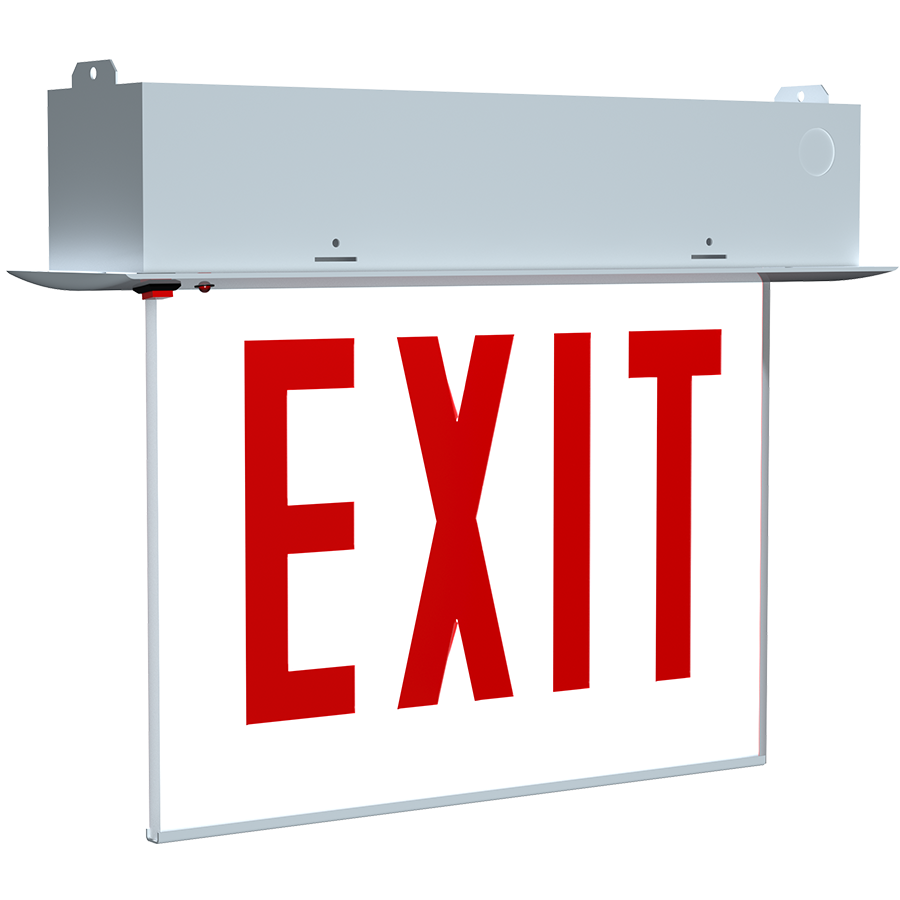

Chicago-Approved Edge-Lit Exit Sign
Description
Chicago-approved edge-lit exit sign with a single face, red letters, and 90 minutes of emergency battery backup.
Input Power
4.5W@120V 4.9W@277V
Electrical
Power Factor
≥0.9
Input Voltage
Dual 120/277 Voltage
Operating Frequency (Hz)
60Hz
Input Current @ 120V (mA)
42mA
Input Current @ 277V (mA)
20mA
Dual Voltage Circuit Operation
No
Operating Temperature
32°F to 122°F (0°C to 50°C)
Emergency Illumination
120 minutes
Battery Type
Nickel Cadmium
Battery Voltage
4.8V
Recharge Time Required
24-hours
Battery Operating Temperature
0°F to 50°F (32°C to 122°C)
Storage Temperature
68°F to 86°F (20°C to 30°C)
Storage Shelf Life
3 years before the initial charge. 5 years after initial charge.
Self Diagnostics
No, manual test only
Remote Test Switch
No
Emergency Backup
Battery Backup
Yes
Installation
Mounting Method
Top
Mounting Type
Recessed Ceiling Mount
Cold Weather Rated
No
Construction
Shape
Rectangle
Housing Material
Aluminum
Panel Material
Acrylic
Panel Color
White
Letter Color
Red
Housing Color
White
Number of Faces
Single Face
Arrow Direction
No Arrow
Arrow Material
Screen Print
Sign Format
Edge-lit
Remote Capacity
No
Compliance
Listings
UL924 Listed, NFPA 101 (current Life Safety Code), NEC and OSHA illumination standards
Environment
Suitable for indoor use in dry and damp environments
IP Rating
Indoor
Certification Model Number
CARELZXTE1RWWEM-NA
T20 Compliant
Can be used to conform with the requirements of California Title 20
California Title 24 JA8 Compliant
Not applicable
California Energy Commission (CEC) Status
Lawful for Sales in California
City Compliance
Chicago Approved
FCC
Complies with Part 15 of the FCC Rules
Other
5-Year, No-Compromise Warranty
RAB warrants that our LED products will be free from defects in materials and workmanship for a period of five (5) years from the date of delivery to the end user, including coverage of light output, color stability, driver performance and fixture finish. RAB's warranty is subject to all terms and conditions found at rablighting.com/warranty.
Battery is prorated.

Recently Viewed Products

 This is a link to the product RDLED4R20D-WYHC-M-S RDLED4R20D-WYHC-M-S
Remodeler 4" Round 20W Dim Wallwash 3000K 90 Cri Matte Cone Sil Ring
 This is a link to the product A17-4T240N/480/MVS A17-4T240N/480/MVS
Arealights 34255.7 Lumens A17 Type Iv 240W 4000K 480V Pole Mount Microwave Occupancy Sensor Bronze
 This is a link to the product HALV10L940-CW-A/BL/E2 HALV10L940-CW-A/BL/E2
Architectural 372 Lumens Halv Forward Light 14W 90Cri 4000K Crushed Polar White Antique Bronze Finish Bi-Level Control Battery Backup
 This is a link to the product IVGT5C-50L730WU/WS2/E2 IVGT5C-50L730WU/WS2/E2
Garage Lights 5416 Lumens Ivgt5C Type V 45W 70Cri 3000K White 120V-277V 0-10V Dimming 20 Feet Lens Wattstopper Sensor Battery Backup
 This is a link to the product HALV18L927-TL-A/LC/E2 HALV18L927-TL-A/LC/E2
Architectural 368 Lumens Halv Forward Light 25W 90Cri 2700K Toffee Leaves Lens Antique Bronze Finish Lightcloud Controller Battery Backup

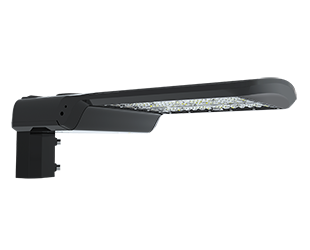

 This is a link to the product ALED3T125SFNRG/480/7PR ALED3T125SFNRG/480/7PR
