• Accessory reflectors and exit signs available
  • Cast aluminum junction box also serves as a hanger box for pendant fixtures
  • Heavy gauge die formed aluminum
  • Reflectors with white polyester powder finish
View Technical Specs

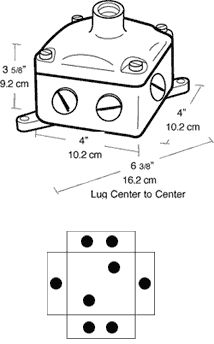

Dimensions
Link to Dimension Drawing

Weight: 3.0 lbs

Technical Specifications
Construction
Box Construction
Heavy wall castings. Precision machined surfaces. Four 1/4-20 screws fasten top to box.
Box Capacity
20 cubic inches
Finish
Polyester powder coating
Hub Size
1/2" side hubs, 8 hole position
Cover Tap
1/2"
Electrical
Close-up Plugs
Aluminum slotted plugs with 6 full threads. One provided for each box hole.
