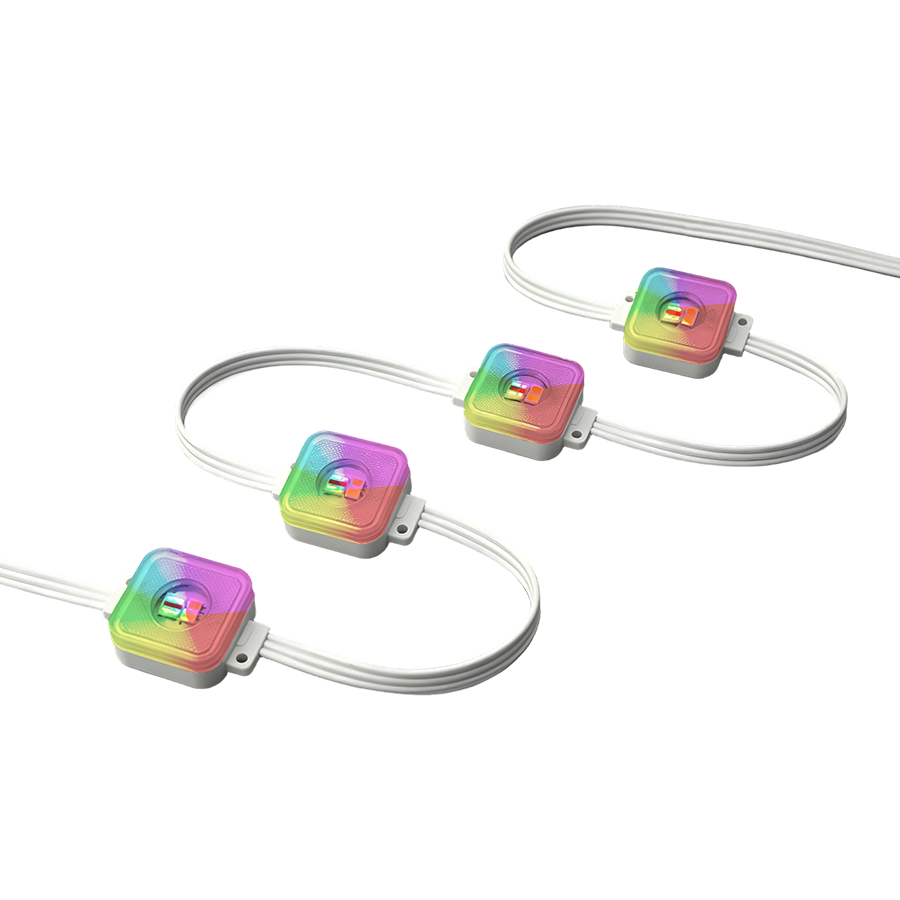

EXT-VBE/RGB
EXT-VBE/RGB
- 25 ft Extension for VBE/RGB, 120-277V
- Use the mobile app to configure segment lengths
- Wireless Bluetooth Mesh control using Lightcloud Blue
- Simple plug-and-play installation, no wiring required
- Easily extend existing VIBE Permanent Outdoor Lights
Performance
| Watts | 9W |
| Color Temp | "Default: 3000K<br> Adjustable using the Lightcloud Blue mobile app<br> Tunable White 2200 - 6500K" |
| Lumens | 45 lm/lamp lm |
| Efficacy | |
| Color Accuracy | |
| L70 Lifespan | 50,000 Hours |
| Type | |
| 120V | |
| 208V | |
| 240V | |
| 277V | |
| Input Watts |
Technical Specifications
Lightcloud
Lightcloud Blue
Lightcloud Blue is a Bluetooth® Mesh lighting control system designed for fast setup and flexibility. Install quickly with no gateways, hubs, or additional control wiring. Start with a single device and easily scale to control entire buildings.
Learn more at rablighting.com/lcb.
DLC system - N1XMLOEATBA (Interior); NHCZ2BIA17L (Exterior)
Learn more at rablighting.com/lcb.
DLC system - N1XMLOEATBA (Interior); NHCZ2BIA17L (Exterior)
Gateway Required
Yes, connects to Lightcloud Gateway and other Lightcloud devices
Communication Protocol
Bluetooth Mesh
SmartShift
SmartShift-ready to easily configure lighting profiles to automatically adjust brightness and color temperature for circadian and aesthetic needs.
Light Shows
Dynamic RGB light shows with customizable effects and color sequences using the Lightcloud Blue mobile app.
Remote Control Access
Yes, with additional devices, sold separately.
Range
Up to 200 feet clear line of sight; Up to 120 feet around corners
Spacing Criteria
Lightcloud Blue devices should be placed within the specified range to communicate within the Bluetooth Mesh network. Building materials such as brick, concrete, and steel construction or heavy vegetation, bushes or trees may require additional Lightcloud Blue devices to extend around an obstruction.
Performance
Product Type
RGBW Permanent Eaves Lights, Extension
Input Wattage
9W
Lumens (Nominal)
45lm/lamp
L70 Lifespan
50,000-Hour LED lifespan based on IES LM-70 results
Construction
Package Includes
25 ft RGBW String, extension
Length
25 ft
Lamps per String
18
Finish
White
Enclosure Material
PVC
Lens Finish
Clear
Electrical
Driver
Constant Voltage, Class 2 120-277V 50/60 Hz; 120V: 150mA; 208V: 90mA; 240V: 75mA; 277V: 66mA
Power Factor
0.5
Dimmable
Yes, using Lightcloud Blue. This product will not operate properly when connected to a standard (incandescent) dimmer or dimming control.
Input Voltage
120-277V
Operating Temperature
-20°C to 45°C (-4°F to 113°F)
LED Characteristics
Beam Angle
120°
Color Temperature
Default: 3000K
Adjustable using the Lightcloud Blue mobile app
Tunable White 2200 - 6500K
Adjustable using the Lightcloud Blue mobile app
Tunable White 2200 - 6500K
Color Tuning
Yes, 16+ million colors using the Lightcloud Blue mobile app
Color Accuracy (CRI)
>80 CRI
Natural Spectrum
No
R9 Value
High color performance with R9 greater than 0
Color Consistency
<6-step MacAdam Ellipse binning to achieve consistent fixture-to-fixture color
Installation
Mounting
Plugs into a standard 15A 125V duplex receptacle
Base Type
NEMA 1-15, 2-prong plug
Replaceable Bulbs
No
Linkable
Yes, using EXT-VBE/RGB, sold separately
Cable
UL2464 22AWG 3/C
Compliance
ETL Listed
This product has been tested by Intertek and found in compliance with accepted national standards.
Environment
Suitable for use indoors and outdoors in dry, damp, or wet environments.
IP Rating
IP65
Certification Model Number
EXT-VBE/RGB
California Title 20 Compliant
No
California Title 24 JA8 Compliant
No
California Energy Commission (CEC) Status
Lawful for Sales in California
RoHS
Mercury and UV free. RoHS-compliant components.
FCC
Complies with Part 15 of the FCC Rules
Other
Compatible Products
VBE/RGB
150 ft RGB Permanent eaves lights
150 ft RGB Permanent eaves lights
3-Year Limited Warranty
The RAB 3-year, limited warranty covers light output, driver performance and paint finish. RAB's warranty is subject to all terms and conditions found at rablighting.com/warranty
