EZPAN2X2-30YN/D10/E2
EZPAN2X2-30YN/D10/E2
- Perfect for shallow plenums
- Even and diffuse ambient illumination, ideal for spaces where glare-free lighting is required
- 0-10V dimmable driver, standard
Performance
| Watts | 30W |
| Color Temp | 3500K (Warm Neutral) |
| Lumens | 3,728 lm |
| Efficacy | 118.9 |
| Color Accuracy | 84 CRI |
| L70 Lifespan | 60,000 Hours |
| Type | Constant Current |
| 120V | 0.25A |
| 208V | 0.20A |
| 240V | 0.13A |
| 277V | 0.12A |
| Input Watts | 31.3W |

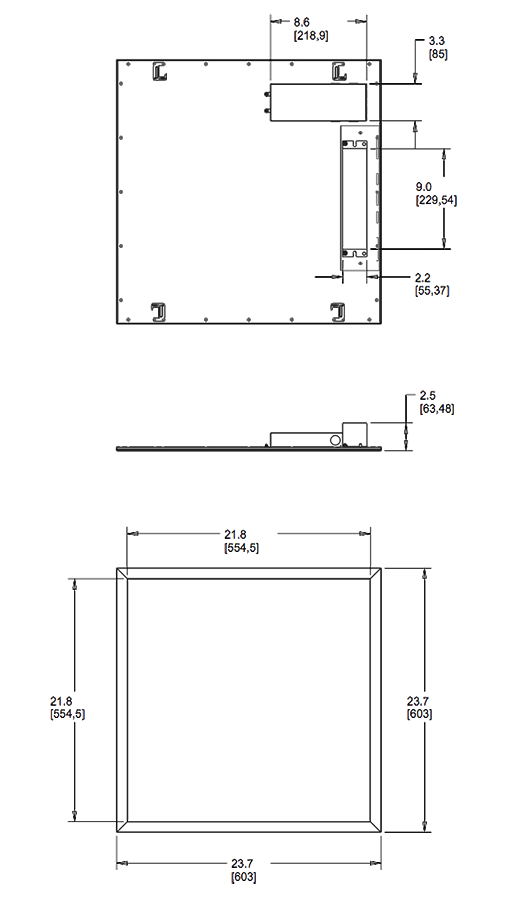

Dimensions
Weight: 11.4 lbs
Technical Specifications
Compliance
UL Listed
Suitable for damp locations
CCEA Compliant
Luminaire Requirements used in Environmental Air Space per the electrical code specification of the City of Chicago
IESNA LM-79 & LM-80 Testing
RAB LED luminaires and LED components have been tested by an independent laboratory in accordance with IESNA LM-79 and LM-80.
Trade Agreements Act Compliant
This product is a product of Cambodia and a "designated country" end product that complies with the Trade Agreements Act
DLC Listed
This product is on the Design Lights Consortium (DLC) Qualified Products List and is eligible for rebates from DLC Member Utilities. Designed to meet DLC 5.1 requirements.
DLC Product Code: P9AWC2E4
DLC Product Code: P9AWC2E4
Other
Note
All values are typical (tolerance +/- 10%)
Warranty
RAB warrants that our LED products will be free from defects in materials and workmanship for a period of five (5) years from the date of delivery to the end user, including coverage of light output, color stability, driver performance and fixture finish. RAB's warranty is subject to all terms and conditions found at rablighting.com/warranty.
Buy American Act Compliance
RAB values USA manufacturing! Upon request, RAB may be able to manufacture this product to be compliant with the Buy American Act (BAA). Please contact customer service to request a quote for the product to be made BAA compliant.
Performance
Lifespan
60,000-Hour LED lifespan based on IES LM-80 results and TM-21 calculations
Wattage Equivalency
Equivalent to (4)F32T8 or (4)F28T5
Electrical
Driver
Constant Current, Class 2, 50/60 Hz, 120-277V, 120V: 0.25A, 208V: 0.20A, 240V: 0.13A, 277V: 0.12A
Dimming Driver
Driver includes dimming control wiring for 0-10V dimming systems. Requires separate 0-10V DC dimming circuit. Dims down to 10%.
THD
7.84% at 120V, 8.72% at 277V
Power Factor
99% at 120V, 91.3% at 277V
Battery Backup
Battery backup will operate the fixture for 90 minutes if power fails. Wired for 120-277V.
Battery Backup Light Loss Factor
0.43
Construction
IC Rated
Suitable for insulated ceilings
Maximum Ambient Temperature
Suitable for use in up to -30°C (-22°F) to 50°C(122°F)
Lens
Frosted polystyrene
Mounting
Recessed ceiling
Housing
Lightweight aluminum housing, steel pan and junction box
Installation
Standard integral T-bar clips secure the fixture to T-bars and prevent T-system separation
Finish
Formulated for high durability and long-lasting color
Green Technology
Mercury and UV free. RoHS-compliant components.
LED Characteristics
LEDs
Long-life, high-efficacy, surface-mount LEDs
