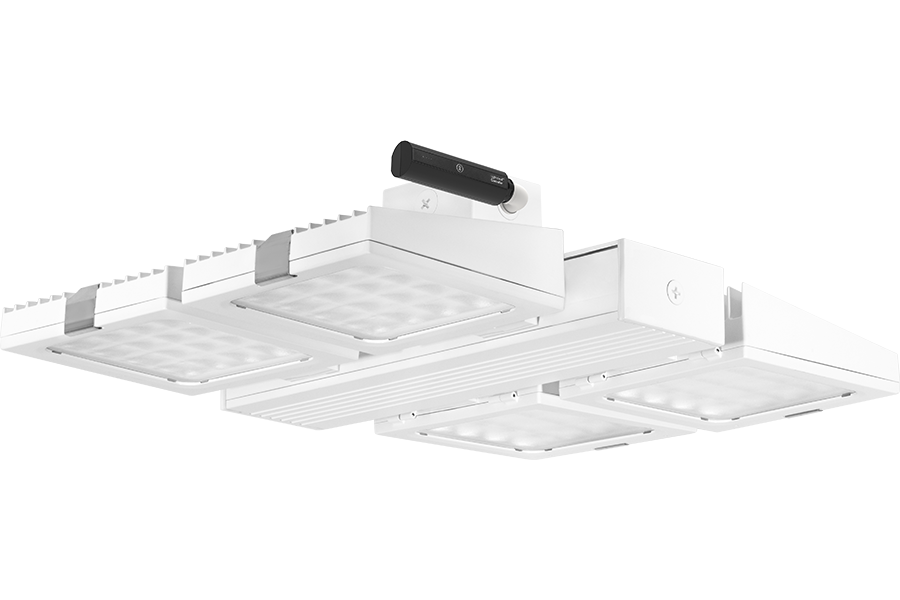

• High-output, high performance industrial high bay
  • High ambient temperature rating of 55°C
  • Diffusion lens reduces glare
  • Multiple mounting options: pendant, surface or chain
  • 100,000-Hour LED lifespan
  • 5-Year, No-Compromise Fixture Warranty and 10-Year, No-Compromise Lightcloud Warranty
  • Built in support Lightcloud™
  • Easy setup - simply power on, confirm device connectivity and call 844-LIGHTCLOUD
View Technical Specs
Performance
Watts 160W
Color Temp 4000K (Neutral)
Lumens 13,684 lm
Efficacy 86.4 lm/W
Color Accuracy 74 CRI
L70 Lifespan 100,000 Hours
Type Constant Current
120V 1.32A
208V 0.80A
240V 0.69A
277V 0.58A
Input Watts 158.3W
Dimensions
Link to Dimension Drawing

Weight: 41.5 lbs

Technical Specifications

Installed with Lightcloud

Lightcloud is a commercial wireless lighting control system fully developed and supported by RAB. It's powerful and flexible, yet easy to use and install.

Learn More
Lightcloud
Lightcloud Controller Installed
Fixture, Zone, and plug-load control from one powerful device. Capable of switching, 0-10V dimming, power monitoring. Can also be used to extend the range of the Lightcloud mesh network. Attach to fixture, junction box, or electrical panel. Learn more at www.lightcloud.com
Compliance
UL Listed
Suitable for wet locations
Optical
Optics
120° downlight
Construction
Cold Weather Starting
The minimum starting temperature is -40°F (-40°C)
Electrical
Driver
Constant Current, Class 2, 100-277V, 50-60Hz, 120V: 1.32A, 208V: 0.80A, 240V: 0.69A, 277V: 0.58A, 4kV surge protection
THD
3.0% at 120V, 8.2% at 277V
Power Factor
99.9% at 120V, 95.4% at 277V
