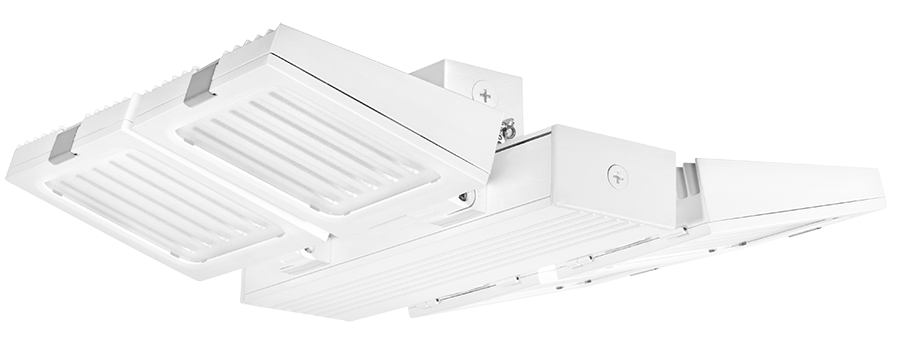

• High-output, high performance industrial high bay
  • High ambient temperature rating of 55°C
  • Diffusion lens reduces glare
  • Multiple mounting options: pendant, surface or chain
  • 100,000-Hour LED lifespan
  • 5-Year, No-Compromise Warranty
View Technical Specs
Performance
Watts 230W
Color Temp 3000K (Warm)
Lumens 16,727 lm
Efficacy 68.7 lm/W
Color Accuracy 80 CRI
L70 Lifespan 100,000 Hours
Type Constant Current
120V 1.99A
208V 1.21A
240V 1.05A
277V 0.88A
Input Watts 243.6W
Dimensions
Link to Dimension Drawing

Weight: 41.2 lbs

Technical Specifications
Compliance
UL Listed
Suitable for wet locations
Construction
Cold Weather Starting
The minimum starting temperature is -40°F (-40°C)
Ambient Temperature
Suitable for use in up to 131°F (55°C)
Thermal Management
Superior thermal management with external "Air-Flow" fins
Electrical
Drivers
Constant Current, Class 2, 100-277V, 50/60 Hz, 120V: 1.99A, 208V: 1.2A, 240V: 1.04A, 277V: 0.88A, 4kV surge protection
THD
3.9% at 120V, 8.7% at 277V
Power Factor
99.7% at 120V, 95.3% at 277V
