FALCORA80NW/D10/LCS
FALCORA80NW/D10/LCS
- High-output, high performance industrial high bay
- High ambient temperature rating of 55°C
- Diffusion lens reduces glare
- Multiple mounting options: pendant, surface or chain
- 100,000-Hour LED lifespan
- 5-Year, No-Compromise Fixture Warranty and 10-Year, No-Compromise Lightcloud Warranty
- Built in support Lightcloud™
- Easy setup - simply power on, confirm device connectivity and call 844-LIGHTCLOUD
Performance
| Watts | 80W |
| Color Temp | 4000K (Neutral) |
| Lumens | 6,486 lm |
| Efficacy | 79.7 lm/W |
| Color Accuracy | 75 CRI |
| L70 Lifespan | 100,000 Hours |
| Type | Constant Current |
| 120V | 0.68A |
| 208V | 0.42A |
| 240V | 0.36A |
| 277V | 0.30A |
| Input Watts | 81.4W |

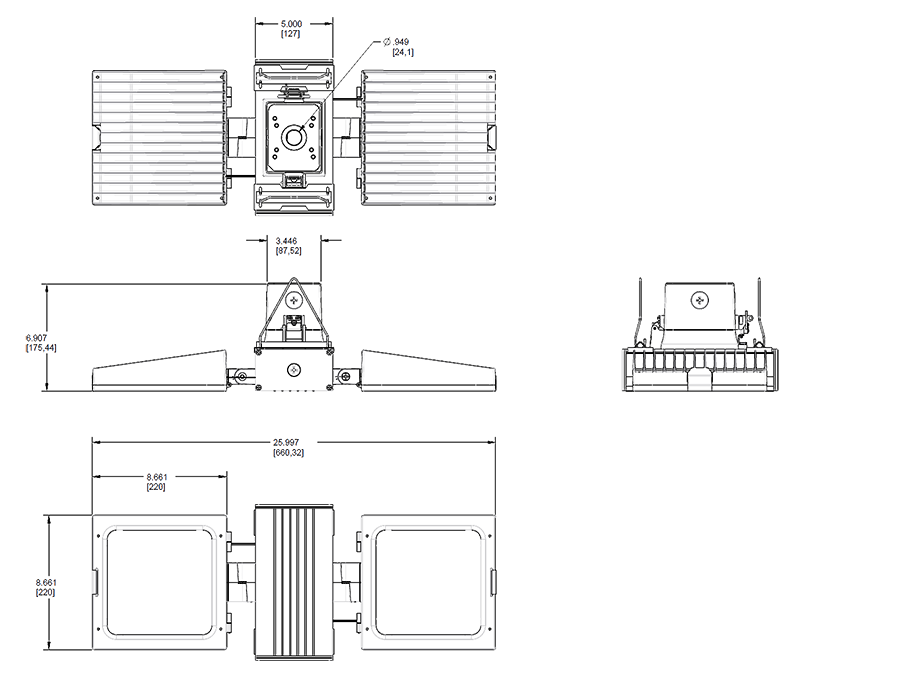

Dimensions
Weight: 24.1 lbs
Technical Specifications
Installed with Lightcloud
Lightcloud is a commercial wireless lighting control system fully developed and supported by RAB. It's powerful and flexible, yet easy to use and install.
Learn MoreLightcloud
Lightcloud Sensor Installed
Occupancy, vacancy, and closed-loop daylight harvesting in one versatile sensor. Control any fixture in your Lightcloud system. Learn more at www.lightcloud.com *Optimal detection performance rated for up to 45 ft
Compliance
UL Listed
Suitable for wet locations
Construction
Cold Weather Starting
The minimum starting temperature is -40°F (-40°C)
Electrical
Driver
Constant Current, Class 2, 100-277VAC, 50-60Hz, 120V: 0.68A, 208V: 0.42A, 240V: 0.36A, 277V: 0.30A, 4kV surge protection
THD
4.6% at 120V, 9.7% at 277V
Power Factor
99.6% at 120V, 94.9% at 277V
