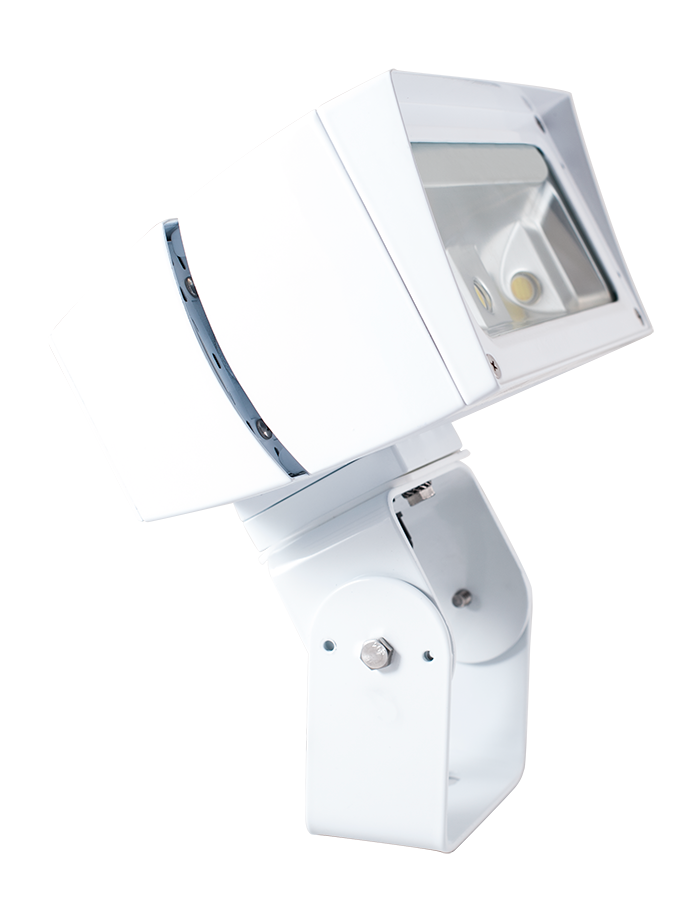

FFLED80TNB55W/PCU
FFLED80TNB55W/PCU
- Ultra-efficient LED and optical design
- Replaces 250W MH floodlights
- 100,000-hour life based on LM-80 results and TM-21 calculations
- "Air-Flow" technology heatsink
- 5-Year, No-Compromise Warranty
Performance
| Watts | 80W |
| Color Temp | |
| Lumens | 9,116 lm |
| Efficacy | 107 lm/W |
| Color Accuracy | |
| L70 Lifespan |
| Type | Constant Current |
| 120V | 0.74A |
| 208V | 0.48A |
| 240V | 0.41A |
| 277V | 0.36A |
| Input Watts | 85.2W |
Dimensions
Weight: 14.8 lbs
Technical Specifications
Compliance
UL Listed
Suitable for wet locations. Suitable for ground mounting.
IP Rating
Ingress protection rating of IP66 for dust and water
IESNA LM-79 & LM-80 Testing
RAB LED luminaires and LED components have been tested by an independent laboratory in accordance with IESNA LM-79 and LM-80.
LED Characteristics
LEDs
Multi-chip, high-output, long-life LEDs
Color Consistency
3-step MacAdam Ellipse binning to achieve consistent fixture-to-fixture color
Color Stability
LED color temperature is warrantied to shift no more than 200K in color temperature over a 5-year period
Color Uniformity
RAB's range of Correlated Color Temperature follows the guidelines of the American National Standard for (SSL) Products, ANSI C78.377-2017.
Performance
Lifespan
100,000-Hour LED lifespan based on IES LM-80 results and TM-21 calculations
Wattage Equivalency
Equivalent to 250W Metal Halide
Optical
NEMA Type
NEMA Beam Spread 5H x 5V
Construction
Ambient Temperature
Suitable for use in up to 104°F (40°C)
Cold Weather Starting
The minimum starting temperature is -40°F (-40°C)
Thermal Management Housing
Superior heat sinking with external Air-Flow fins
Housing
Die-cast aluminum housing, lens frame and mounting arm
Threaded Size
1/2" threaded arm
Effective Projected Area
EPA = 0.65
Reflector
Specular polycarbonate
Gaskets
High-temperature silicone gaskets
Finish
Formulated for high durability and long-lasting color
Green Technology
Mercury and UV free. RoHS-compliant components.
Electrical
Driver
Constant Current, Class 2, 100-277V, 50/60 Hz, 6 kV surge protection,
120V: 074 A, 208V: 048 A, 240V: 041 A, 277V: 036 A
THD
7.13% at 120V, 6.44% at 277V
Power Factor
99.7% at 120V, 94.5% at 277V
Photocell
120V Button photocell included. Photocell is only compatible with 120V.
Installation
Mounting
Heavy-duty Trunnion mount with stainless steel hardware
Other
5-Year, No-Compromise Warranty
RAB warrants that our LED products will be free from defects in materials and workmanship for a period of five (5) years from the date of delivery to the end user, including coverage of light output, color stability, driver performance and fixture finish. RAB's warranty is subject to all terms and conditions found at rablighting.com/warranty.
Patents
The FFLED design is protected by U.S. Pat. D643,147, Canada Pat. 140798, China Pat. ZL201130171304.1, Mexico Pat. 36757 and pending patent in Taiwan.
