FGIMBAL4

5 color temperatures in 1 SKU (2700K, 3000K, 3500K, 4000K, 5000K)

No recessed housing or j-box required

Tested to UL 263 and ASTM E119 standards for 2-hour fire resistance.

TRIAC/ELV dimming (see Dimmer Compatibility List)

Spring-loaded retention clips

New construction or retrofit applications

50,000-Hour lifespan

View Technical Specs

View Price & Availability

Performance

Watts	9W
Color Temp	2700/3000/3500/4000/5000K
Lumens	750 lm
Efficacy	83
Color Accuracy	>90 CRI
L70 Lifespan	50,000 Hours

Type	Constant Current, Class 2
120V	0.09A
208V
240V
277V
Input Watts	9W

EZ-Layout

Create Custom Lighting Layout

Dimensions

Weight: 1.1 lbs

Technical Specifications

Performance

Product Type

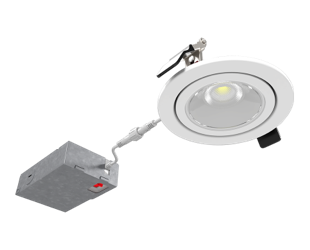

Fire Resistant Gimbal Downlight

Description

Fire-resistant gimbal downlight available in 4" and 6" models with 5 selectable color temperatures. The remote driver makes these ideal for new construction and retrofit applications.

Wattage Equivalency

60W Incandescent

Input Wattage

Lumens

750lm

Efficacy

83lm/W

Measured Lumens

2700K @ 693lm; 3000K @ 714lm; 3500K @ 757lm; 4000K @ 780lm; 5000K @ 784lm

L70 Lifespan

50,000-Hour LED lifespan based on IES LM-70 results

Electrical

Driver

Constant Current, Class 2

THD

≤20%

Power Factor

≥0.9

Dimmable

Yes, dimmable down to 10% on compatible TRIAC/ELV dimming systems. See Dimmer Compatibility List.

Input Voltage

120V

Operating Frequency

60 Hz

Input Current @ 120V (mA)

90mA

Operating Temperature

-4°F to 104°F (-20°C to 40°C)

Flicker

LED Characteristics

Beam Angle

40°

Tilt

90°

Color Temperature

Field adjustable via dip switch 2700/3000/3500/4000/5000K

Color Accuracy (CRI)

>90 CRI

R9 Value

High color performance with R9 greater than 50

Color Consistency

<7- (30/35/40K); <4- (27/50K) step MacAdam Ellipse binning to achieve consistent fixture-to-fixture color

Color Stability

LED color temperature is warrantied to shift no more than 200K in color temperature over a 5-year period

Color Uniformity

RAB's range of Correlated Color Temperature follows the guidelines of the American National Standard for Specifications for the Chromaticity of Solid State Lighting (SSL) Products, ANSI C78.377-2017.

Installation

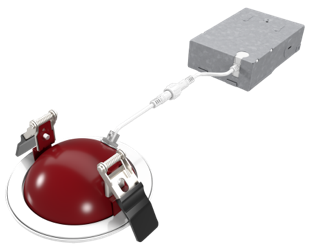

Remote Driver/Junction Box

Die formed metal driver / junction box with captive hinged junction box cover. Listed for Maximum of (4) 12AWG through branch circuit conductor suitable for 90°C permitted in box. Easy to wire in 2in/2out (plus ground) applications. (4) conduit pry-outs. (3) quick snap-in connectors for quick and reliable line voltage connections. Integral mounting facilitates direct mounting to building structure or mounting frame.

Mounting

Recessed

Construction

Size

Shape

Round

Finish

White+Red

Enclosure Material

Metal

Trim Style

Smooth

Lens Finish

Frosted

Lens

Single optic and full face lens for precise beam angle control

Compliance

Listings

UL Listed

Environment

Suitable for use indoors and outdoors in dry, damp, or wet environments.

IC Rated

Suitable for direct contact with insulation.
Type IC inherently protected, suitable for direct contact to air permeable insulation and cULus listed for damp locations. Not for use in direct contact with spray foam insulation, consult NEMA LSD57-2013.

Air Tight

Housing certified Air Tight as per ASTM E283

Energy Star Approved

This product is ENERGY STAR® Certified.

DLC Listed

California Title 24 JA8 Compliant

Can be used to conform with the requirements of California Title 24 Part 6

California Energy Commission (CEC) Status

Lawful for Sales in California

NEC Compliant

Suitable for use in closets. Compliant with NEC Sec. 410.16 (A)(1) and 410.16 (C3).

IESNA LM-79 & LM-80 Testing

RAB LED luminaires and LED components have been tested by an independent laboratory in accordance with IESNA LM-79 and LM-80.

RoHS

Mercury and UV free. RoHS-compliant components.

FCC

Complies with Part 15 of the FCC Rules

Trade Agreements Act Compliant

This product is a product of Cambodia and a "designated country" end product that complies with the Trade Agreements Act

Other

Compatible Accessories

EXTCBL-FA-6
6' Extension cabler

EXTCBL-FA-12
12' Extension cable

EXTCBL-FA-20
20' Extension cable
DRI-EMB-15S-LV
2-n-1 Driver + Battery Backup

Warranty

RAB warrants that our LED products will be free from defects in materials and workmanship for a period of five (5) years from the date of delivery to the end user, including coverage of light output, color stability, driver performance and fixture finish. RAB's warranty is subject to all terms and conditions found at rablighting.com/warranty.
